Brake Rotor/Disc: Service and Repair

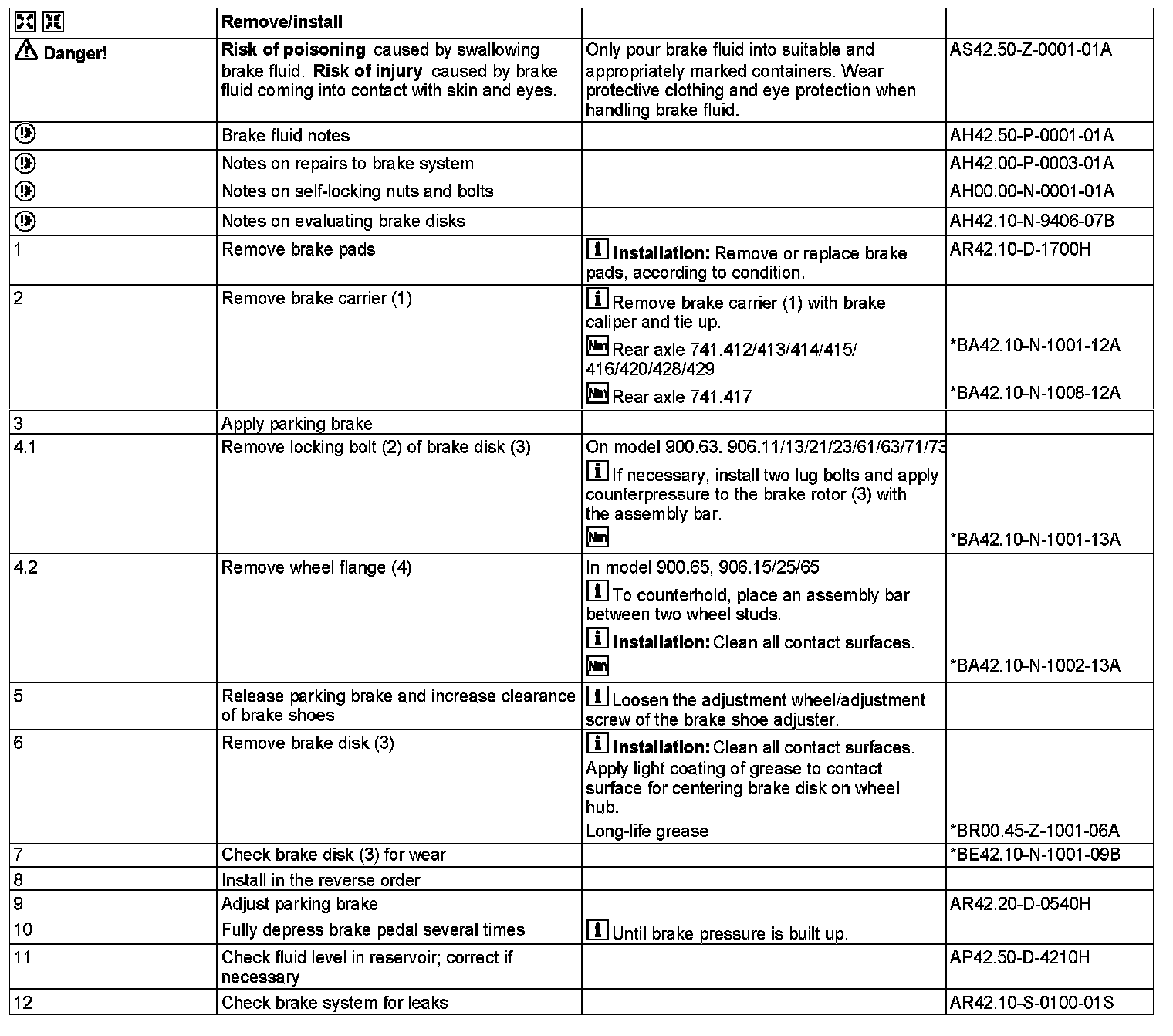

AR42.10-D-0240H Remove/Install Rear Axle Brake Disc

MODEL 906
- with REAR AXLE 741.412 /413 /414 /415 /416 /417 /420

MODEL 900
- with REAR AXLE 741.415 /413 /414 /420

MODEL 8AC906.133 /631 /633 /635
- with REAR AXLE 741.428
- with CODE (ZL3) National version for Latin America

MODEL 8AC906.153 /155 /655 /657
- with REAR AXLE 741.429
- with CODE (ZL3) National version for Latin America

Model 900.63, model 906.11/13/21/23/61/63/71/73, shown on model 906.633 with rear axle 741.412






1 Brake carrier
2 Security bolt
3 Brake disk

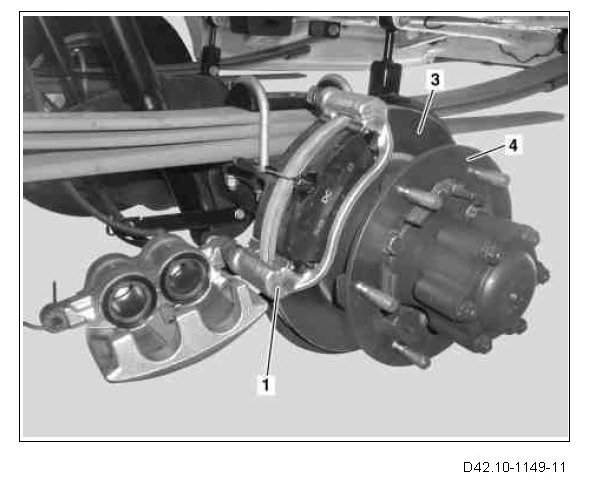

Model 900.65, model 906.15/25/65, Shown on model 906.655 with rear axle 741.414






1 Brake carrier
3 Brake disk
4 Wheel flange
