Mercedes Benz Truck
>>
2012
>>
Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Specifications
>>

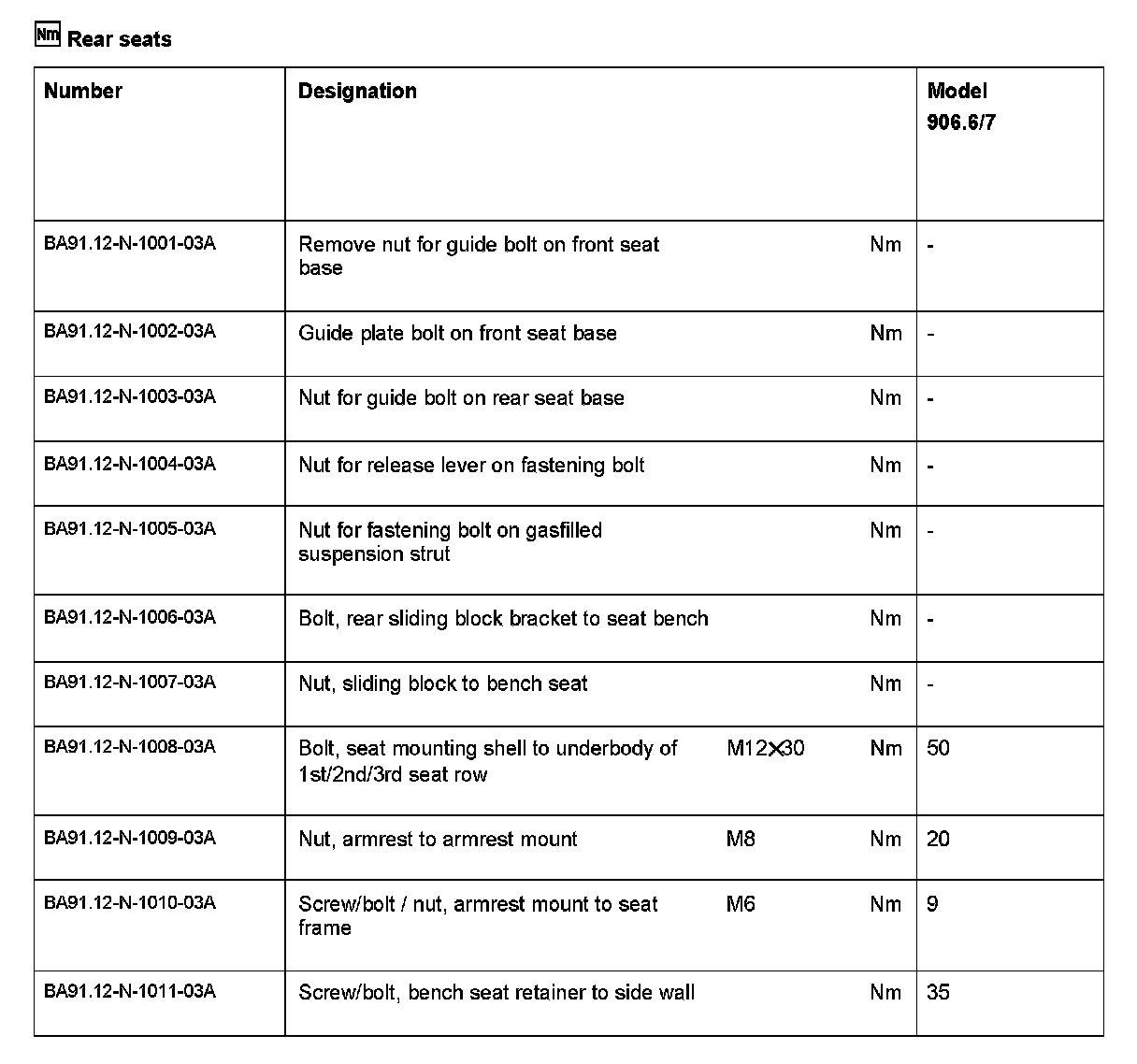

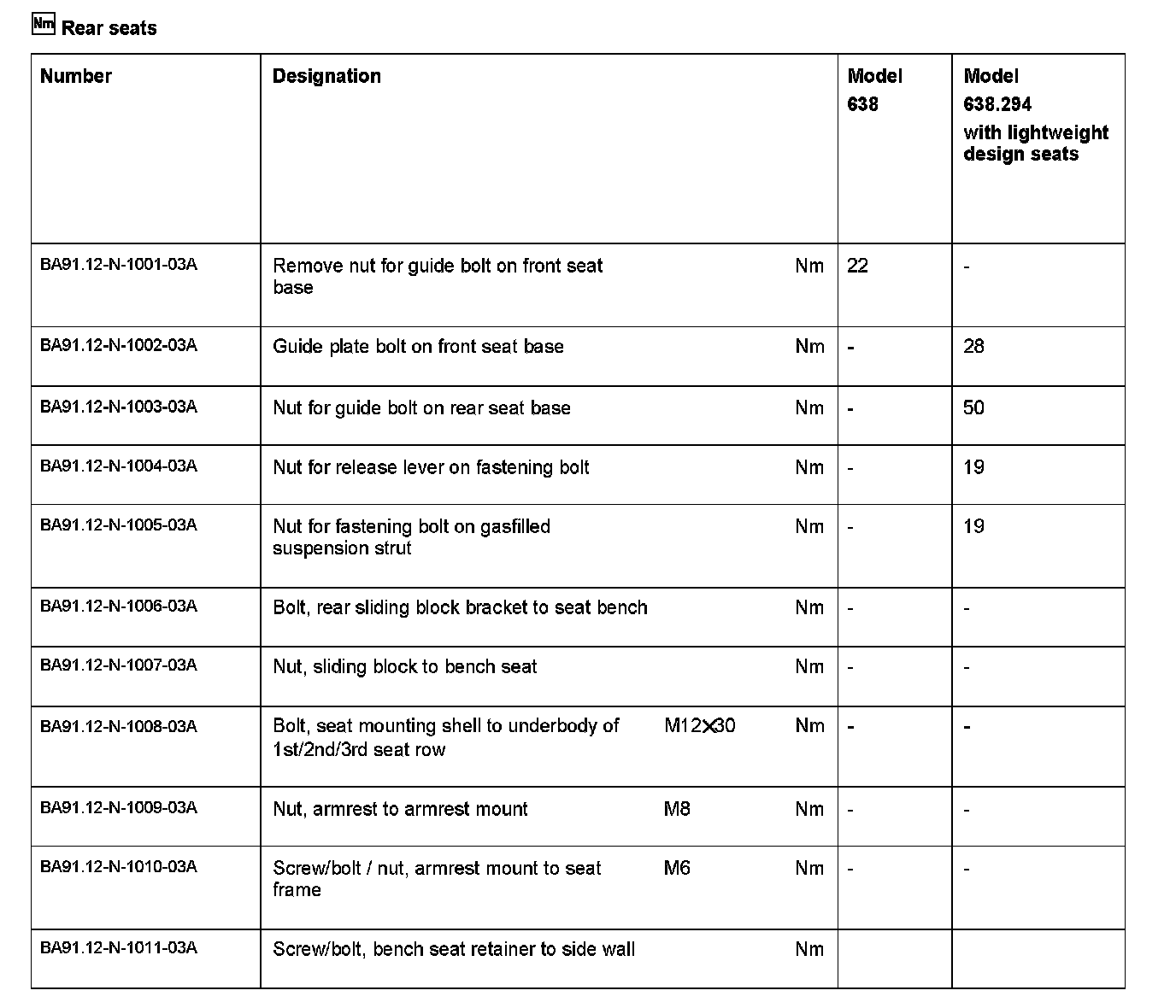

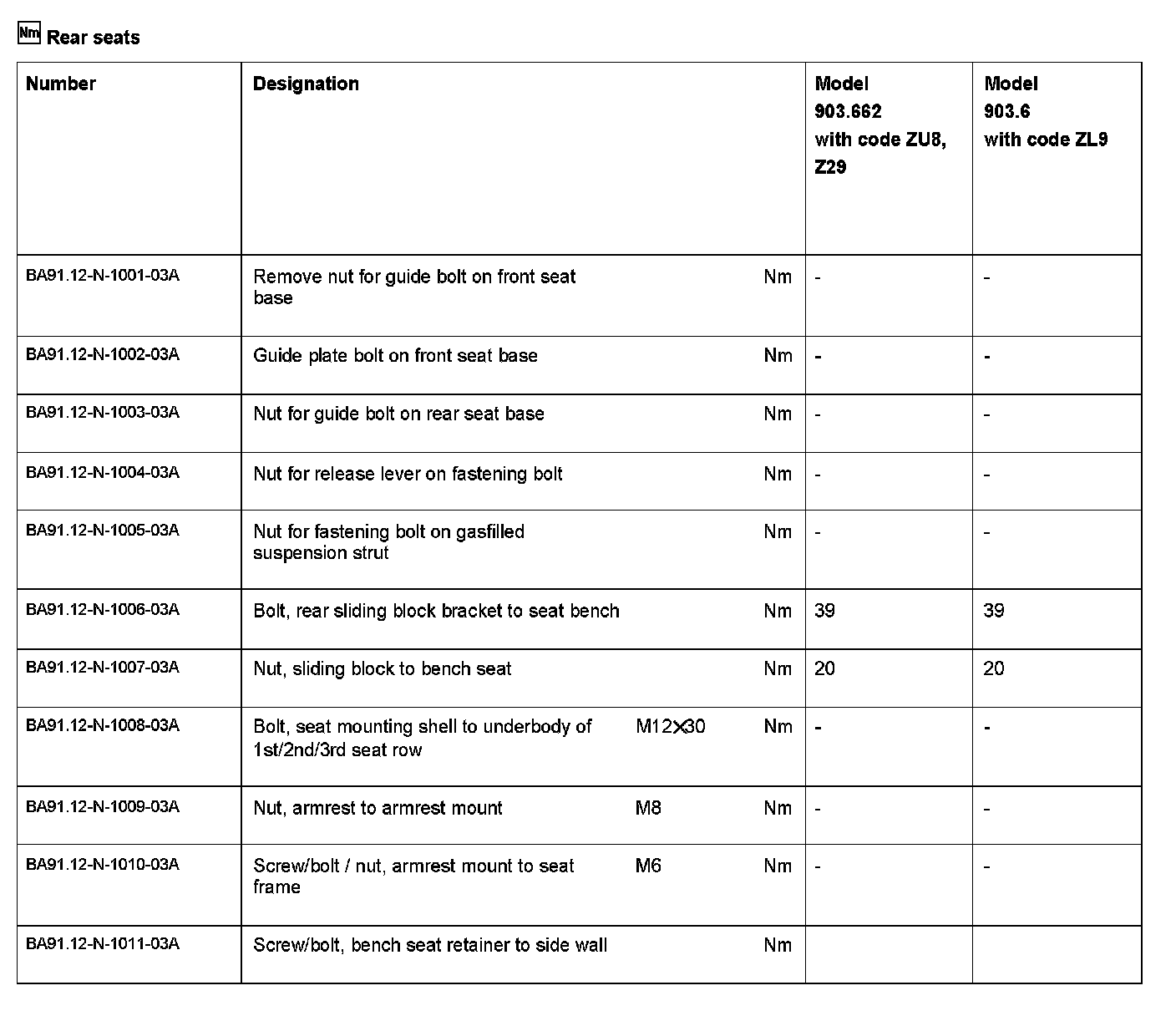

BA91.12-N-1000-03A Rear Seats
BA91.12-N-1000-03A Rear Seats
BA91.12-N-1000-03A Rear Seats
Model 638, 903, 906
