Removal and Replacement

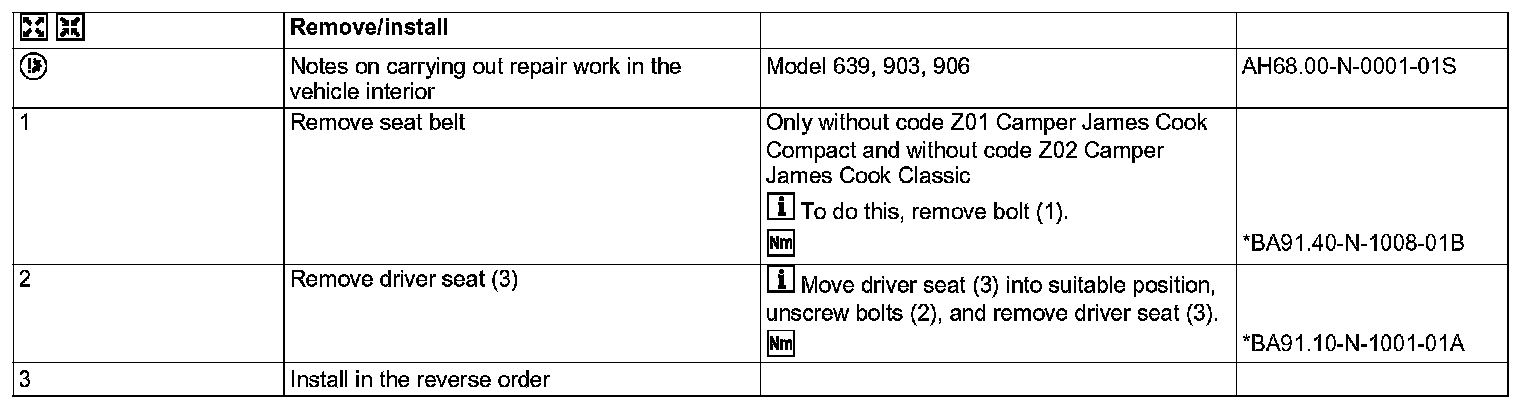

AR91.10-D-1010H Remove/Install Driver Seat

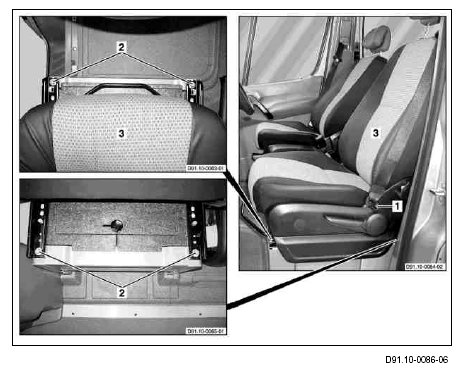

Shown on vehicle without code ZO1 Camper James Cook Compact and without code ZO2 Camper James Cook Classic

1 Bolt
2 Bolts
3 Driver seat
