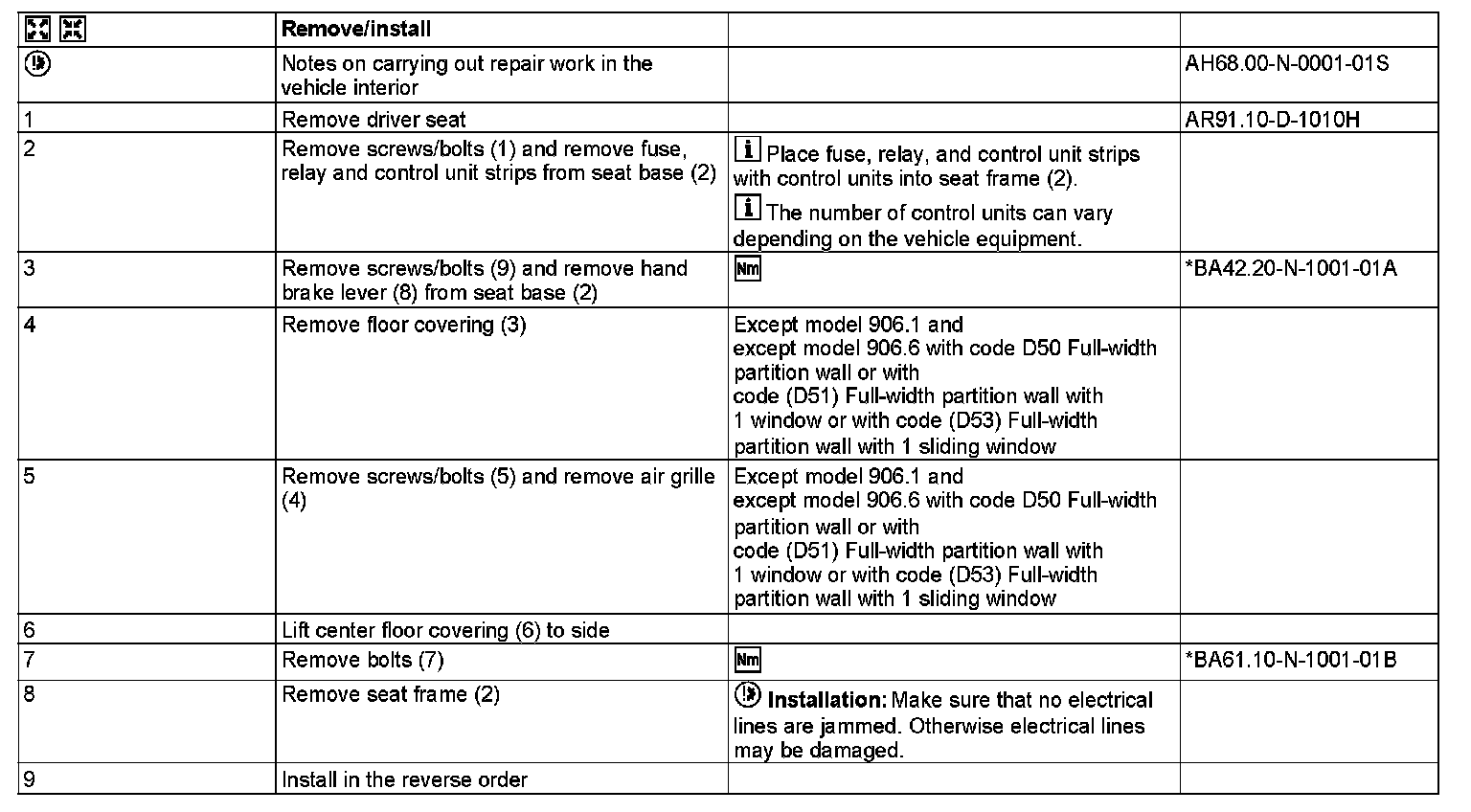

AR91.10-D-3520H Remove/Install Seat Frame

AR91.10-D-3520H Remove/Install Seat Frame

MODEL 900, 906 driver-side

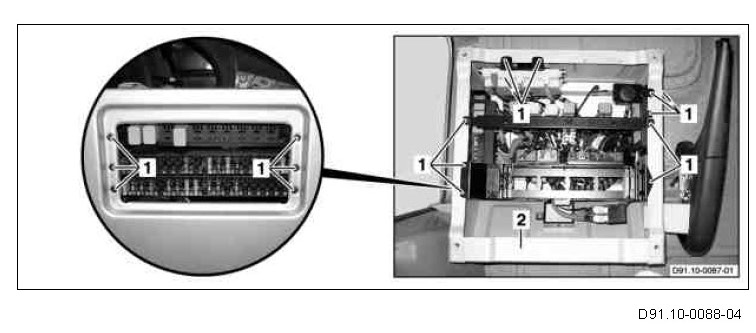

1 Bolts
2 Seat frame

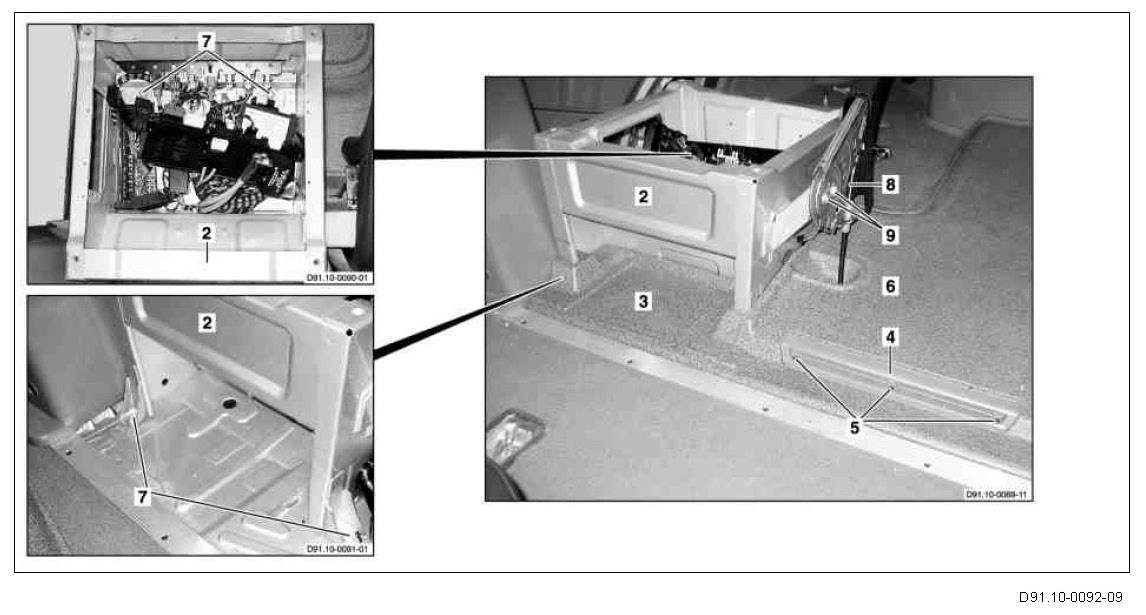

Shown on model 906.635






2 Seat frame
3 Floor Covering
4 Air grille
5 Bolts
6 Center floor covering

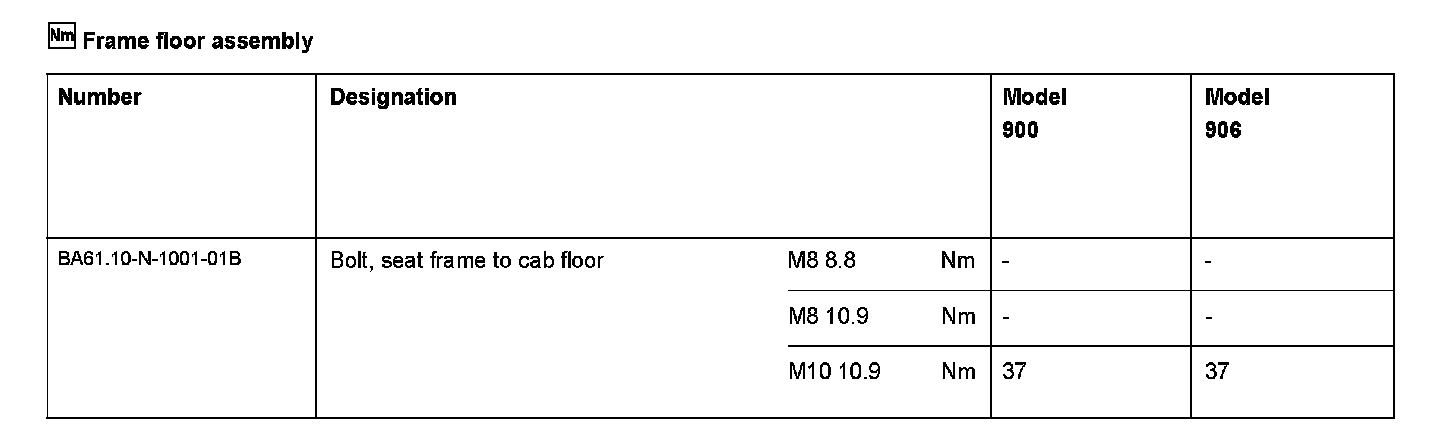

7 Bolts

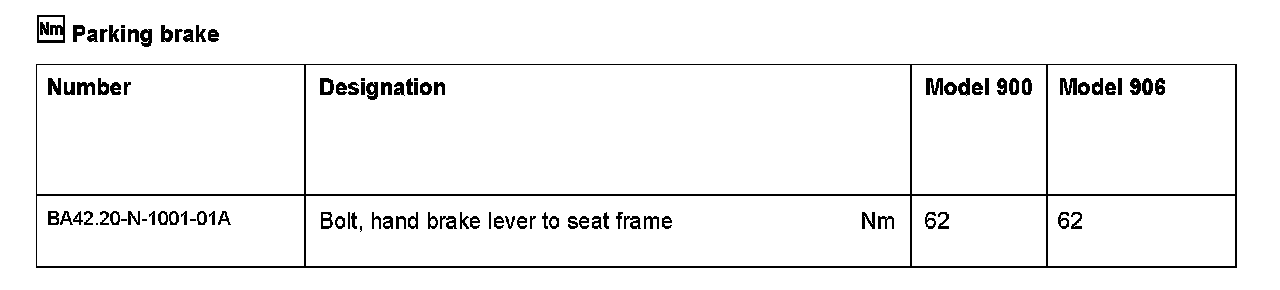

8 Hand brake lever
9 Bolts
