AR91.10-D-3310B Remove/Install Seat Cushion
AR91.10-D-3310B Remove/Install Seat Cushion
MODEL 900, 906.1 /2 /6 /7
- Standard version driver seat, front passenger individual seat

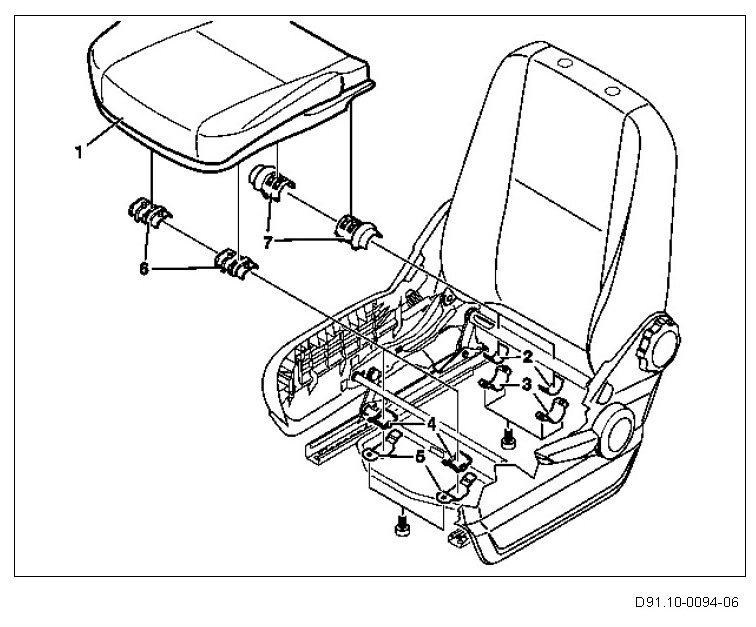

1 Seat cushion
2 Lower bearing shell halves (rear)
3 Retaining clip
4 Lower bearing shell halves (front)
5 Retaining tabs
6 Upper bearing shell halves (front)
7 Upper bearing shell halves (rear)
