Seat Back: Service and Repair

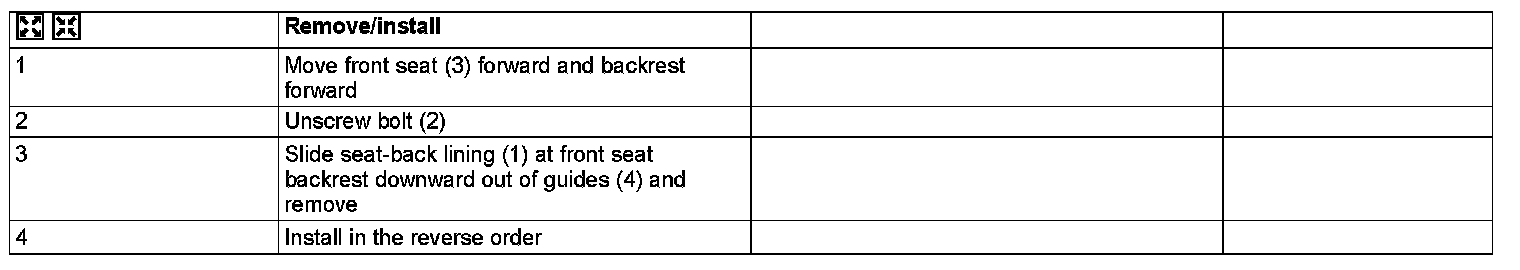

AR91.10-D-1910AK Remove/Install Front Seat Backrest Seat-back Lining

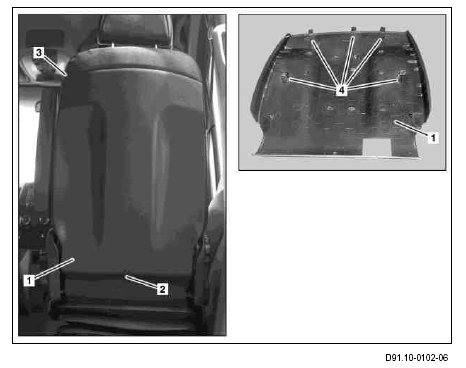

1 Seat-back lining
2 Screw
3 Front seat
4 Guides
