Radiator Support: Service and Repair

AR88.30-D-1064SE Remove/Install Front Module

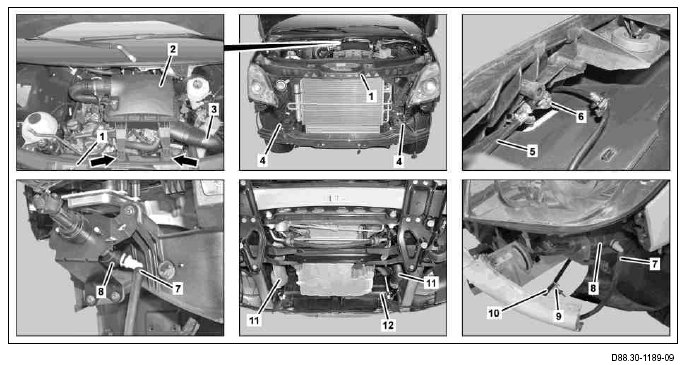

1 Front Module
2 Air cleaner housing
3 Air intake pipe
4 Air ducting
5 Engine hood release cable
6 Engine hood catch
7 Water drain hose (with code (F46) Headlamp cleaning system)
8 Nozzle (with code (F46) Headlamp cleaning system)
9 Clamping device
10 Water drain hose (with code (F46) Headlamp cleaning system)
11 Charge air hose
12 Charge air cooler

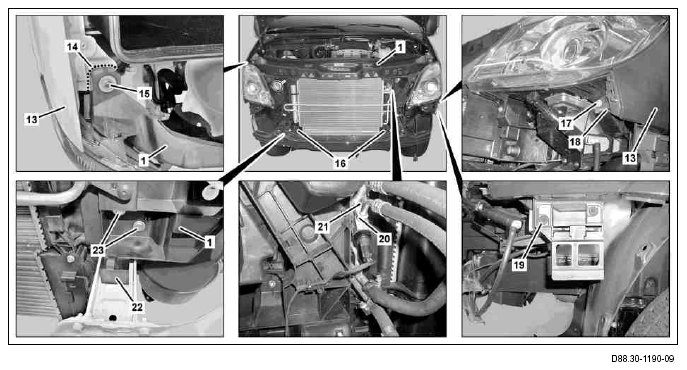

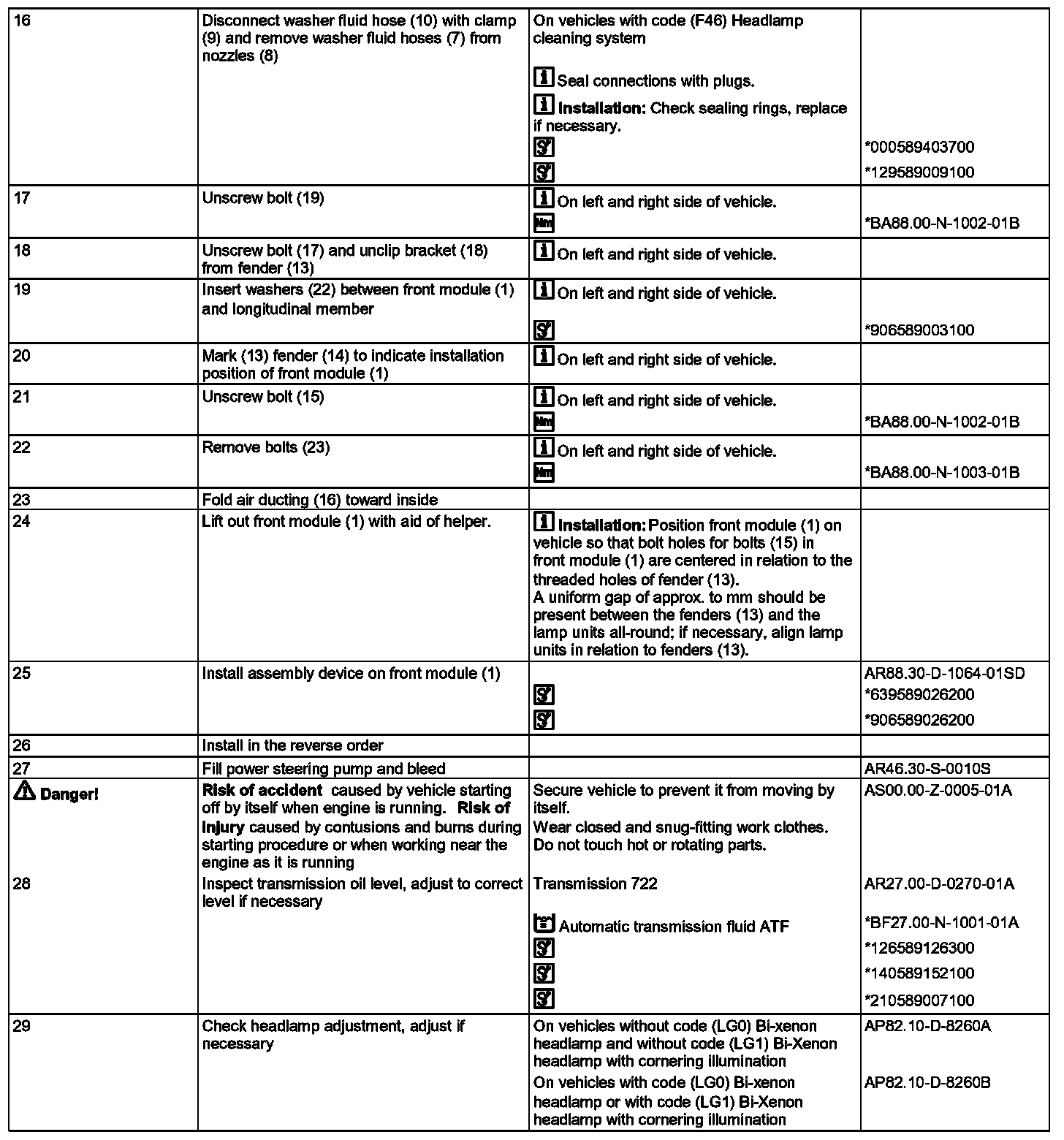

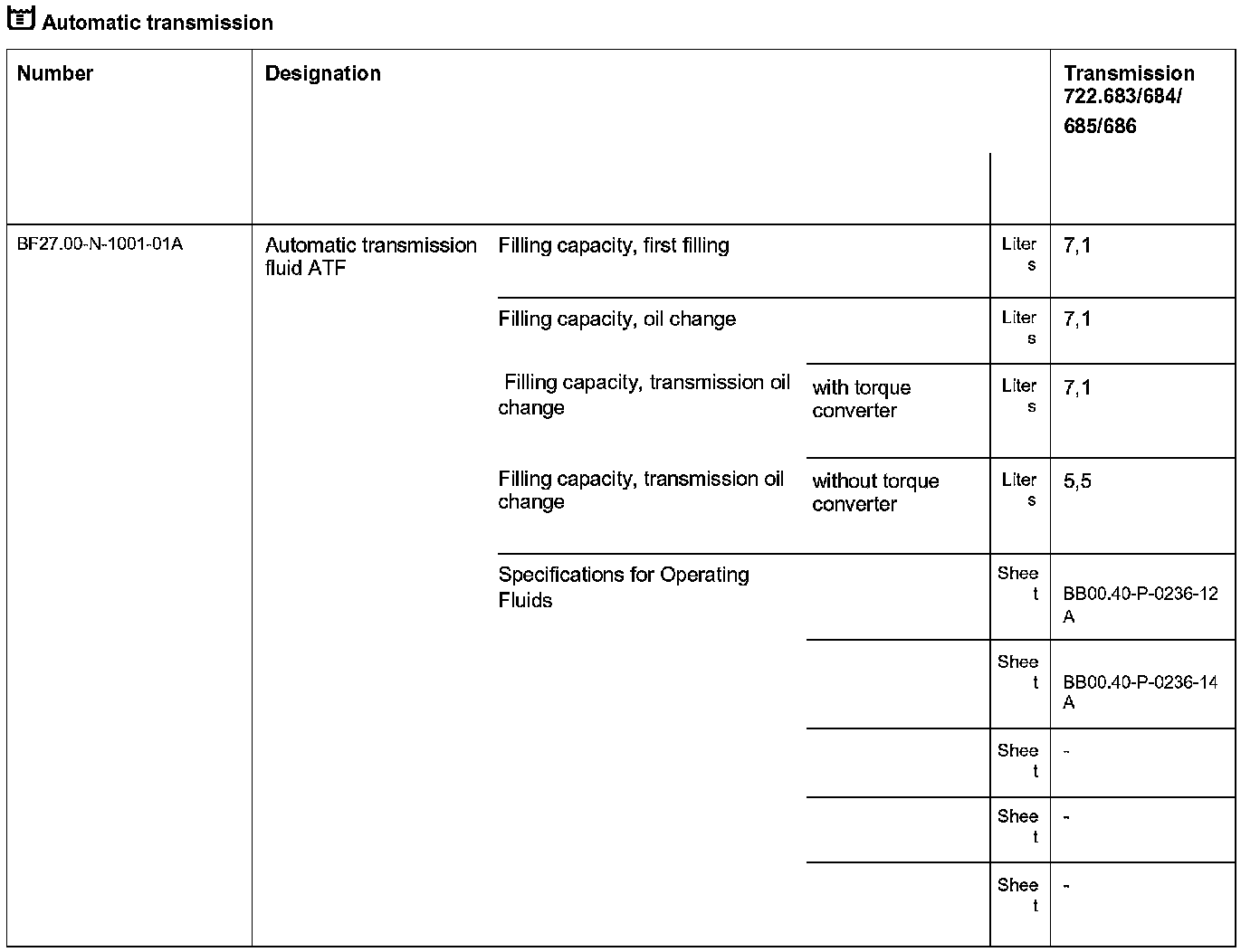

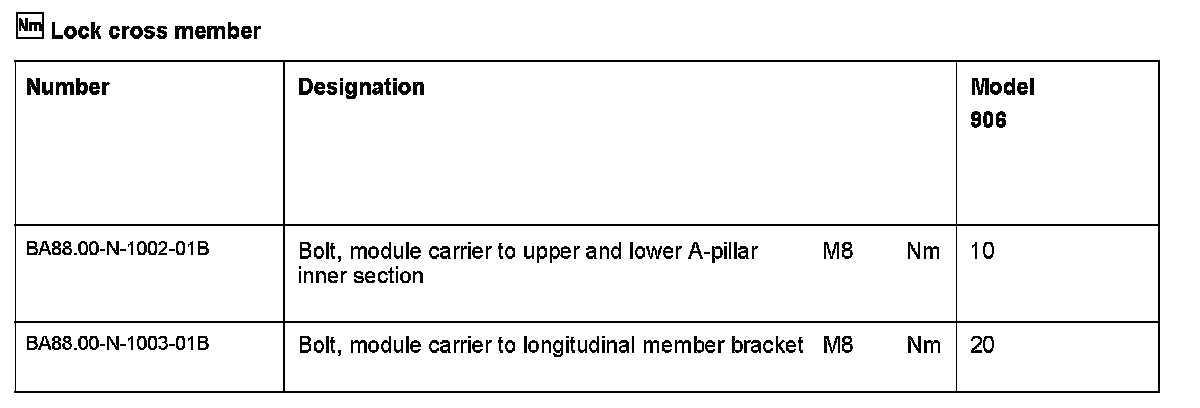

1 Front Module
13 Fenders
14 Marking
15 Screw
16 Fan guides
17 Screw
18 Bracket
19 Screw
20 Refrigerant line separating point
21 Nut
22 Washer
23 Bolts
