Removal and Replacement

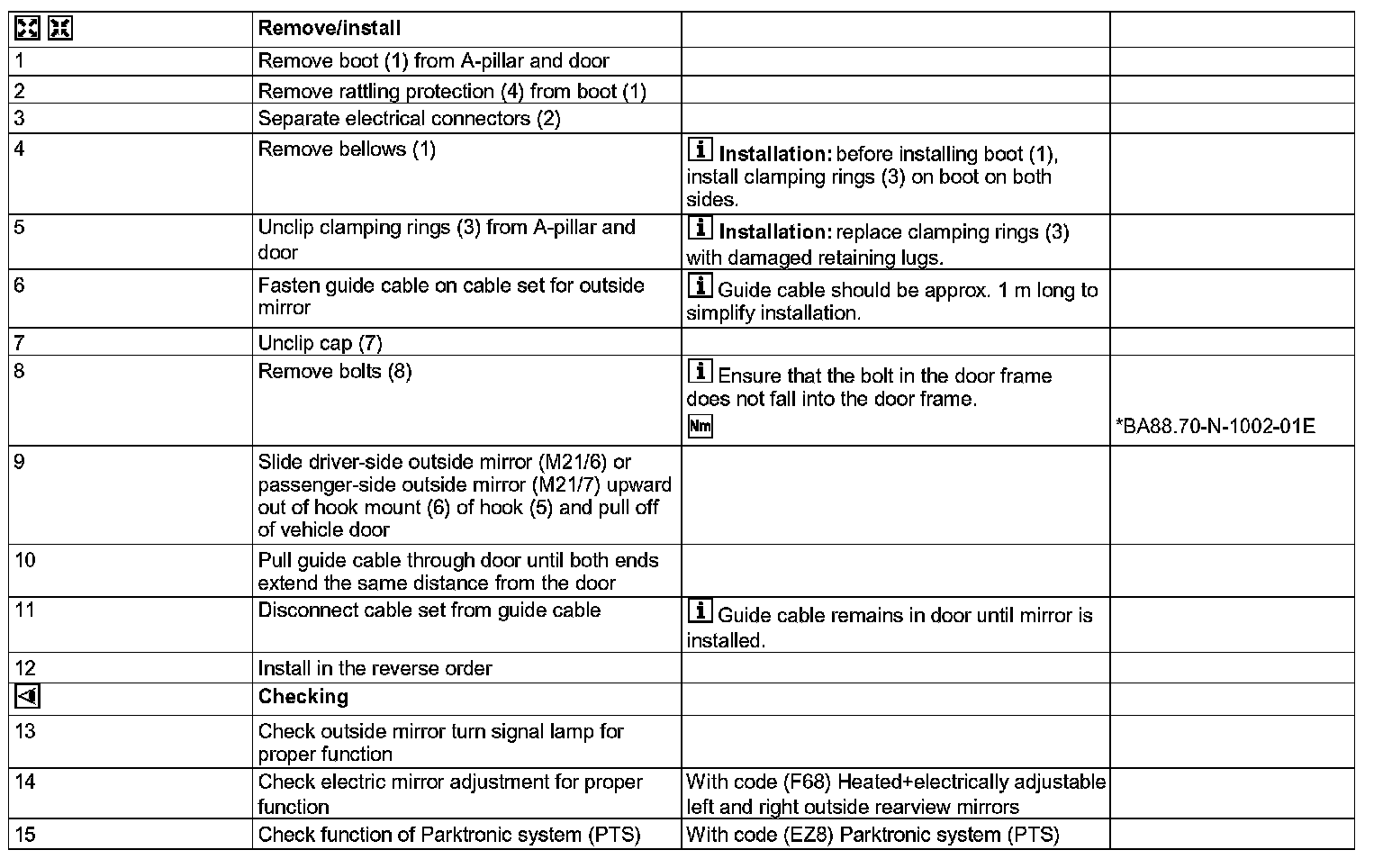

AR88.70-D-9000H Remove/Install Complete Outside Mirror

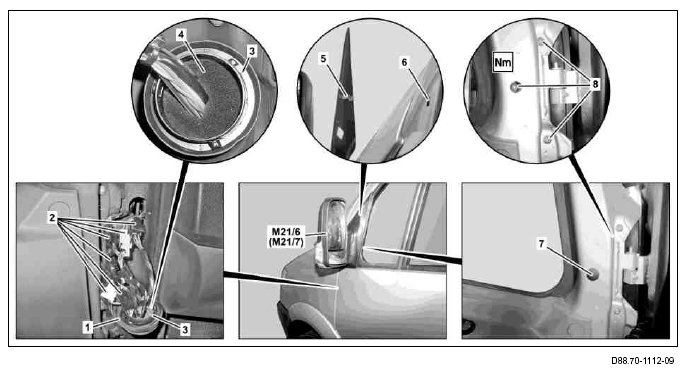

1 Bellows
2 Electrical connector
3 Clamping ring
4 Rattling protection
5 Hook
6 Hook mount
7 Cap

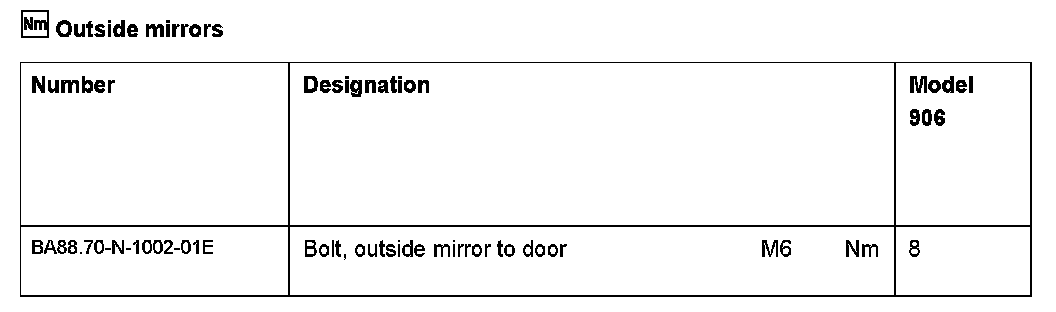

8 Bolts
M21/6 Driver-side outside mirror
M21/7 Passenger-side outside mirror
