Power Mirror Motor: Service and Repair

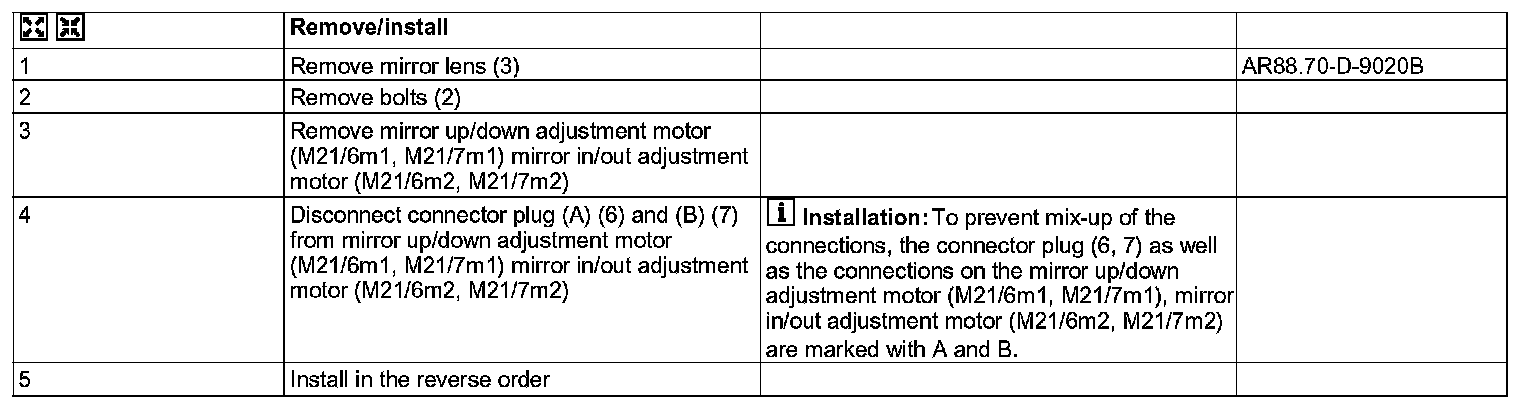

AR88.79-D-3476B Remove/Install Mirror Adjustment Motor

- with CODE (F68) Heated and electrically adjustable left and right outside rearview mirrors

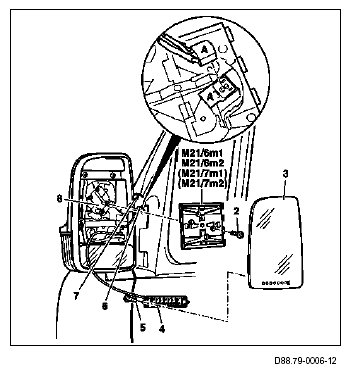

2 Bolt
3 Mirror lens
4 Parktronic LED module
5 Bolt
6 Connector (A)
7 Connector (B)
8 Mirror holder
M21/6m1 Mirror up/down adjustment motor
M21/6m2 Mirror in/out adjustment motor
M21/7m1 Mirror up/down adjustment motor
M21/7m2 Mirror in/out adjustment motor
