Door Locks: Service and Repair

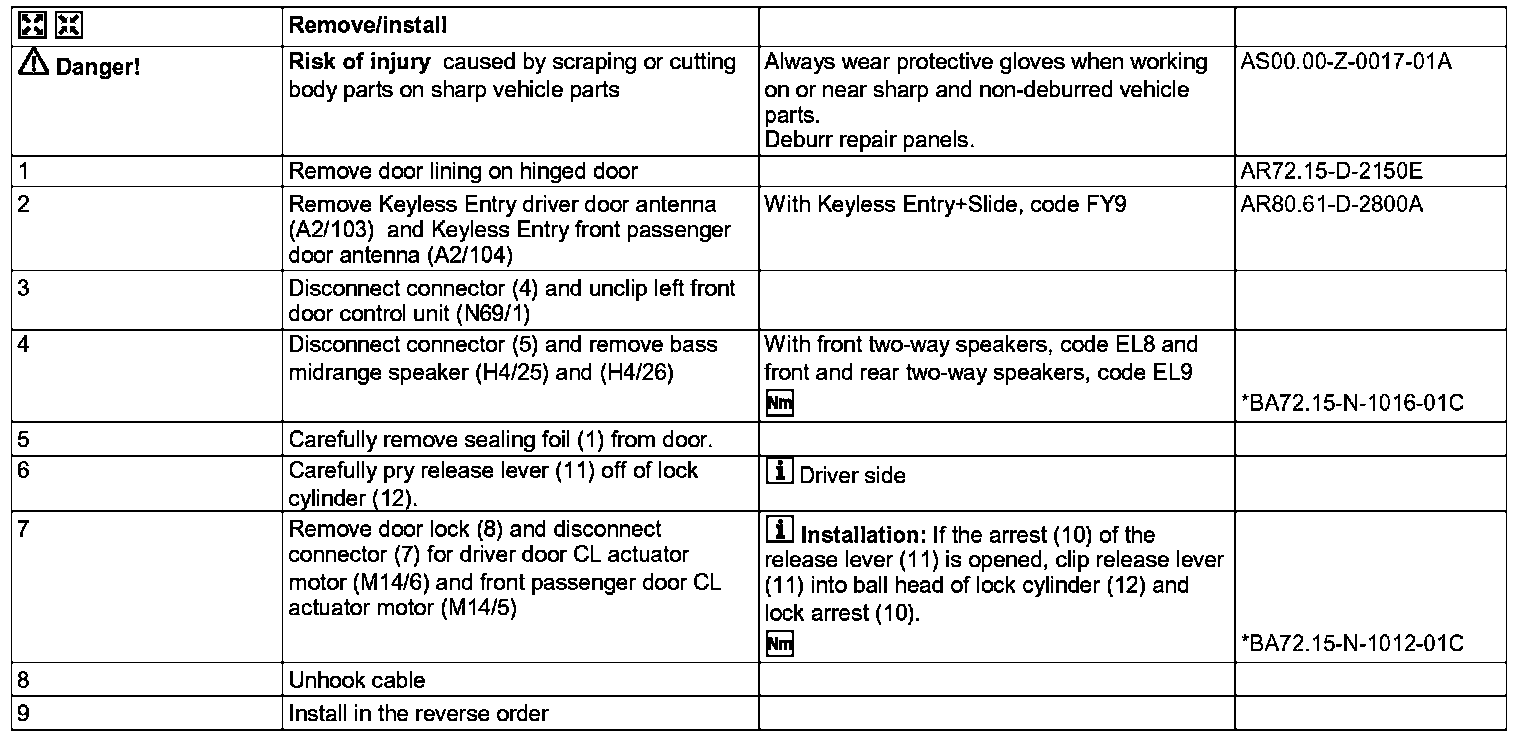

AR72.10-D-4011B Remove/Install Front Door Lock

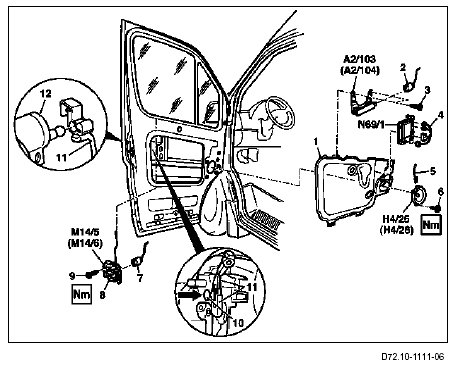

1 Sealing foil
2 Plug connector
4 Plug connector
5 Plug connector
7 Plug connector
8 Door lock
9 Bolt
10 Catch
11 Release lever
12 Lock cylinder
A2/103 Keyless Entry driver door antenna
A2/104 Keyless Entry front passenger door antenna
H4/25 Bass midrange speaker
H4/26 Bass midrange speaker
M14/5 Front passenger door ZV actuator
M14/6 Driver door ZV actuator
N69/1 Door control unit front left
