Headliner: Service and Repair

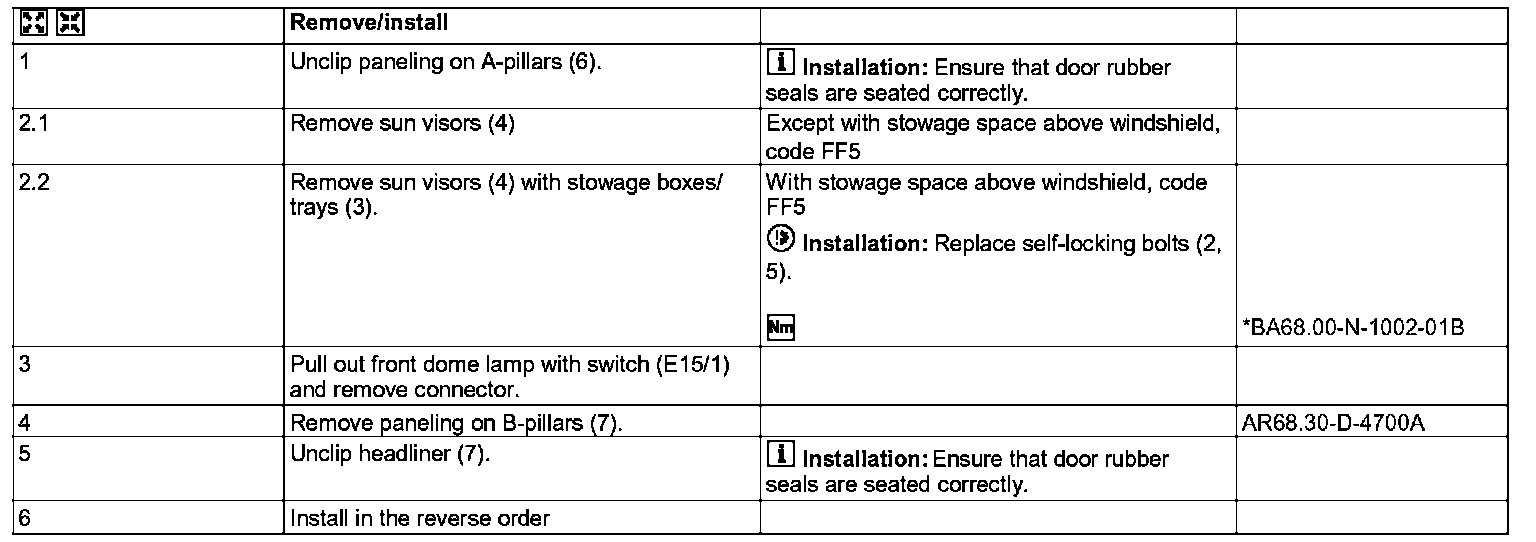

AR68.30-D-4300B Remove/Install Headliner

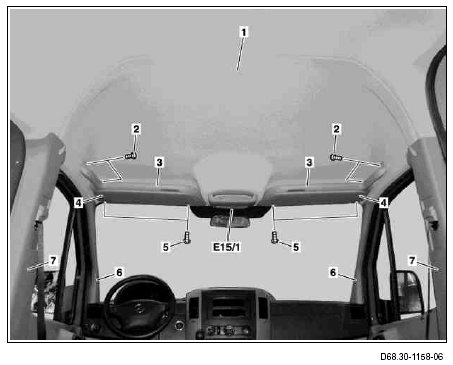

Shown on vehicle with stowage space above windshield, code FF5

1 Headliner
2 Bolt
3 Storage shelf
4 Sun visor
5 Bolt
6 A-pillar paneling
7 B-pillar paneling
E15/1 Front dome lamp with switch
