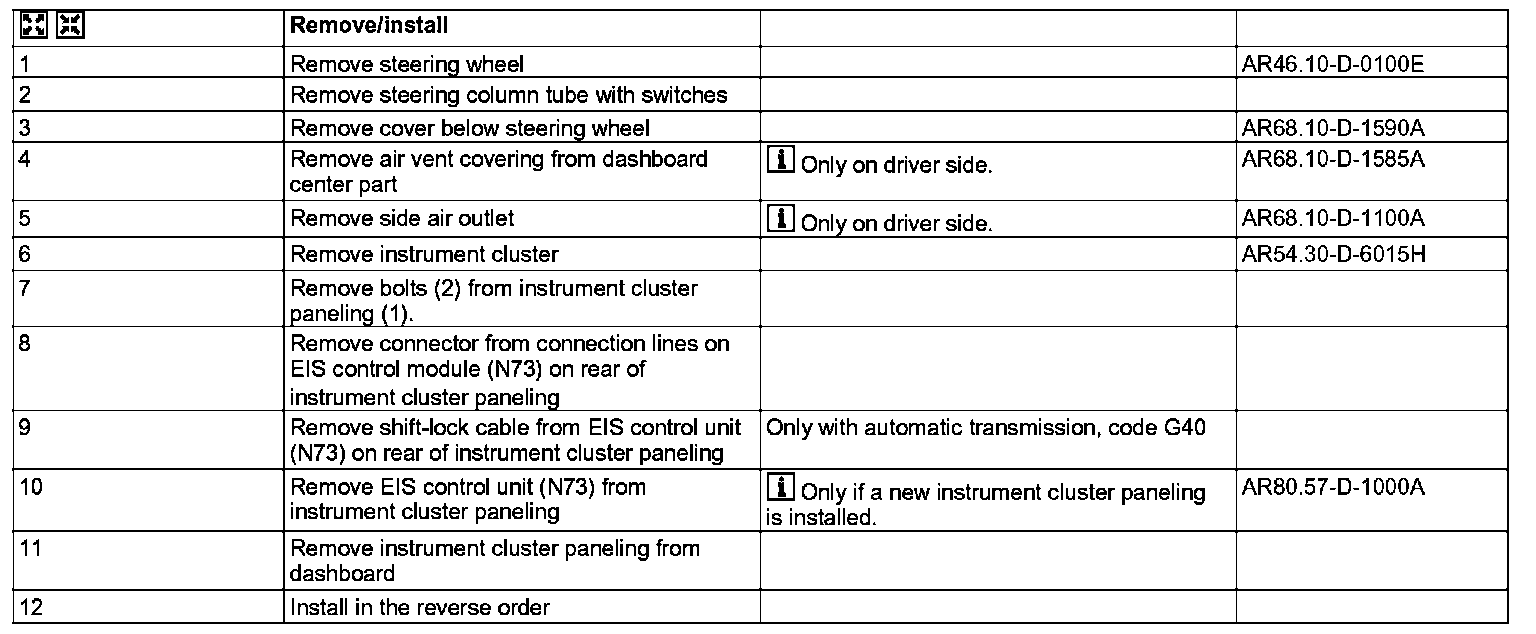

AR68.10-D-3511B Remove/Install Instrument Cluster Paneling




AR68.10-D-3511B Remove/Install Instrument Cluster Paneling

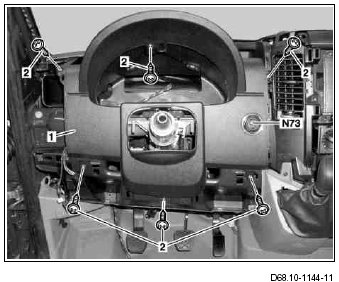

1 Instrument cluster paneling
2 Bolts
N73 EIS [EZS] control unit
