Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair

Console: Service and Repair

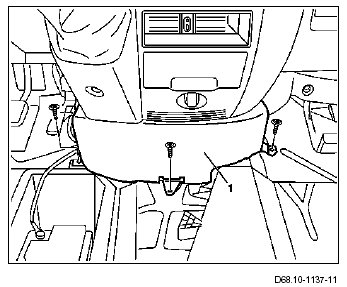

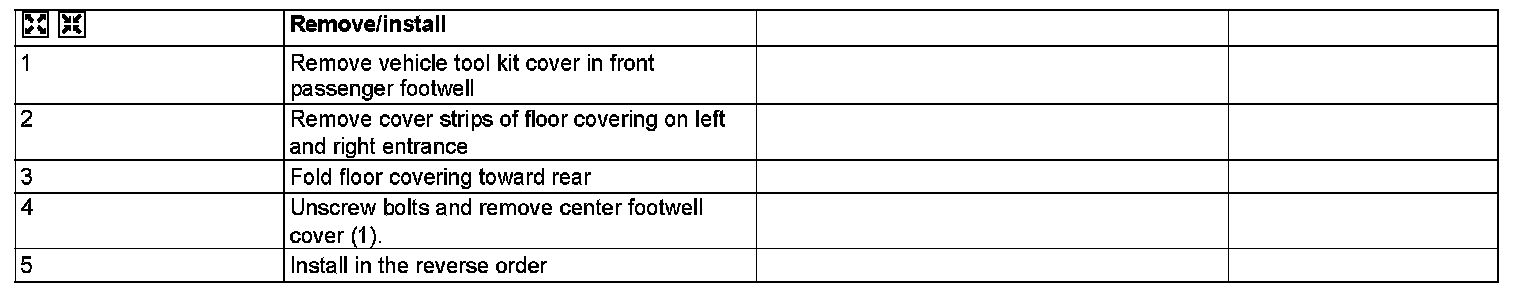

AR68.30-D-1320A Remove/Install Center Footwell Cover








1 Center footwell cover
