Grille: Service and Repair

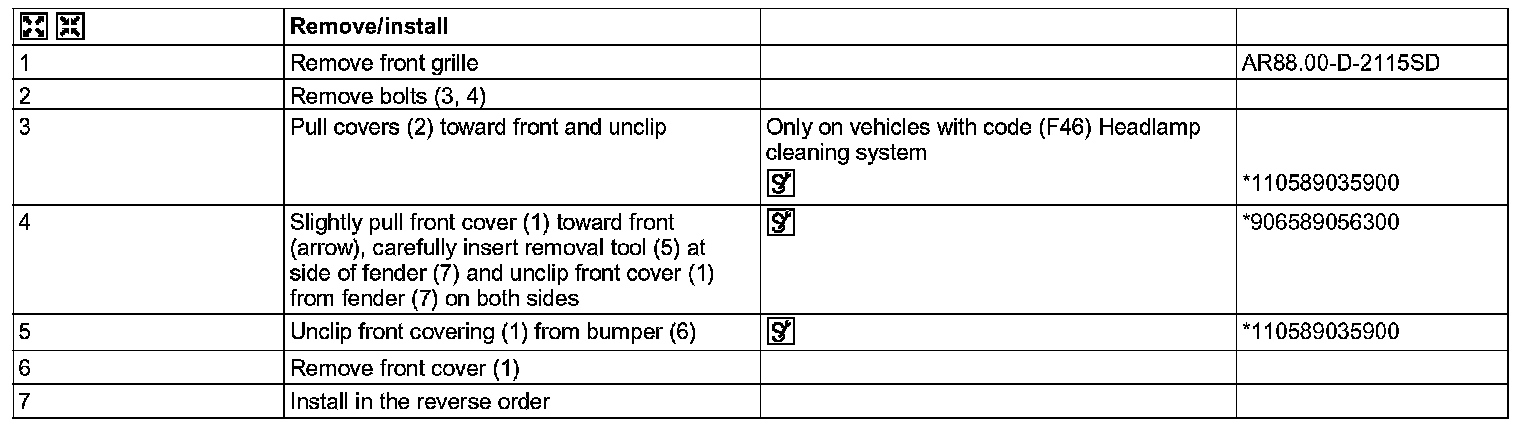

AR88.00-D-2200SD Remove/Install Covering Below Front Grille

- except CODE (ZX8) Dodge brand scope
- except CODE (ZX9) Freight liner (FTL) brand scope

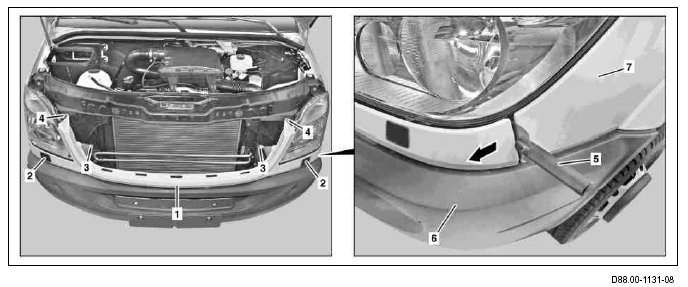

1 Front cover
2 Cover (only with code (F46) Headlamp cleaning system)
3 Screw
4 Screw
5 Detaching tool
6 Bumper
7 Fenders







110 589 03 59 00, Mounting wedge







906 589 05 63 00, Detaching tool
