Front Fender: Service and Repair

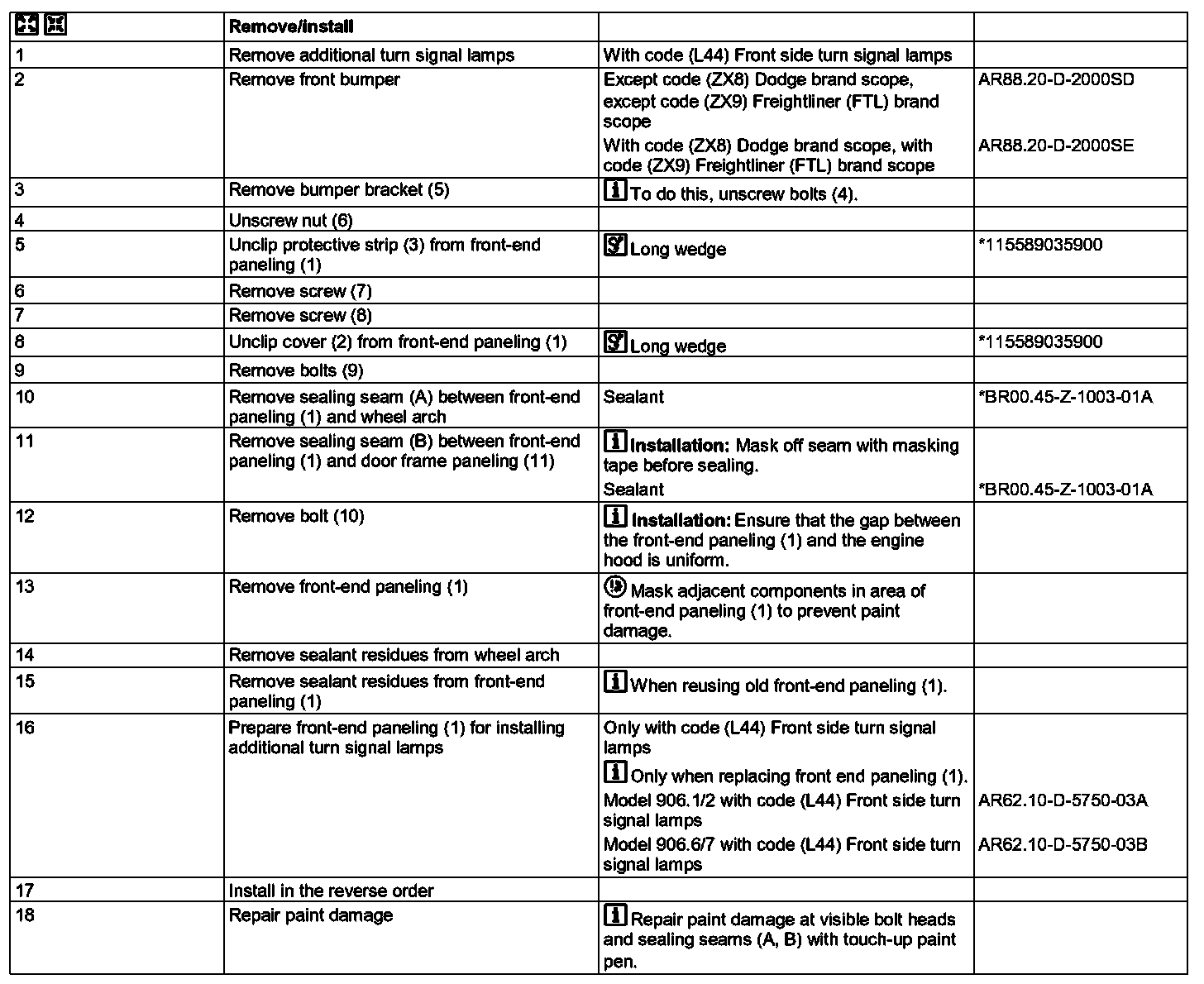

AR62.10-D-5750H Remove/Install Front End Paneling

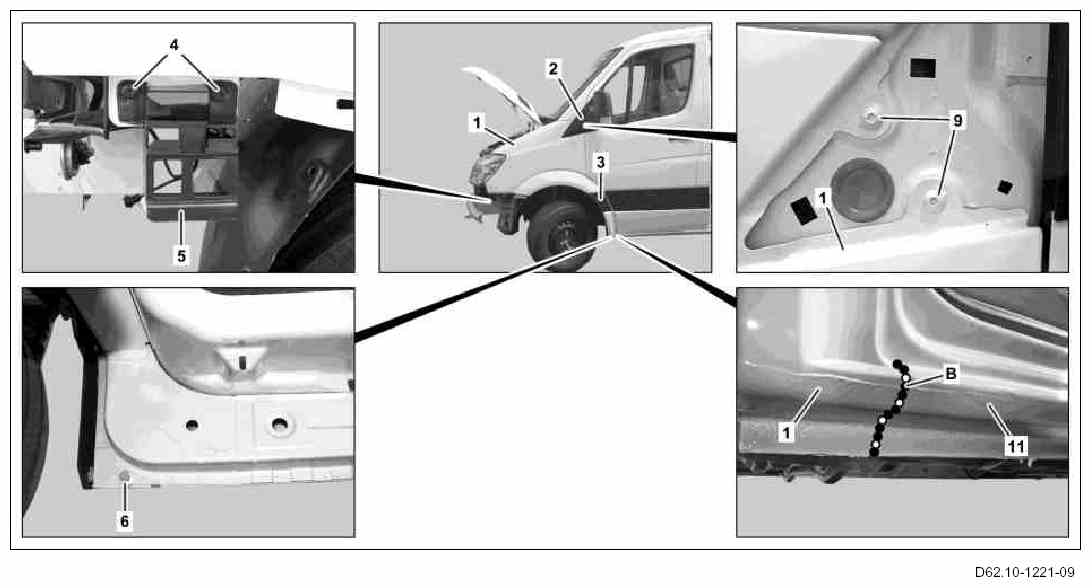

1 Front end paneling
2 Panel
3 Ram strip
4 Bolts
5 Bumper bracket
6 Nut
9 Bolts
11 Door frame paneling
B Seal







1 Front end paneling
7 Screw
8 Screw
10 Bolts
A Seal







115 589 03 59 00, Long wedge
