Removal and Replacement

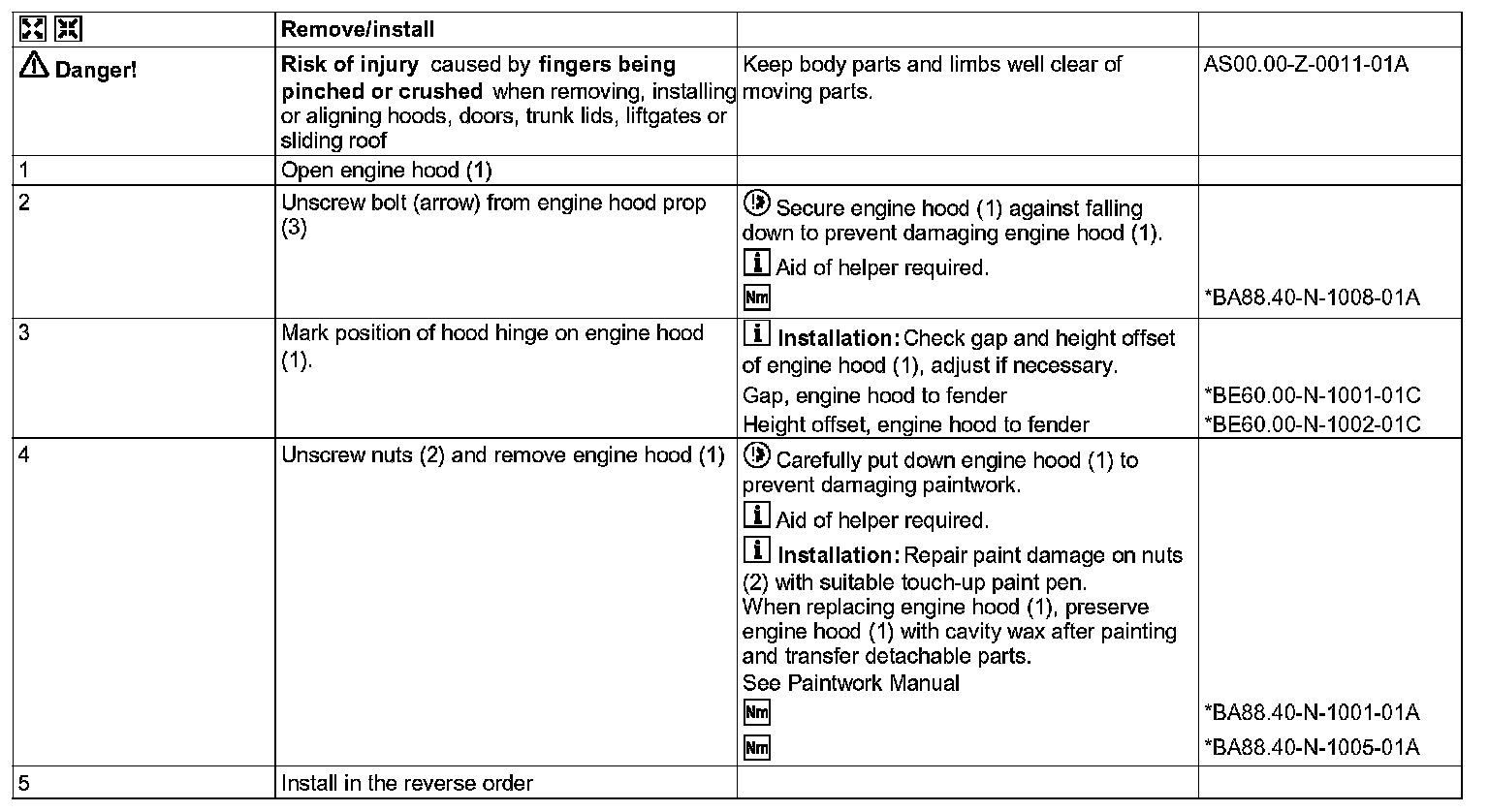

AR88.40-D-3000SD Remove/Install Engine Hood

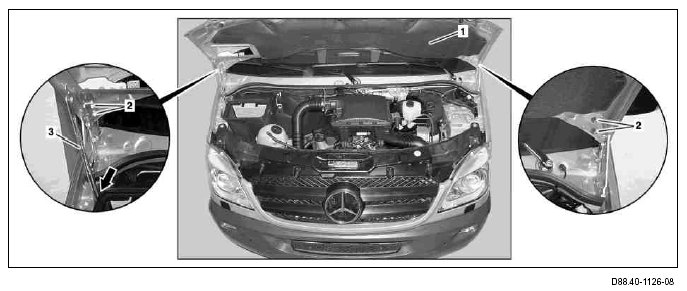

1 Engine hood
2 Nuts
3 Hood prop
