Overhaul

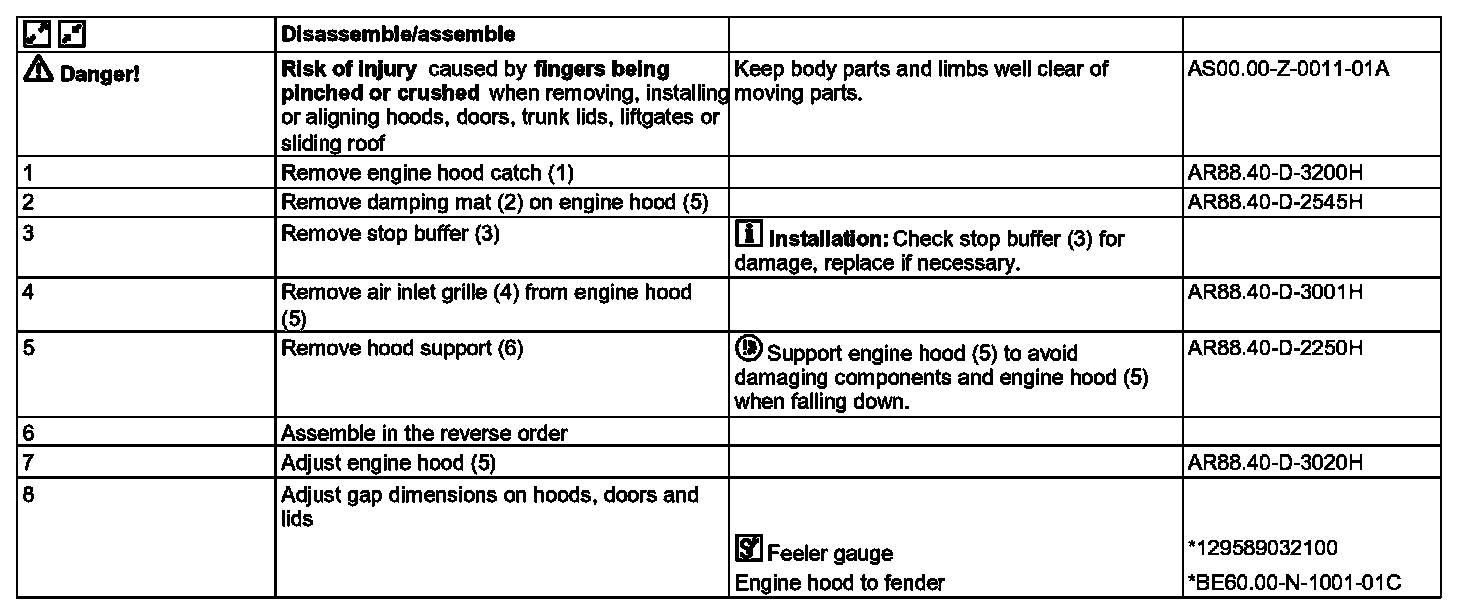

AR88.40-D-3002H Disassemble/Assemble Engine Hood

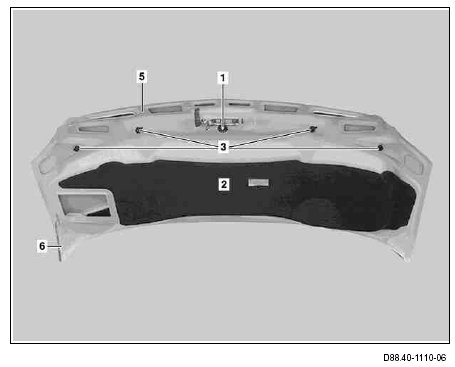

1 Engine hood catch
2 Insulation mat
3 Stop buffer
5 Engine hood
6 Hood support







4 Air inlet grille
5 Engine hood













129 589 03 21 00, Feeler gauge
