Hood Shock / Support: Service and Repair

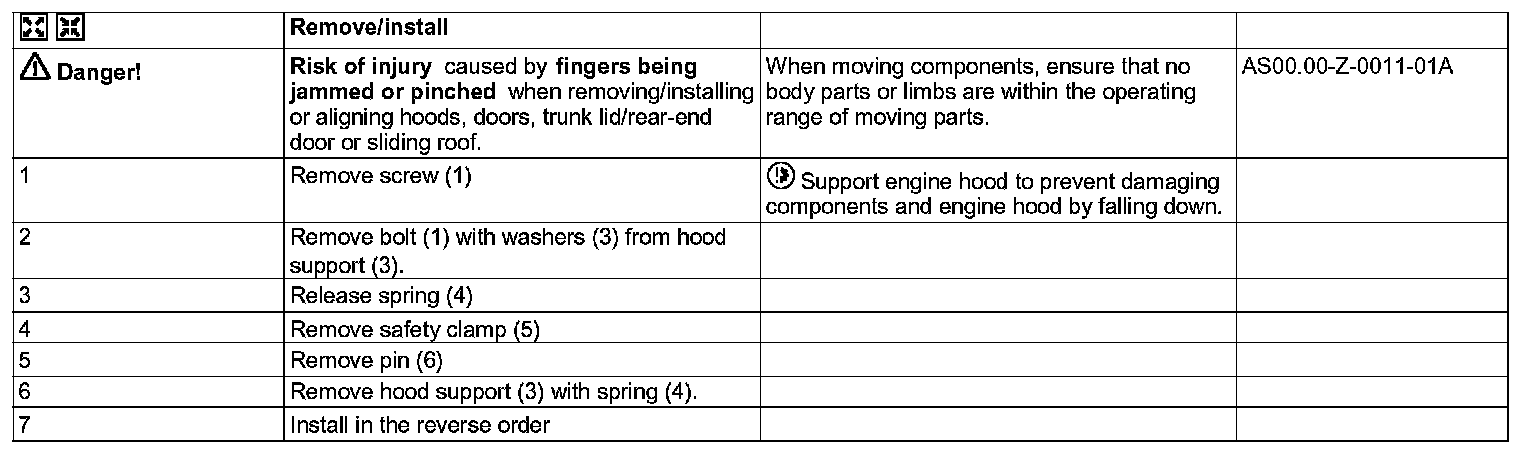

AR88.40-D-2250H Remove/Install Hood Support

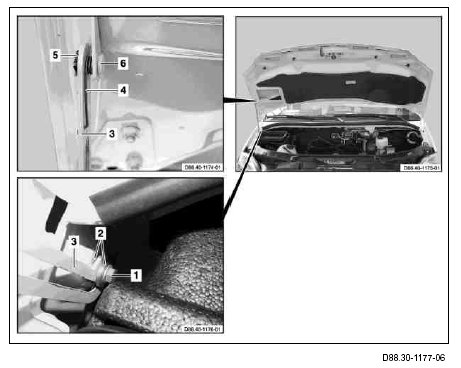

1 Bolt
2 Washers
3 Hood support
4 Spring
5 Safety clamp
6 Pin
