AR72.16-D-2210-02A Route Cables For Closing System

AR72.16-D-2210-02A Route Cables For Closing System

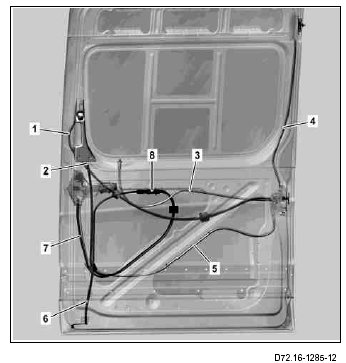

Cable routing for closing system without code T55 Electrical actuation for right sliding door or code T56 Electrical actuation for left sliding door

1 Cable for inside door handle/door lock
2 Cable for inside door handle/coupling
3 Cable for inner lock/door lock
4 Cable for door lock/additional lock
5 Cable for outer door handle/door lock
6 Cable for coupling/door catch
7 Cable for outer door handle/coupling
8 Clutch

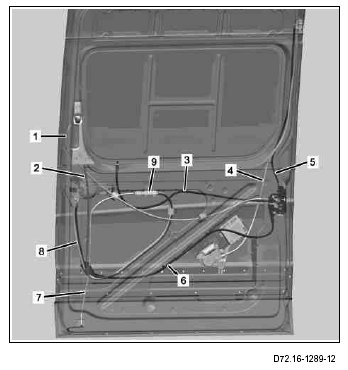

Cable routing for closing system with code T50 Electrical closing assist for right sliding door or code T51 Electric closing assist for left sliding door

1 Cable for inside door handle/door lock
2 Cable for inside door handle/coupling
3 Cable for inner lock/door lock
4 Cable for additional lock motor/additional lock
5 Cable for door lock/additional lock
6 Cable for outer door handle/door lock
7 Cable for coupling/door catch
8 Cable for outer door handle/coupling
9 Clutch

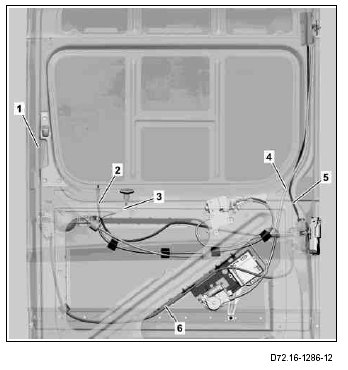

Cable routing for closing system with code T55 Electrical actuation for right sliding door or code T56 Electrical actuation for left sliding door

1 Cable for inside door handle/door lock
2 Cable for inner lock/door lock
3 Cable for motor coupling lock
4 Cable for additional lock motor/additional lock
5 Cable for door lock/additional lock
6 Cable for outer door handle/door lock
