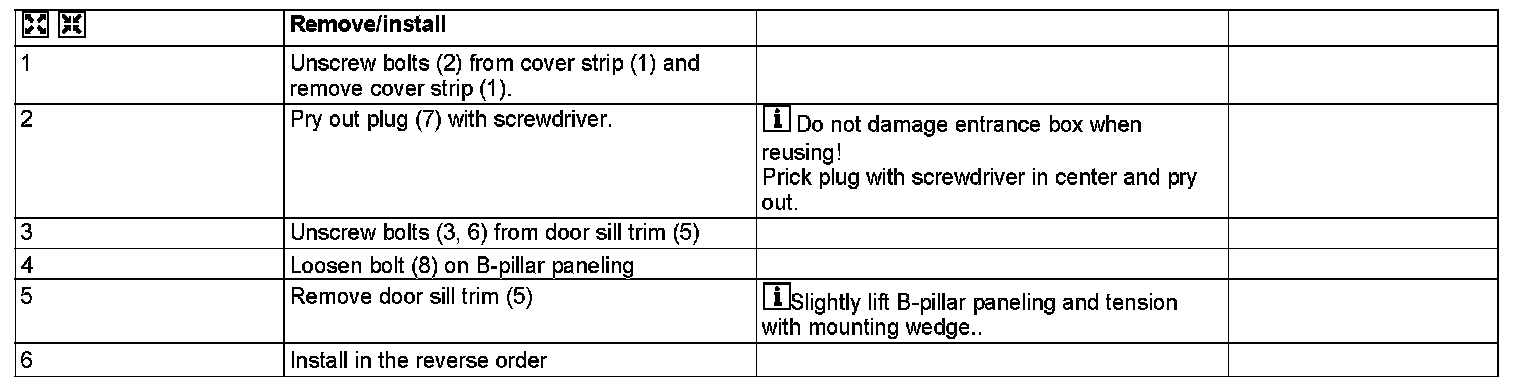

AR68.30-D-1306B Remove/Install Door Sill Trim




AR68.30-D-1306B Remove/Install Door Sill Trim

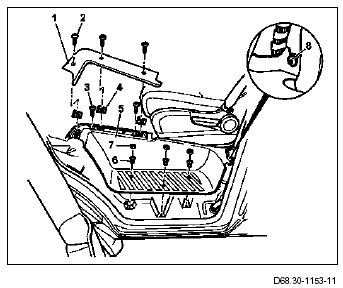

1 Cover strip
2 Bolt
3 Bolt
4 Nut
5 Door sill trim
6 Bolt
7 Plug
8 Bolt
