Front Door Hinge: Service and Repair

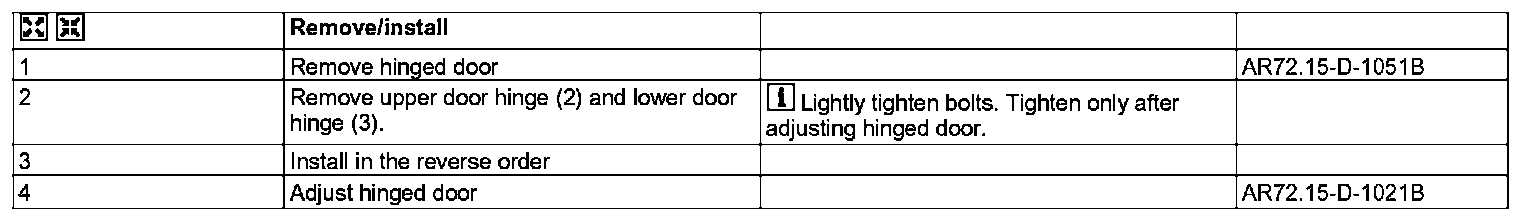

AR72.10-D-2660A Remove/Install Front Door Hinge








Shown on left side of vehicle

1 Bolts
2 Upper door hinge
3 Lower door hinge
