AR72.15-D-1021B Adjust Hinged Door

AR72.15-D-1021B Adjust Hinged Door

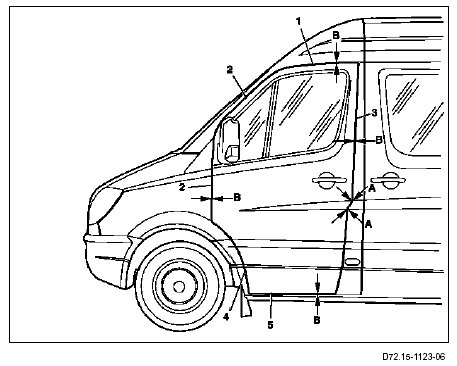

1 Top door gap
2 A-pillar door gap
3 Door gap on B-pillar
4 Wheelhouse door gap
5 Bottom door gap
A Ridge pattern
B Door gap













129 589 03 21 00, Feeler gauge
