Home >> Mercedes Benz Truck >> 2012 >> R 350 4MATIC (251.157) V6-3.5L (276.958) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> AP82.30-P-8252RT Windshield Wipers, Windshield Washer System and Headlamp Cleaning System - Function Check

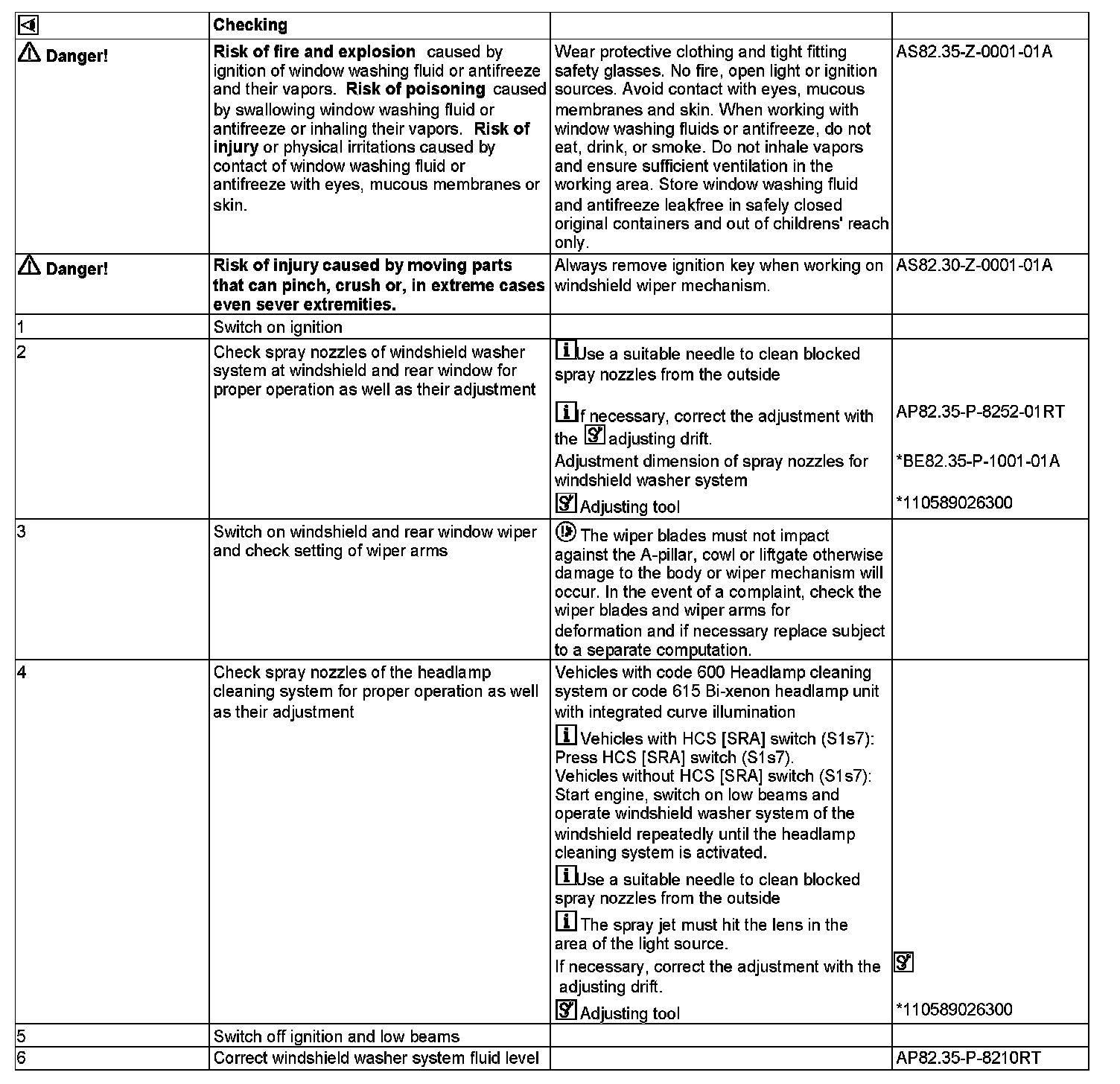

AP82.30-P-8252RT Windshield Wipers, Windshield Washer System and Headlamp Cleaning System - Function Check




AP82.30-P-8252RT Windshield Wipers, Windshield Washer System and Headlamp Cleaning System - Function Check
MODEL 251





S1s7 HCS [SRA] switch














110 589 02 63 00
Adjusting tool
