Mercedes Benz Truck
>>
2012
>>
R 350 4MATIC (251.157) V6-3.5L (276.958)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Service and Repair
Wiper and Washer Systems: Service and Repair
AR82.30-P-6400RT Remove/Install Wiper System

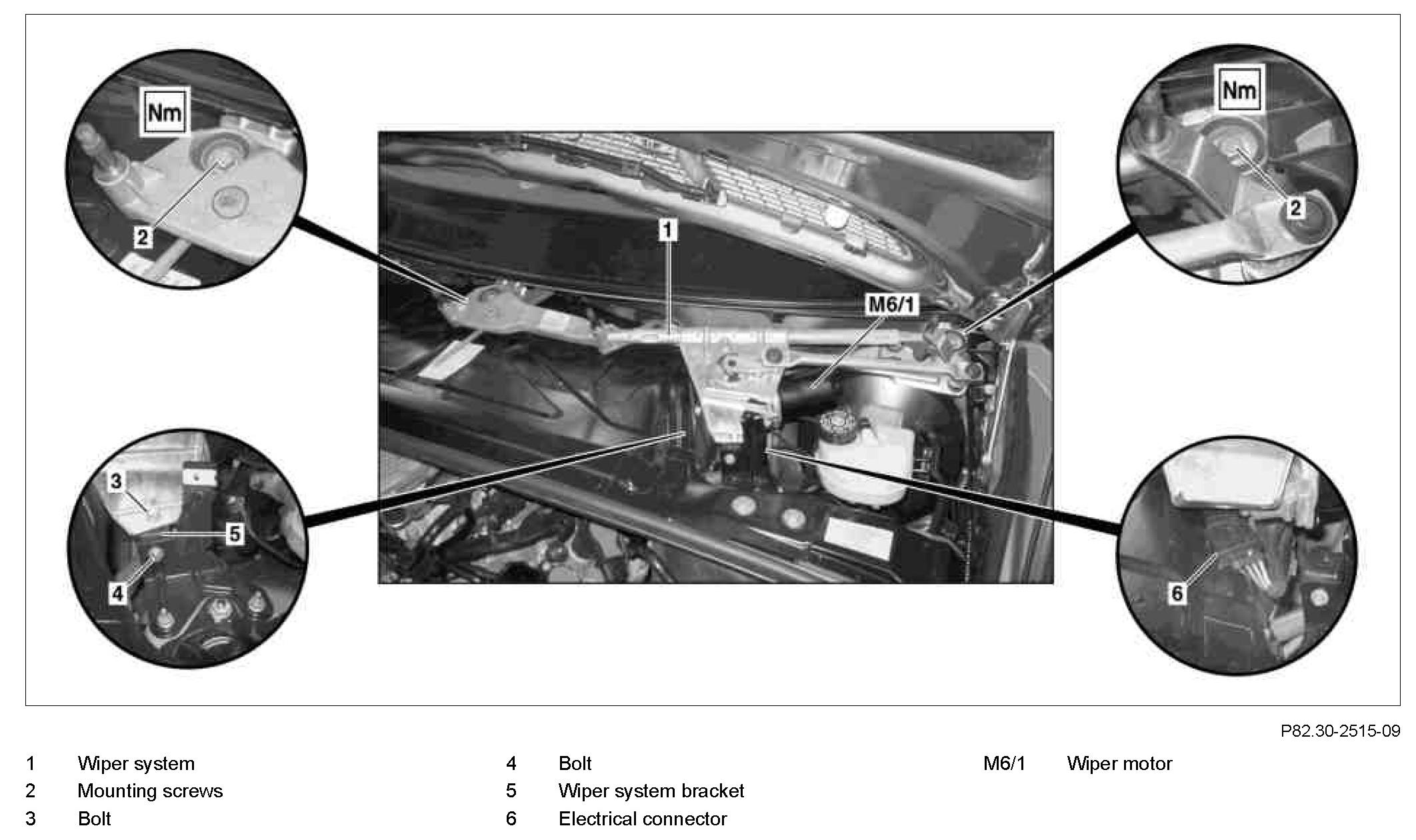

Component Identification:
Component Identification:

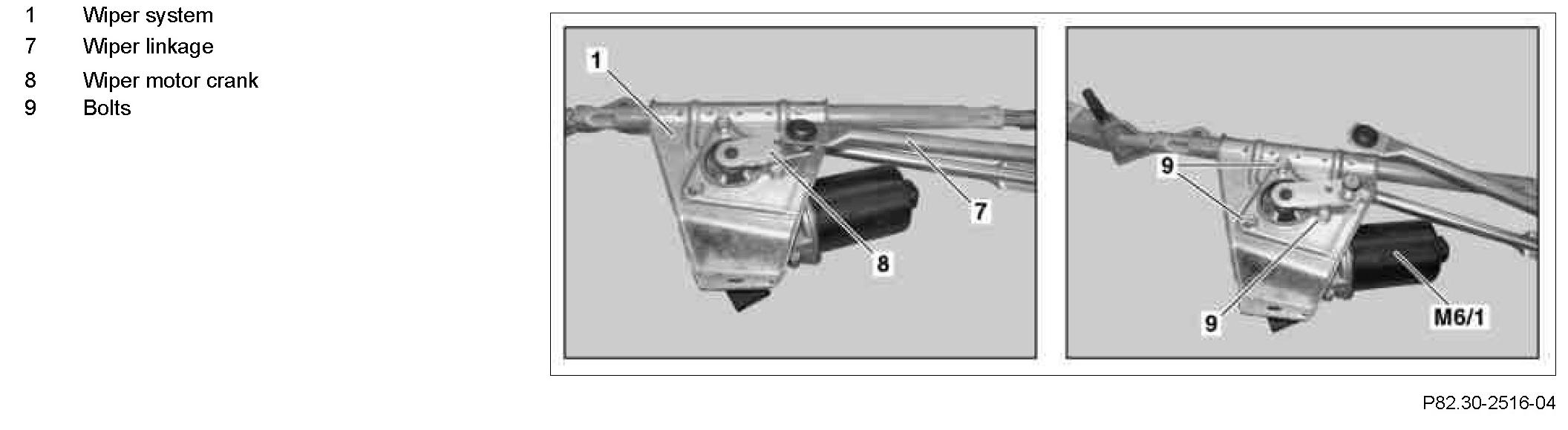

Steps 1 - 12:

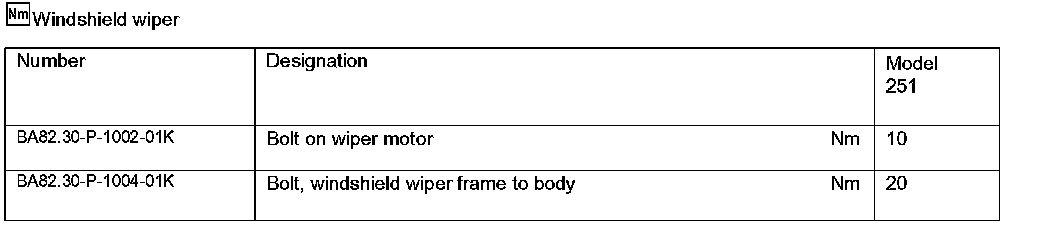

Windshield Wiper:
