AR27.10-P-0500RTA Remove/Install Transmission With Torque Converter

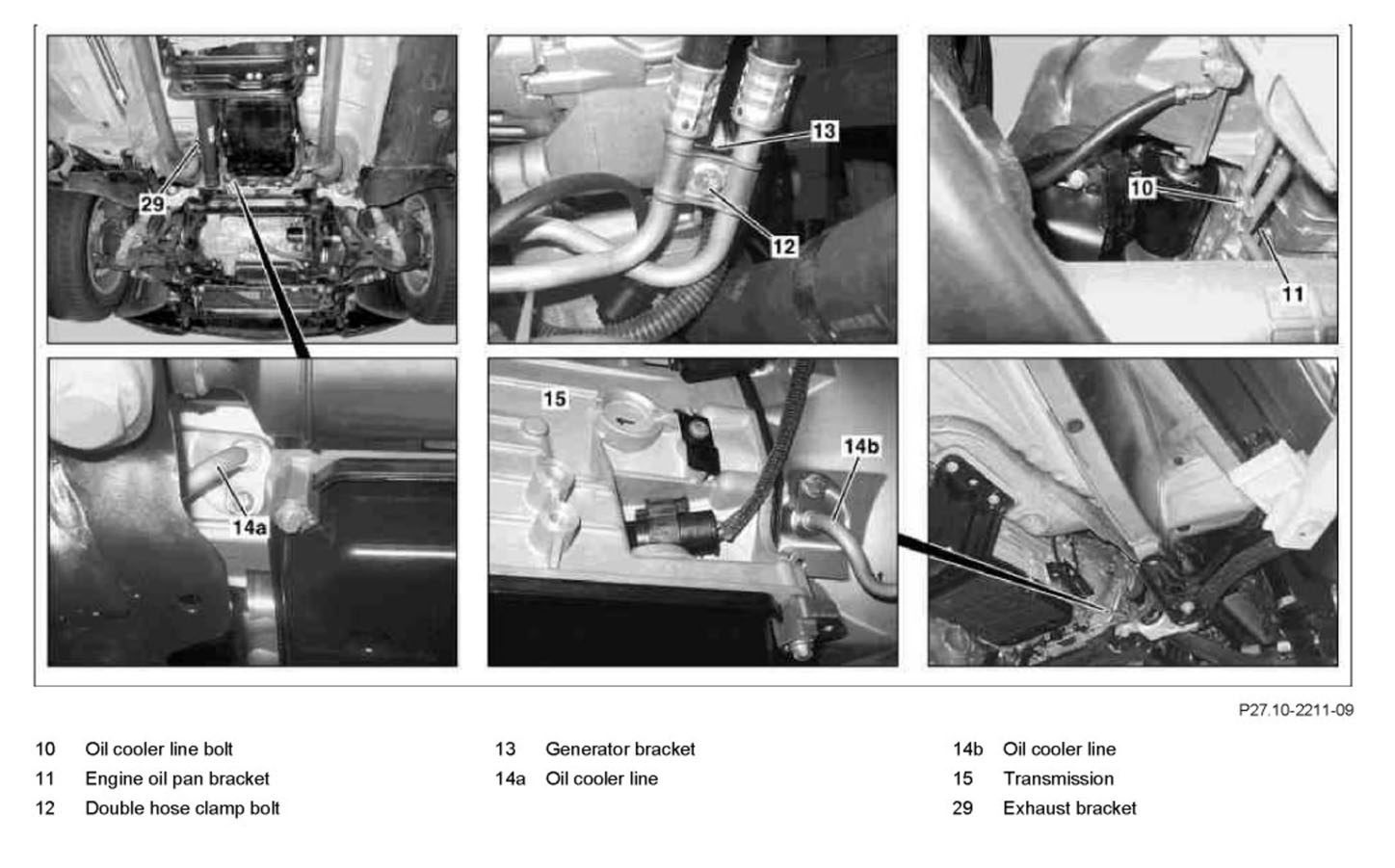

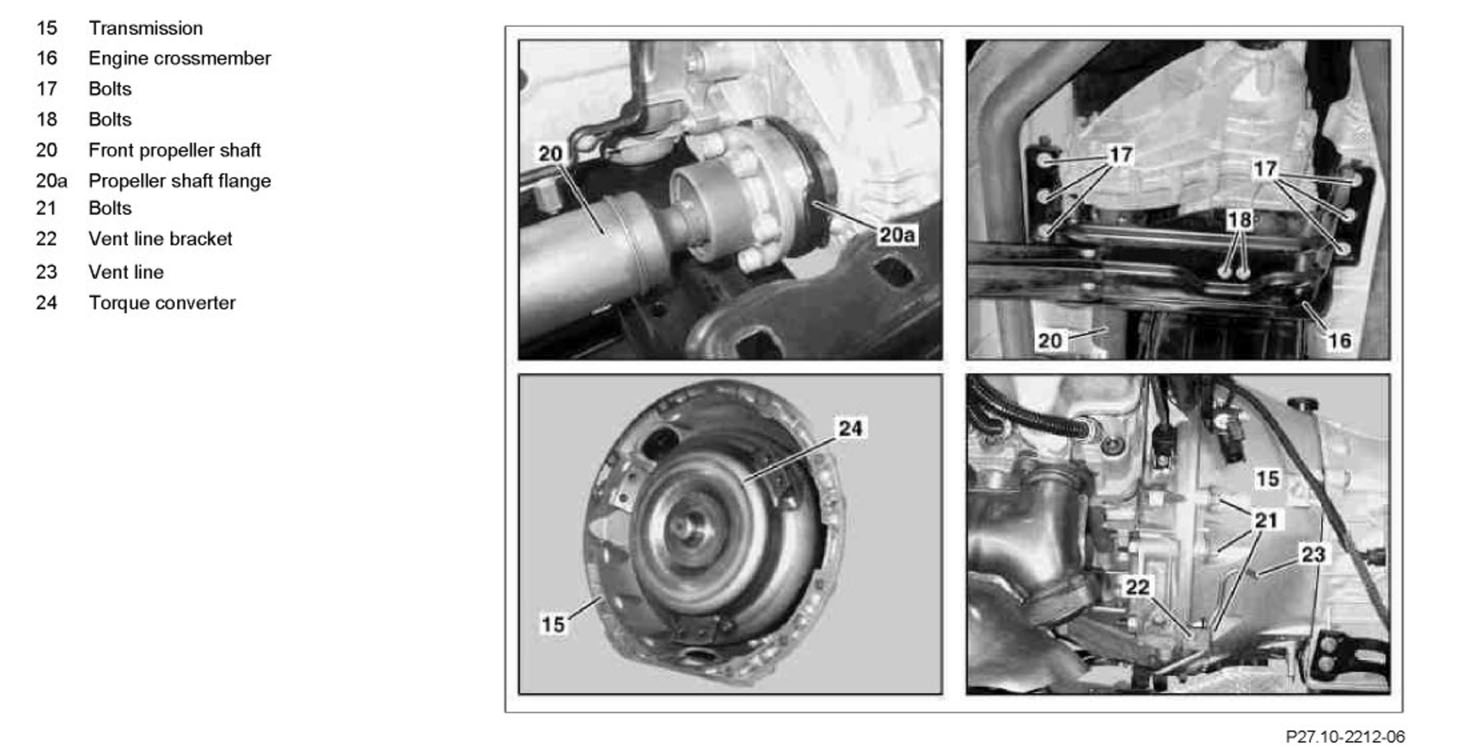

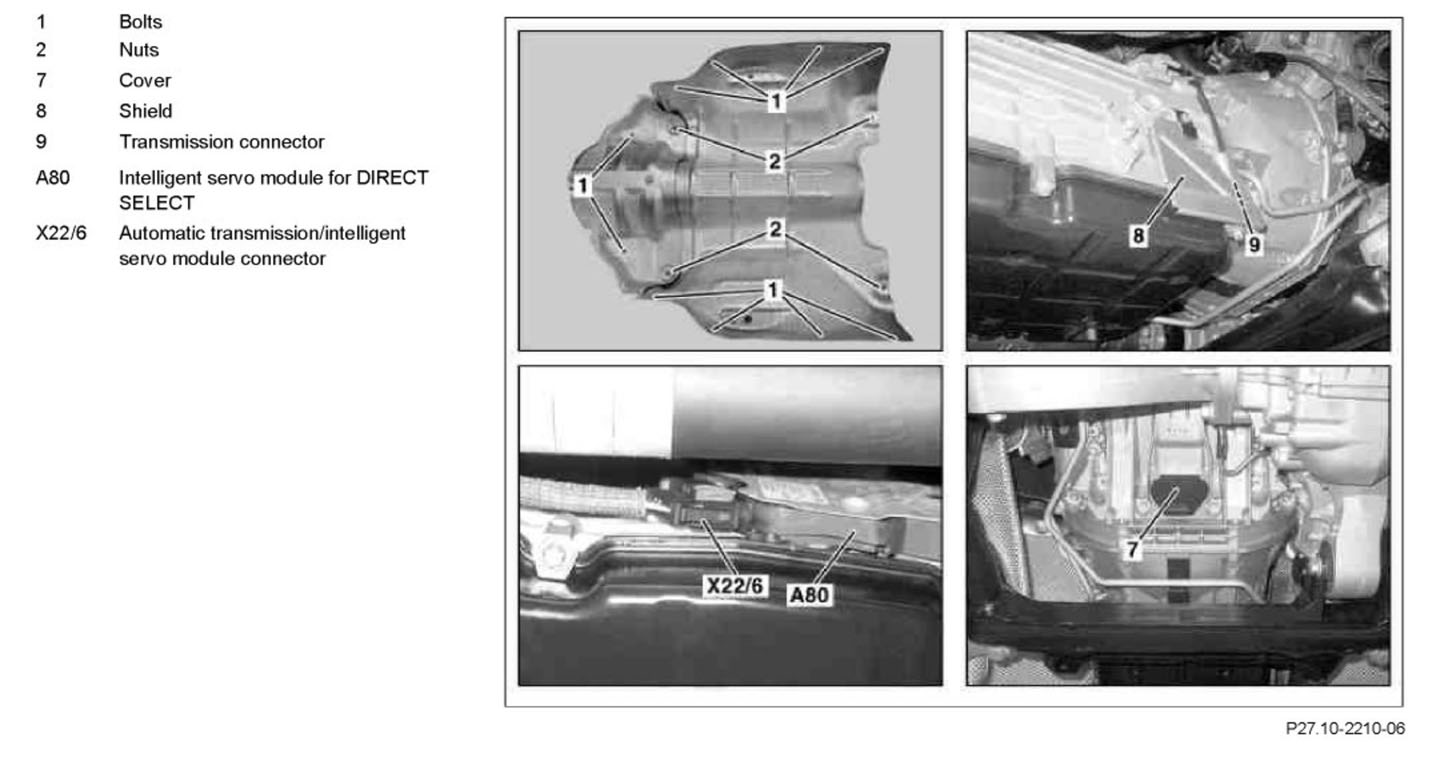

Component Identification:

Component Identification:

Component Identification:

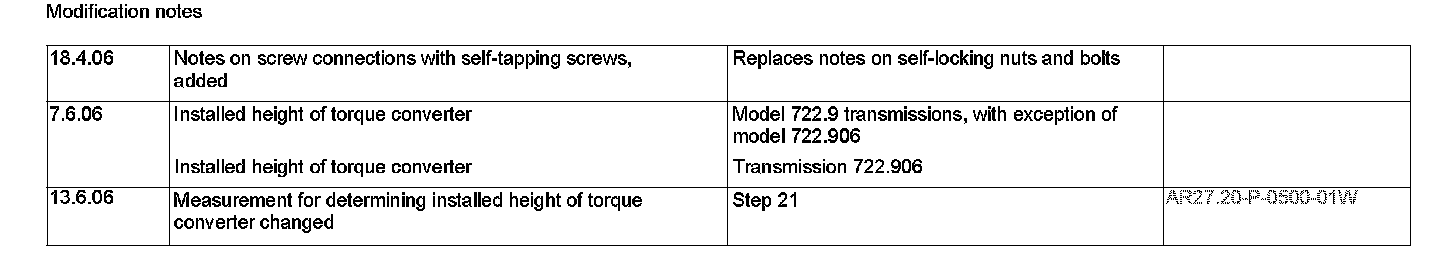

Modification notes:

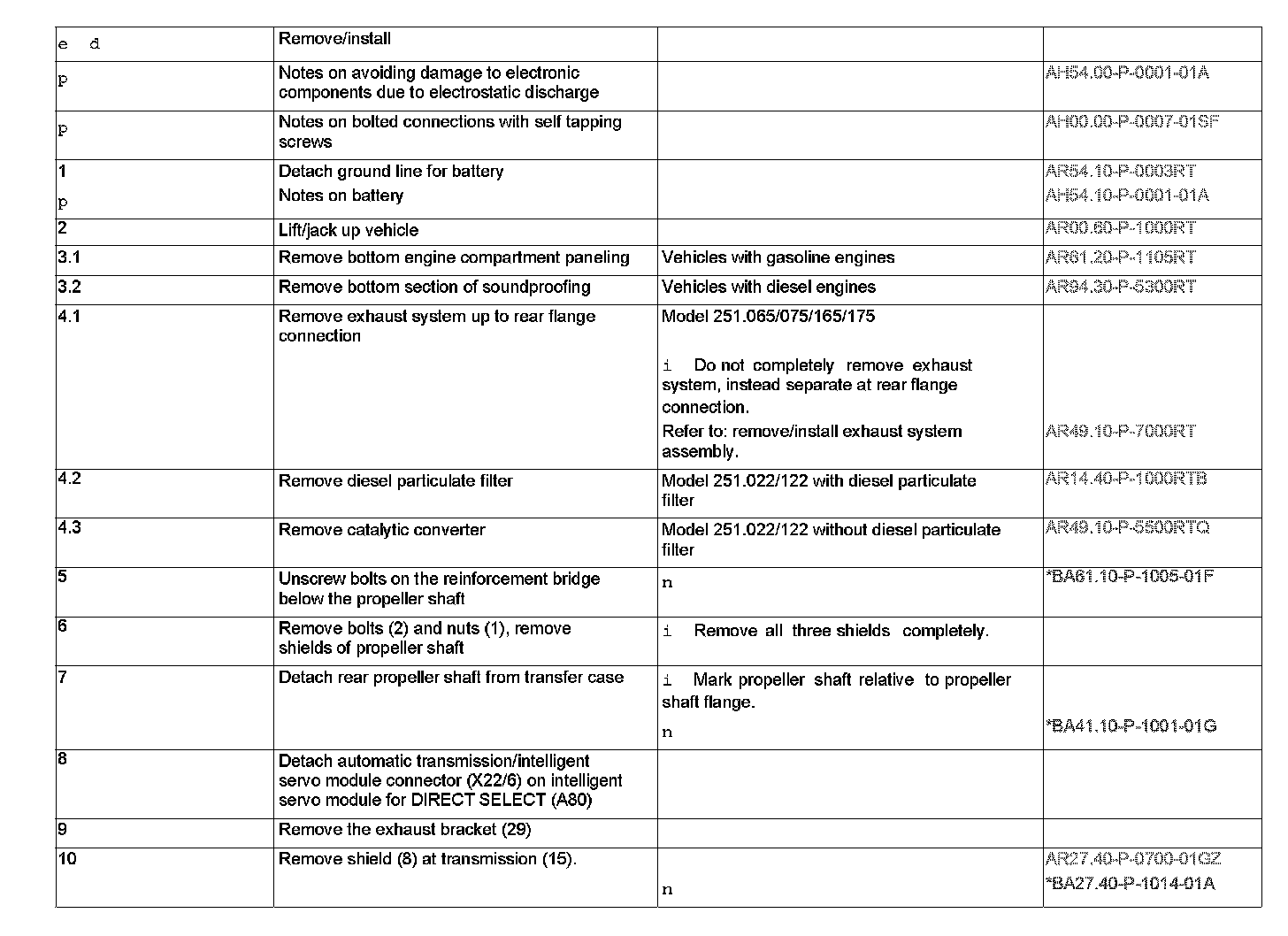

Steps 1-10:

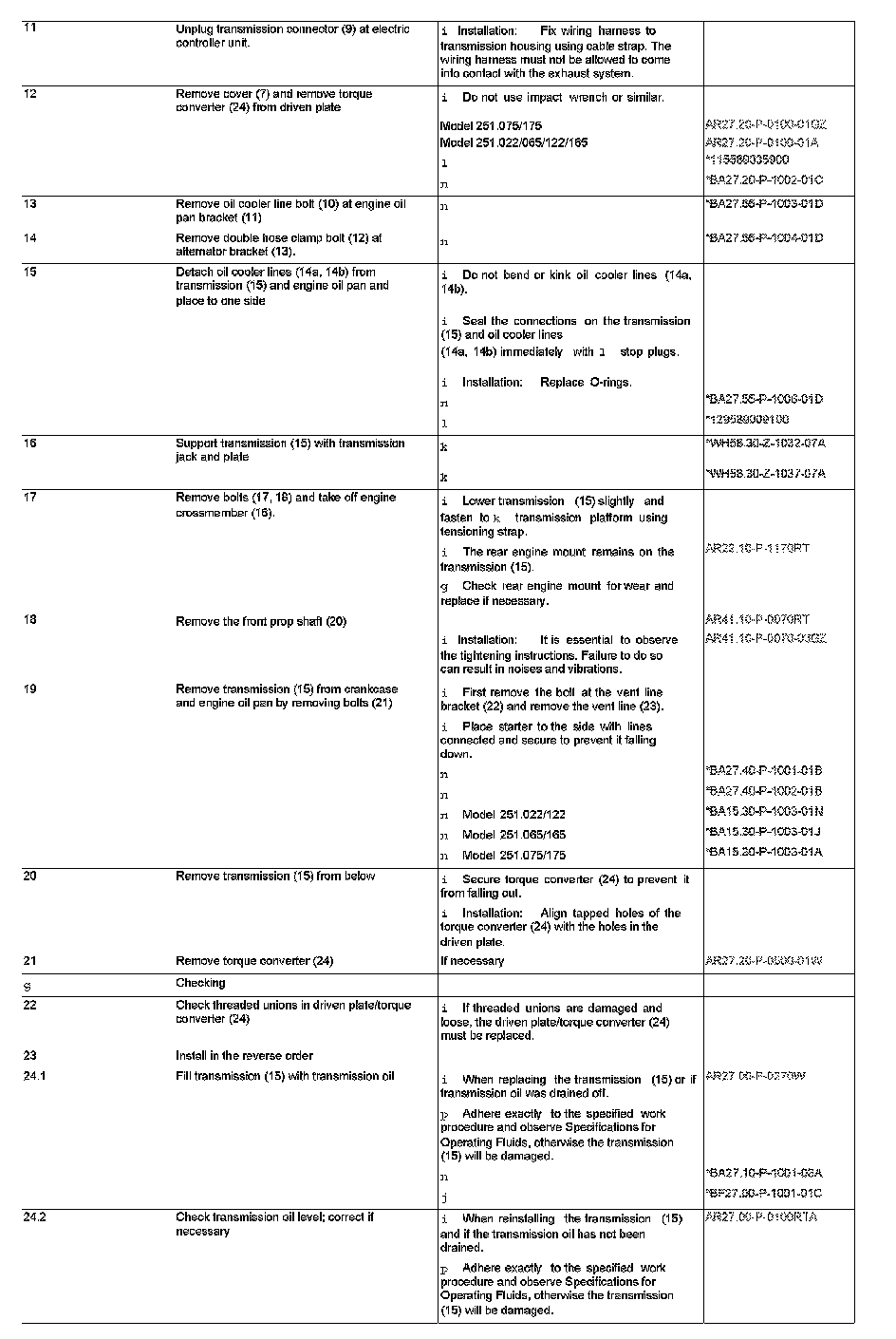

Remove/install Steps 11-24.2:

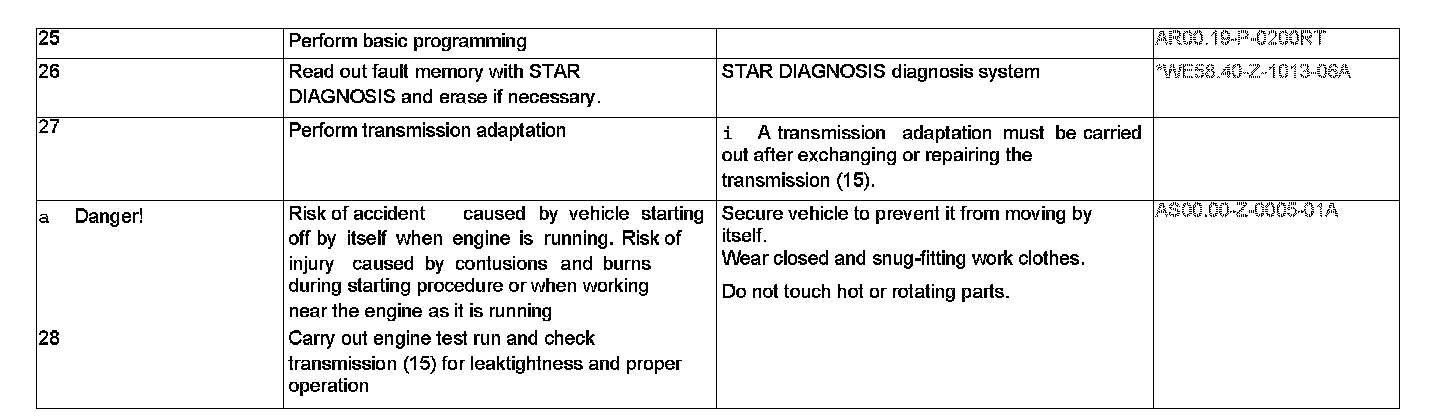

Remove/install Steps 25-28:

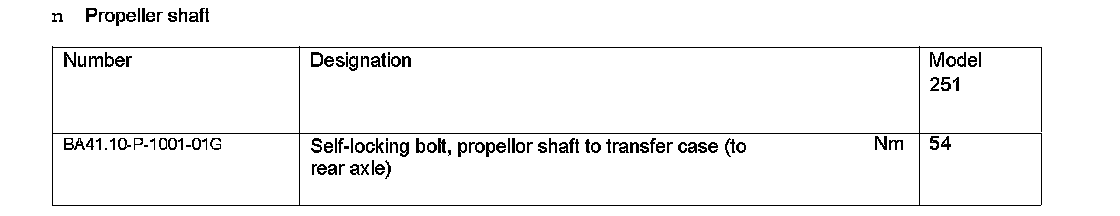

Propeller shaft:

Frame floor assembly:

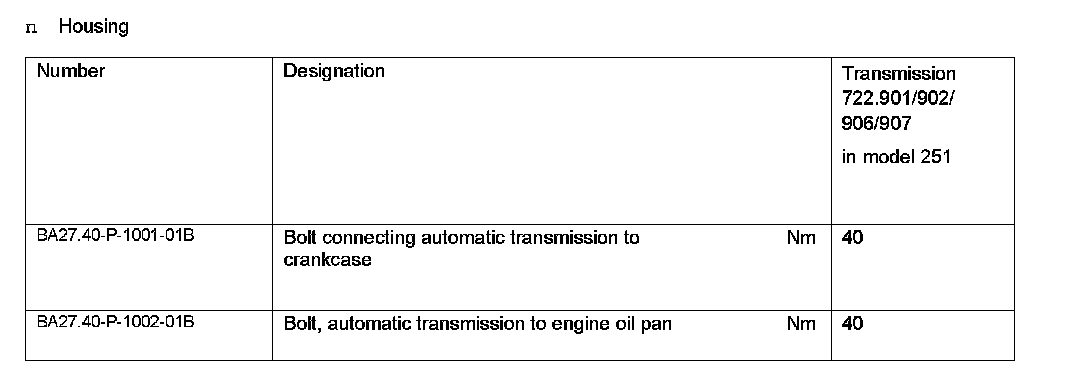

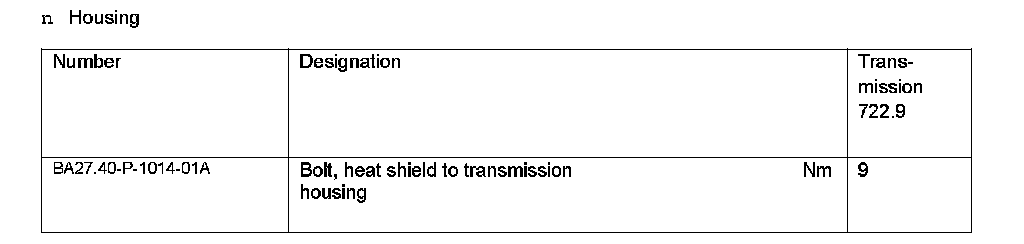

Housing:

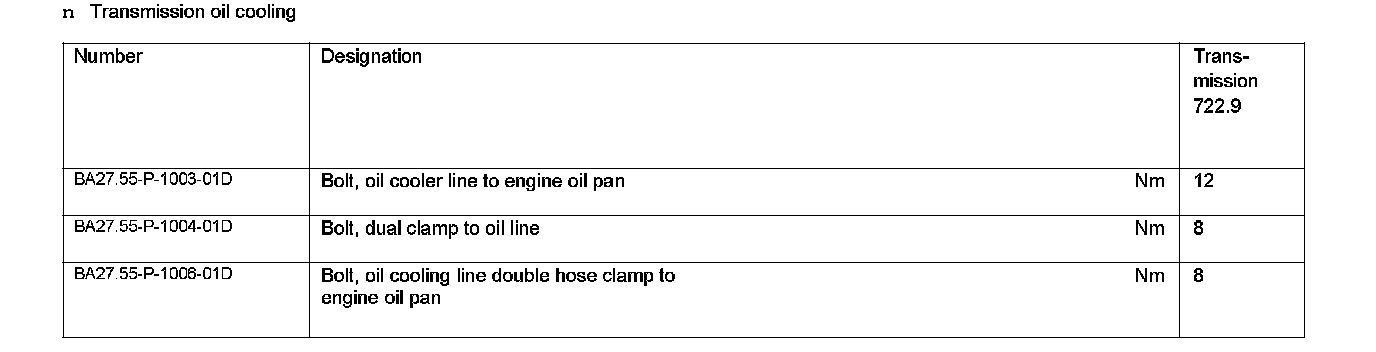

Transmission oil cooling:

Housing:

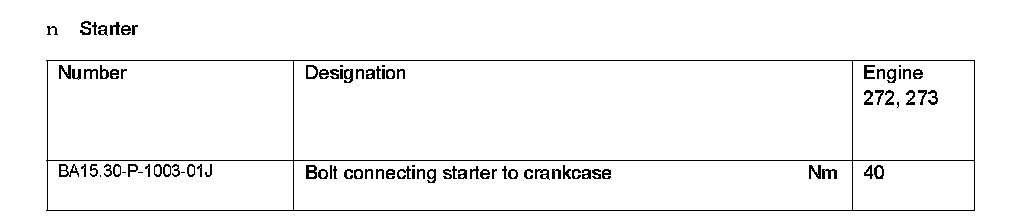

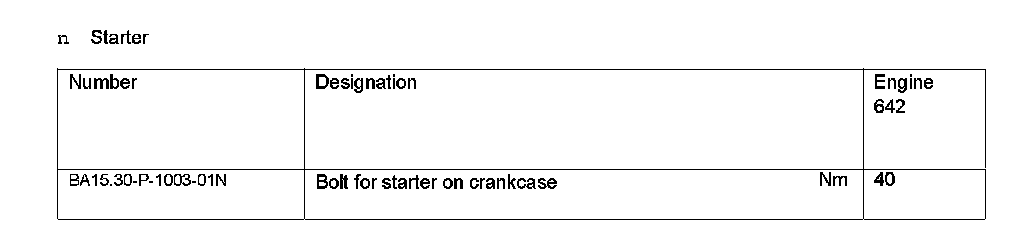

Starter:

Starter:

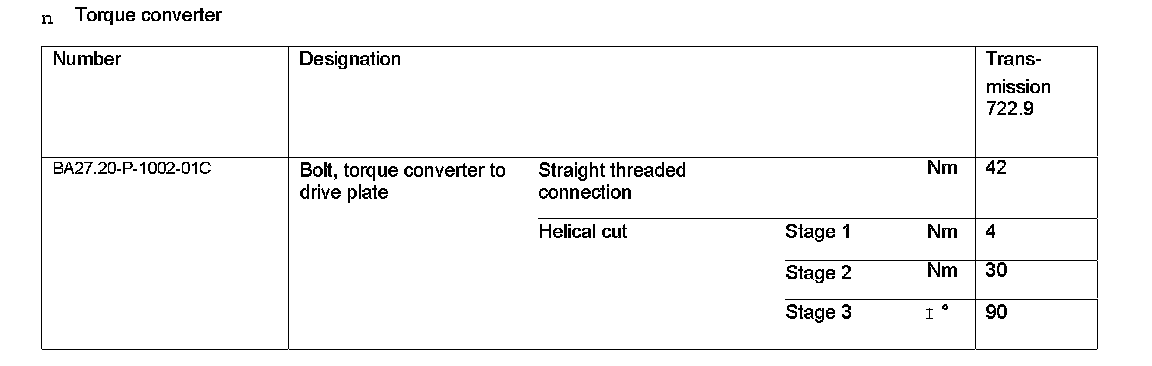

Torque converter:

Starter:

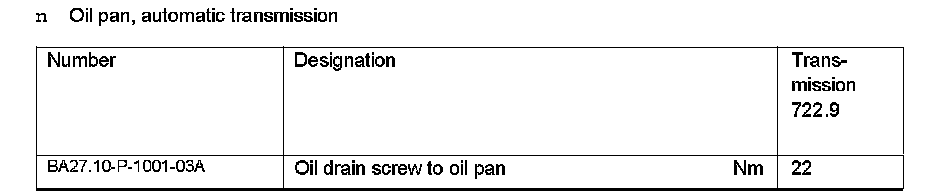

Oil pan, automatic transmission:

Starter:

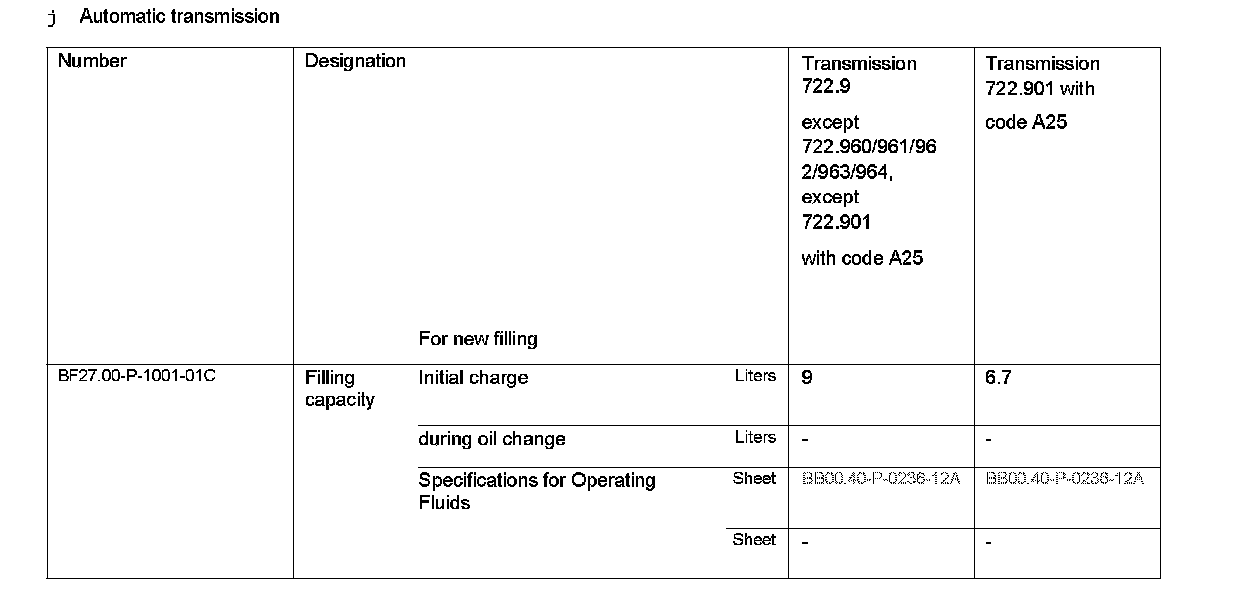

Automatic transmission:

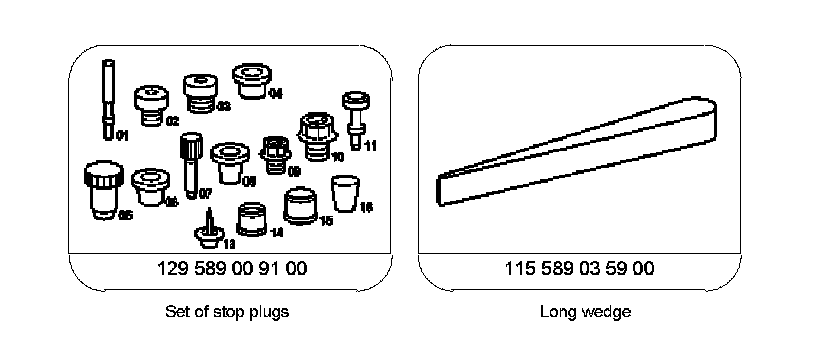

Special Tools:

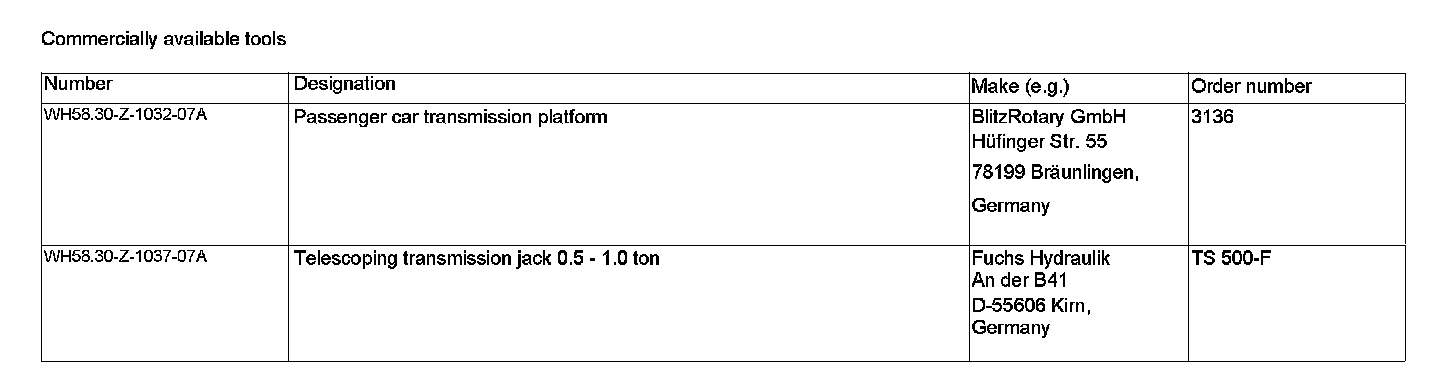

Commercially available tools:

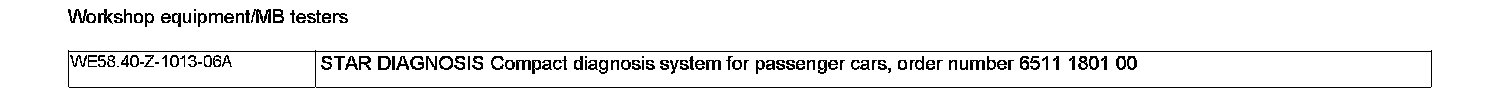

Workshop equipment/MB testers:
