AR27.10-P-0500RTA Remove/Install Transmission With Torque Converter

AR27.10-P-0500RTA Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 in MODEL 251 with ENGINE 113, 272, 273, 276, 642





1 Bolts
2 Nuts
7 Cover
8 Shield
9 Transmission connector

A80 Intelligent servo module for DIRECT SELECT
X22/6 Automatic transmission/intelligent servo module connector





10 Oil cooler line bolt
11 Engine oil pan bracket
12 Double hose clamp bolt
13 Alternator bracket
14a Oil cooler line
14b Oil cooler line
15 Transmission
29 Exhaust bracket





15 Transmission
16 Engine crossmember
17 Bolts
18 Bolts
20 Front propeller shaft
20a Propeller shaft flange
21 Bolts
22 Vent line bracket
23 Vent line

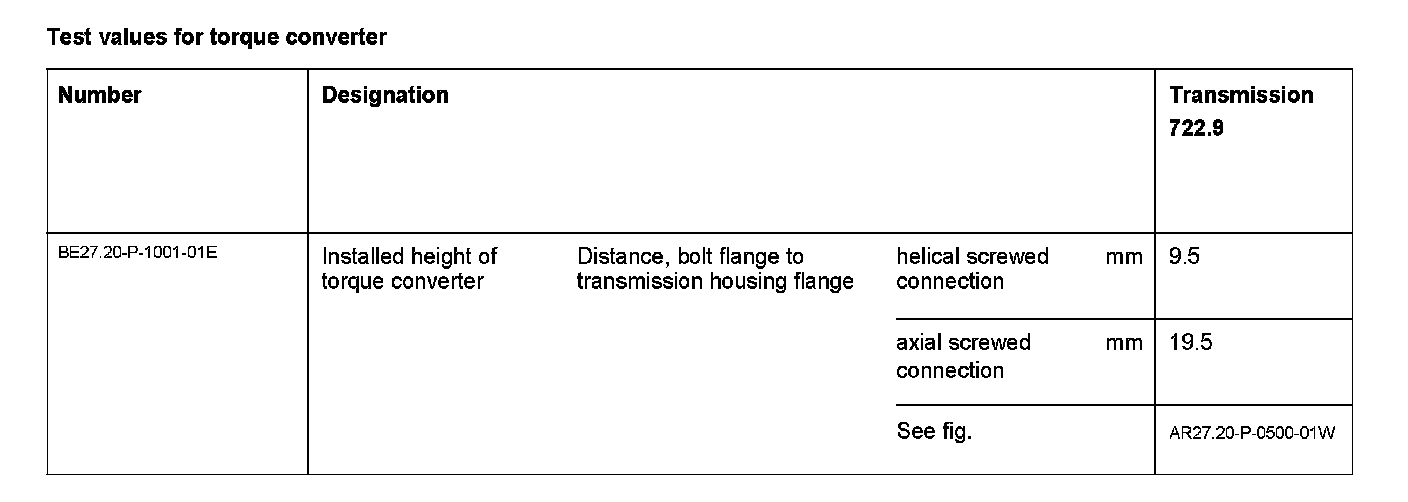

24 Torque converter









































129 589 00 91 00
Set of stop plugs





115 589 03 59 00
Long wedge





164 589 02 07 00
Retainer wrench





001 589 65 09 00
Wrench socket





168 589 00 62 00
Grab handle





126 589 04 31 00
Parallel support
