GF32.33-P-0004-06GV Electronic Rear Axle Level Control, Location of Components
GF32.33-P-0004-06GV Electronic Rear Axle Level Control, Location of Components

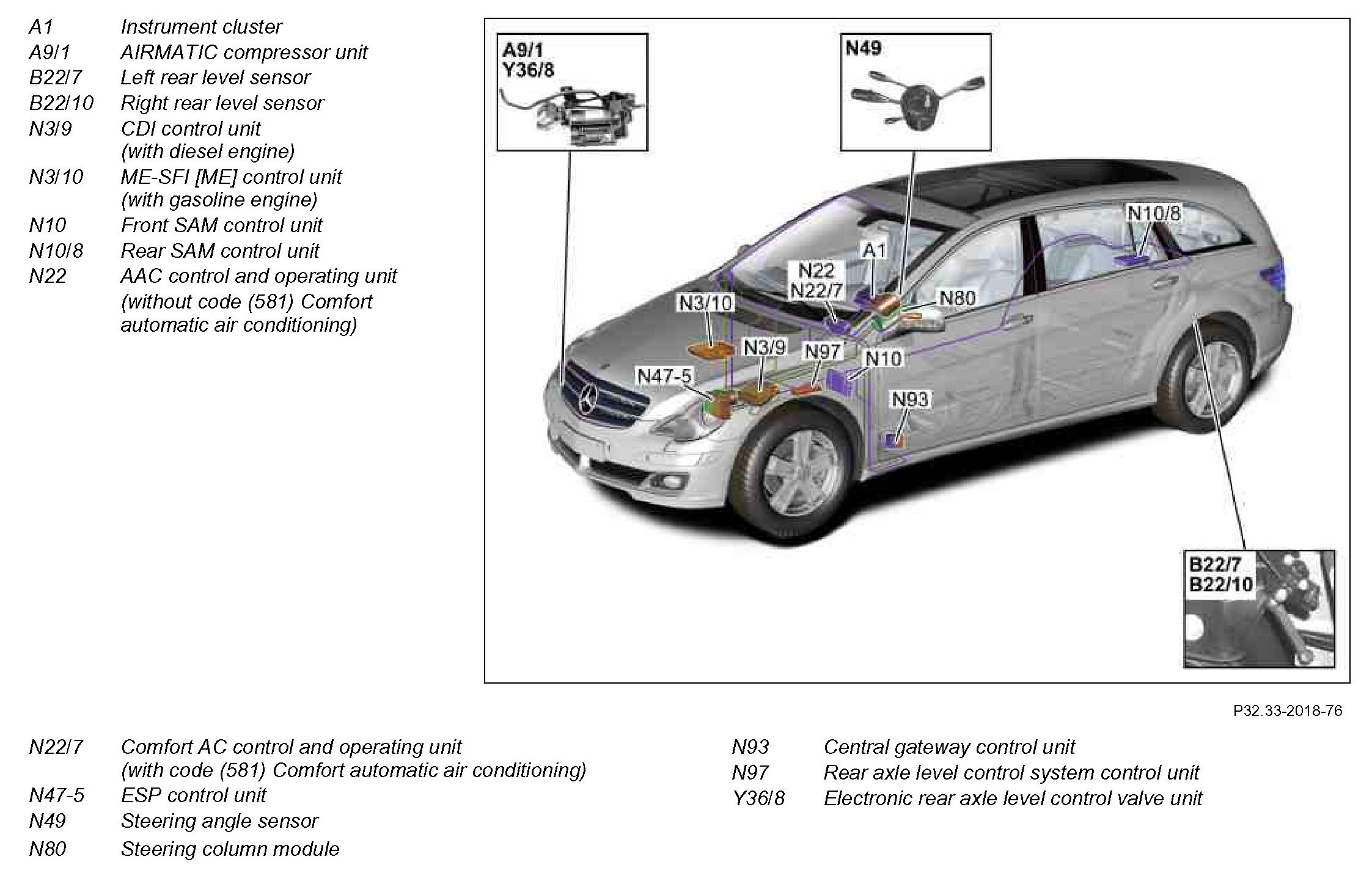

GF32.33-P-0004-06GV Electronic rear axle level control, location of components
- with CODE (488) Steel/air suspension
- as of model year 09
Component Identification:
