Accumulator: Service and Repair

AR32.22-P-2017RT Removing and installing AIRmatic central reservoir
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)

Component Identification:

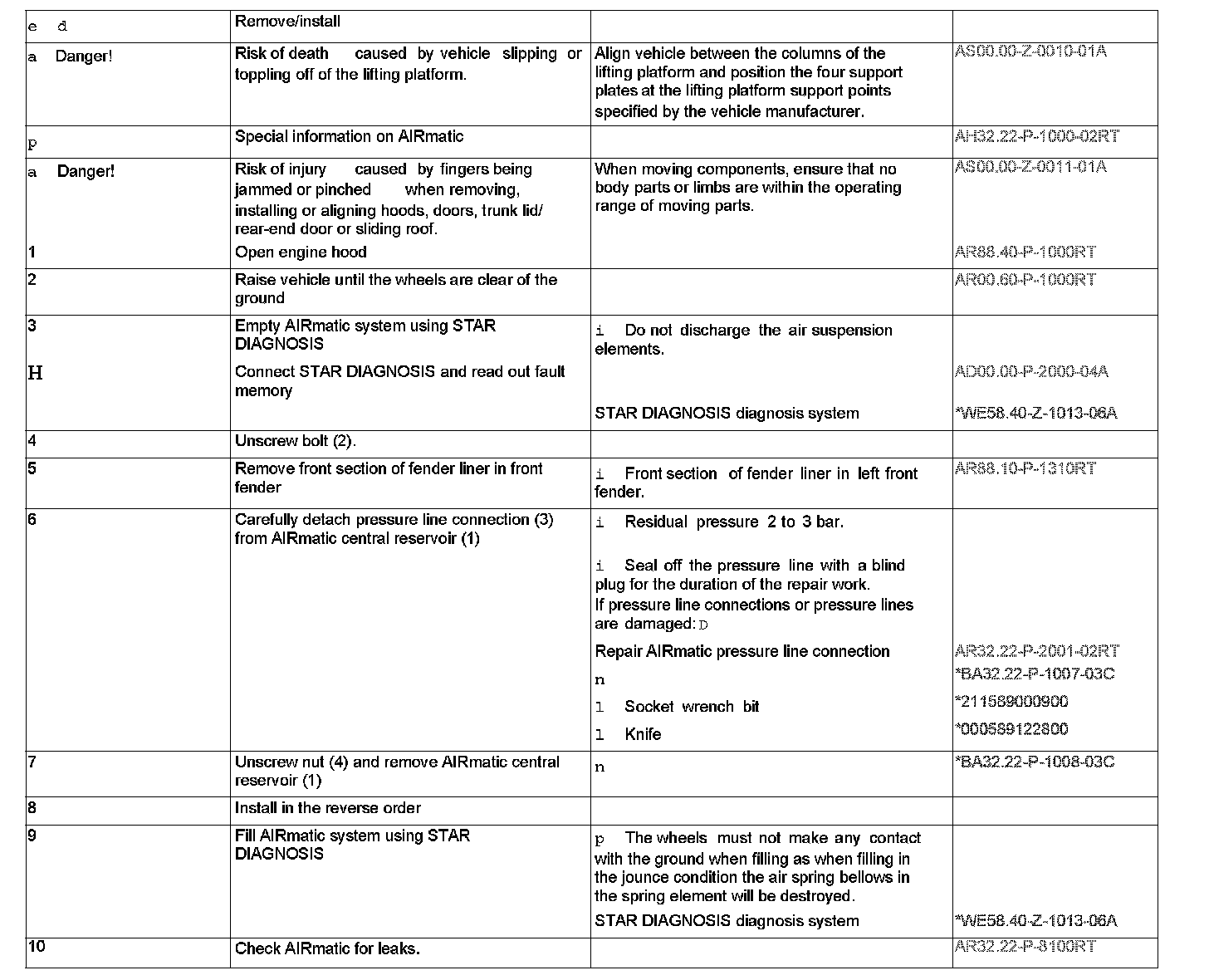

Steps 1-10:

Air suspension:

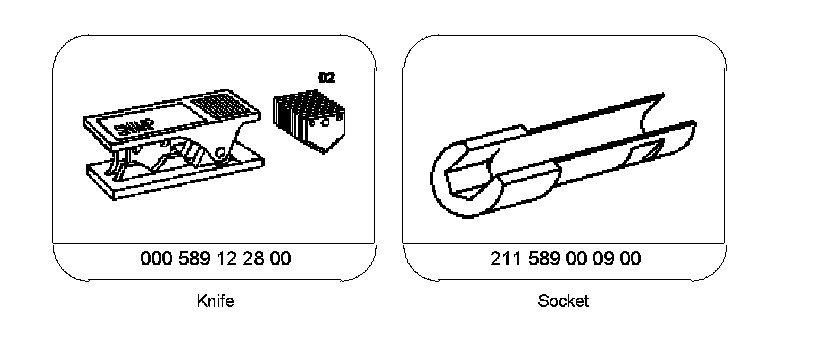

Special Tools:

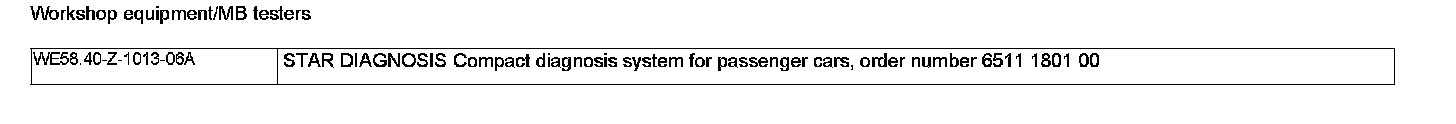

Workshop equipment/MB testers:
