AR35.20-P-0117RT Remove/Install Supporting Joint on Wheel Carrier (Wheel Carrier Removed)

AR35.20-P-0117RT Remove/Install Supporting Joint On Wheel Carrier (Wheel Carrier Removed)
MODEL 251

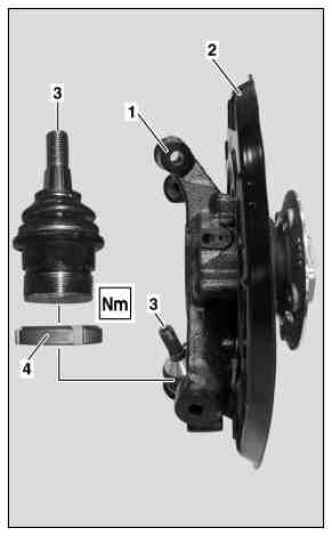

1 Wheel carrier
2 Brake caliper dust shield
3 Support joint
4 Slotted locknut














164 589 03 43 00
Removal and insertion tool





652 589 00 33 21
Hand pump





652 589 00 33 22
Hollow cylinder





652 589 00 33 23
Hydraulic hose (complete)





385 589 00 07 00
Claw-type wrench
