Home >> Mercedes Benz Truck >> 2012 >> R 350 4MATIC (251.157) V6-3.5L (276.958) >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection

Starting and Charging: Testing and Inspection

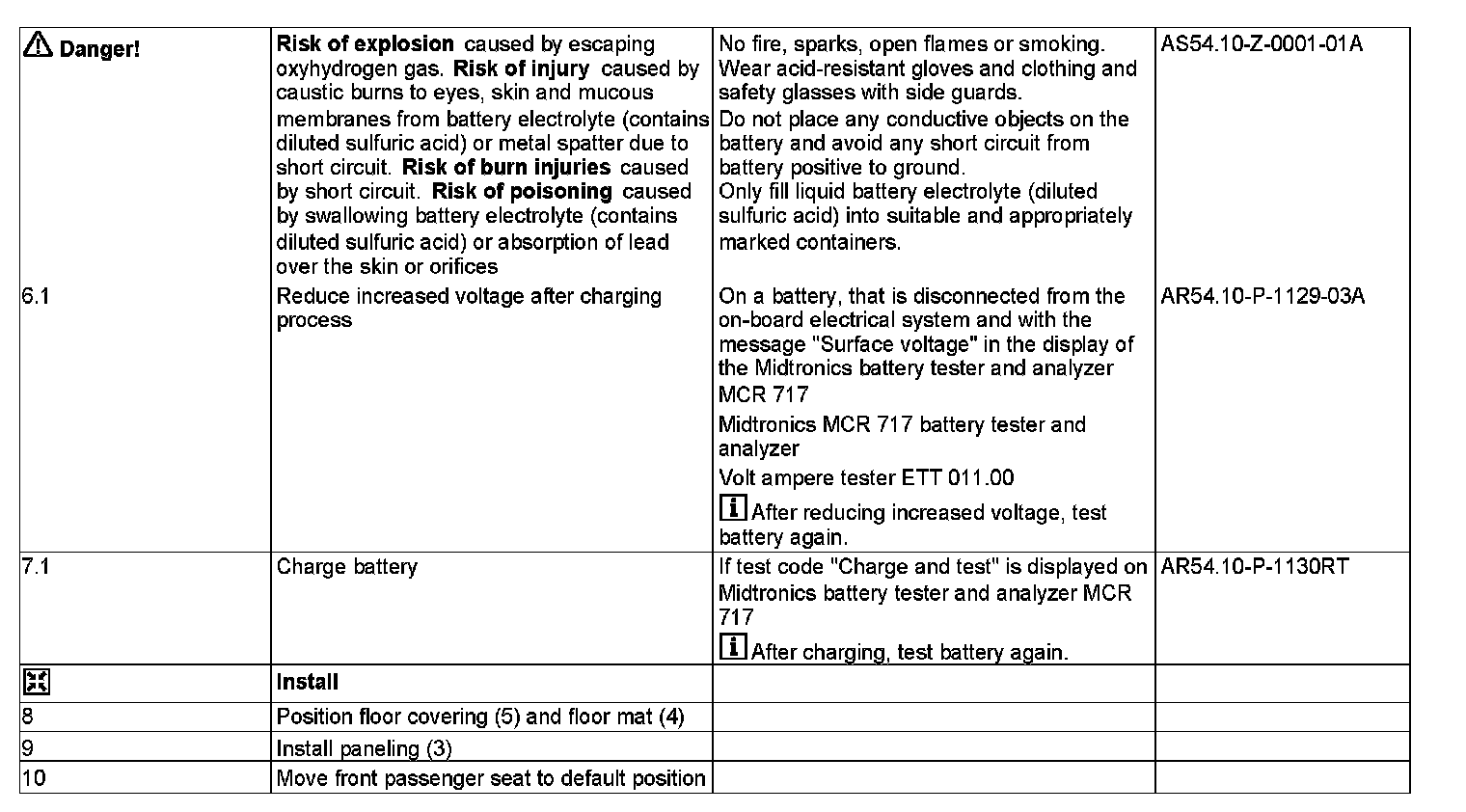

AR54.10-P-1129RT Check Condition of Battery
MODEL 251

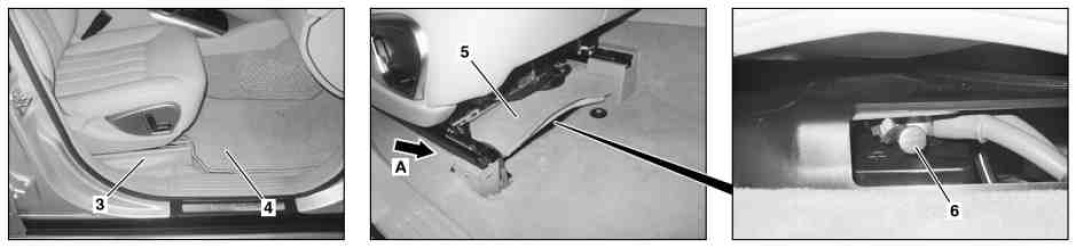

3 Cover
4 Floor mat
5 Floor Covering
6 Positive battery terminal
