Relay Box: Service and Repair

AR54.15-P-1261RT Remove Fuse and Relay Box In Rear
MODEL 251





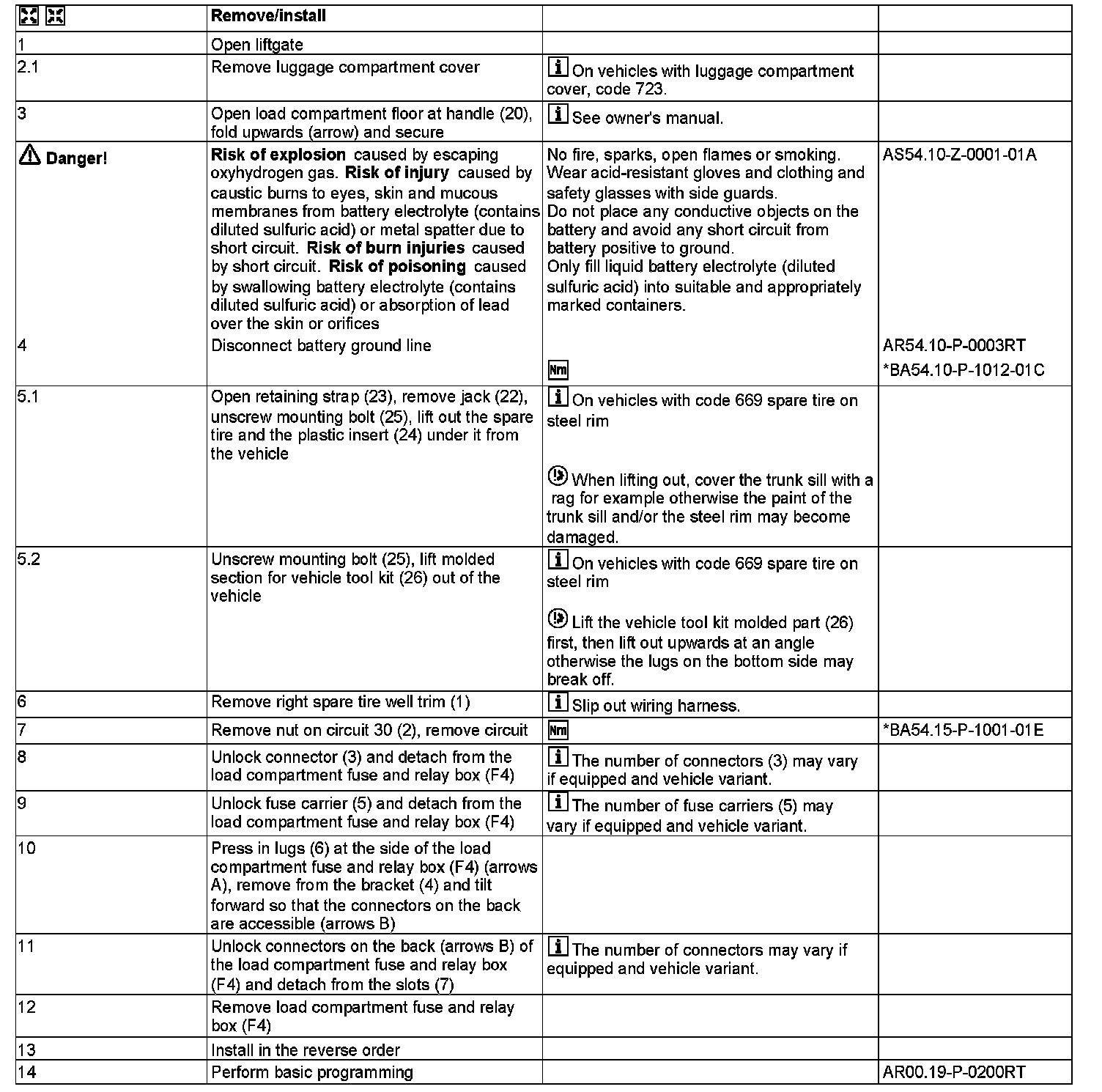

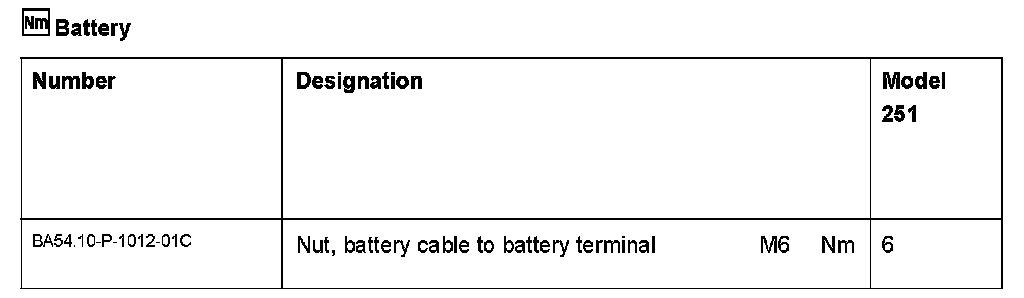

Shown on vehicle with spare tire on steel rim, code 669

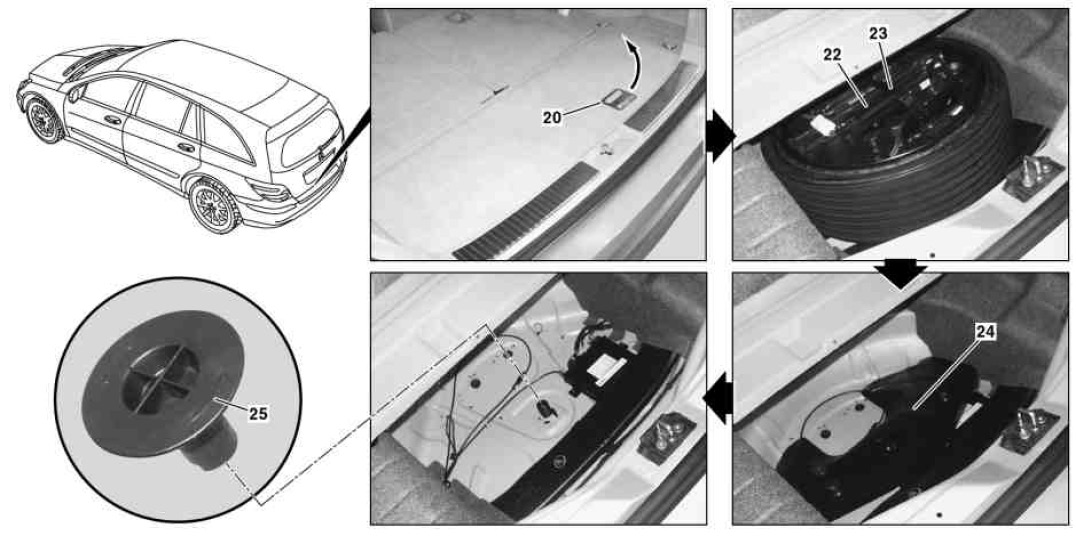

20 Handle
22 Vehicle jack
23 Retaining strap
24 Plastic insert
25 Mounting screw

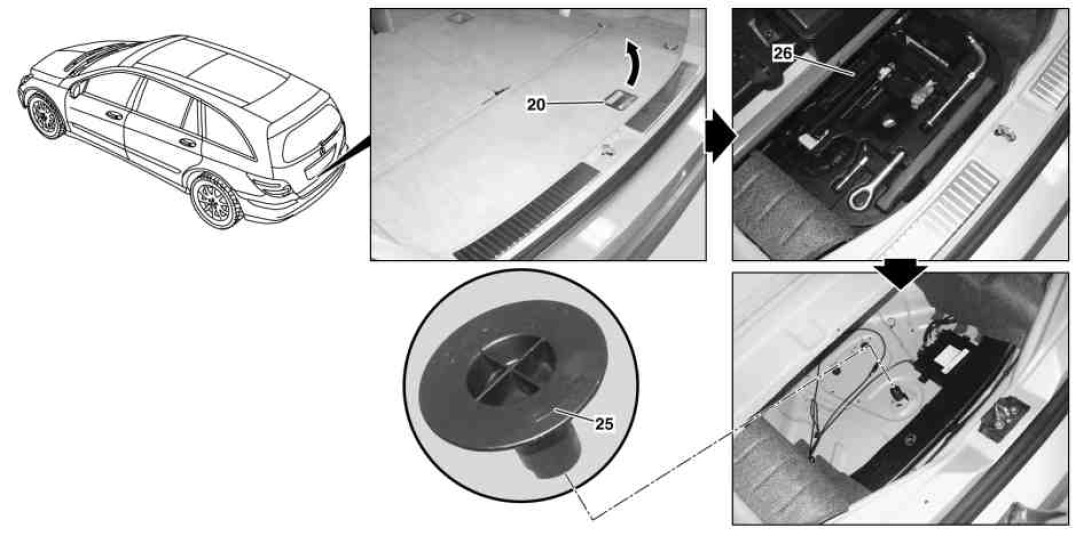

Shown on vehicle without spare tire on steel rim, code 669
20 Handle
25 Mounting screw
26 Vehicle tool kit molded part

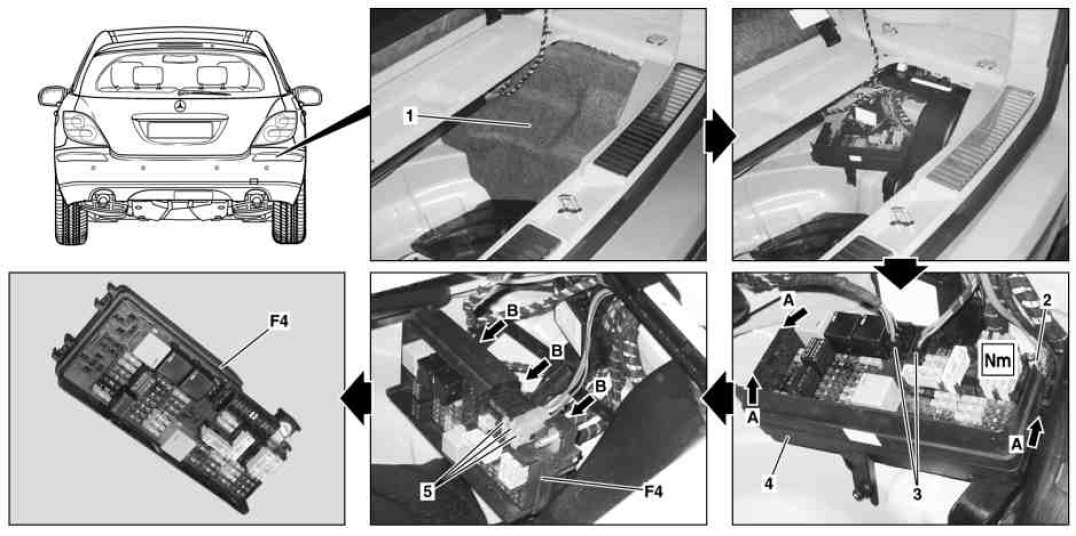

Shown on vehicle with spare tire on steel rim, code 669
1 Right spare tire well trim

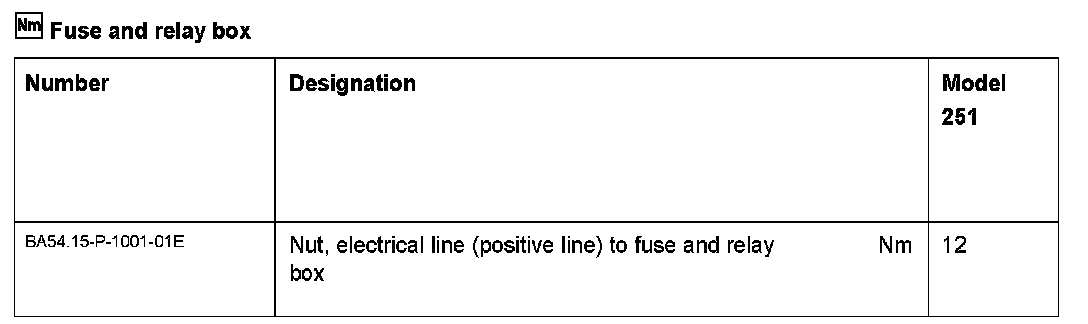

2 Nut on circuit 30
3 Connector
4 Bracket
5 Fuse carrier
F4 Load compartment fuse and relay box





6 Shackles

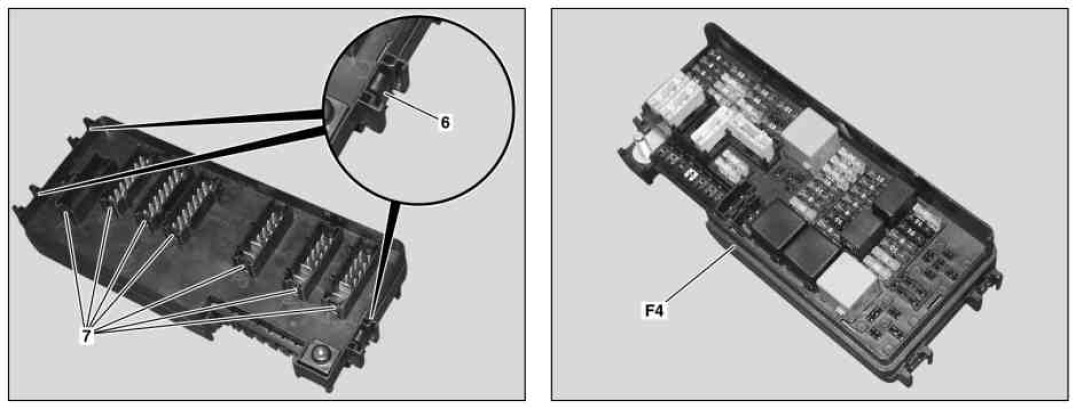

7 Plug positions
F4 Load compartment fuse and relay box
