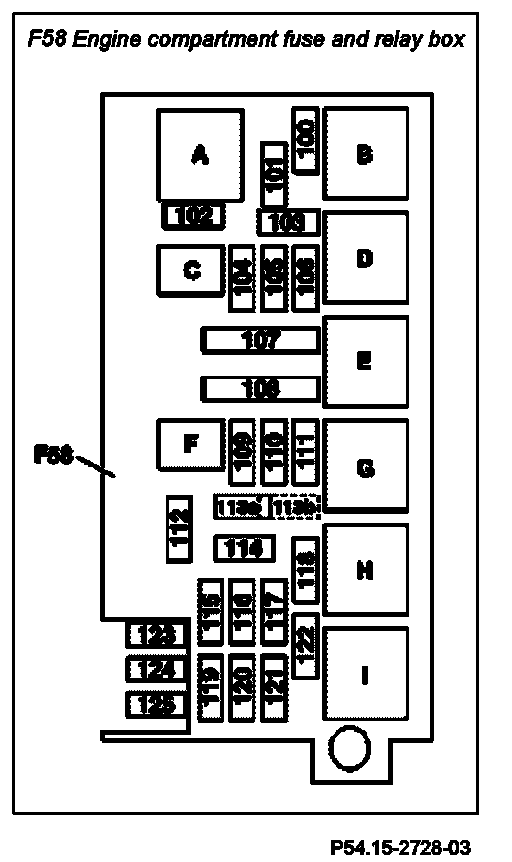

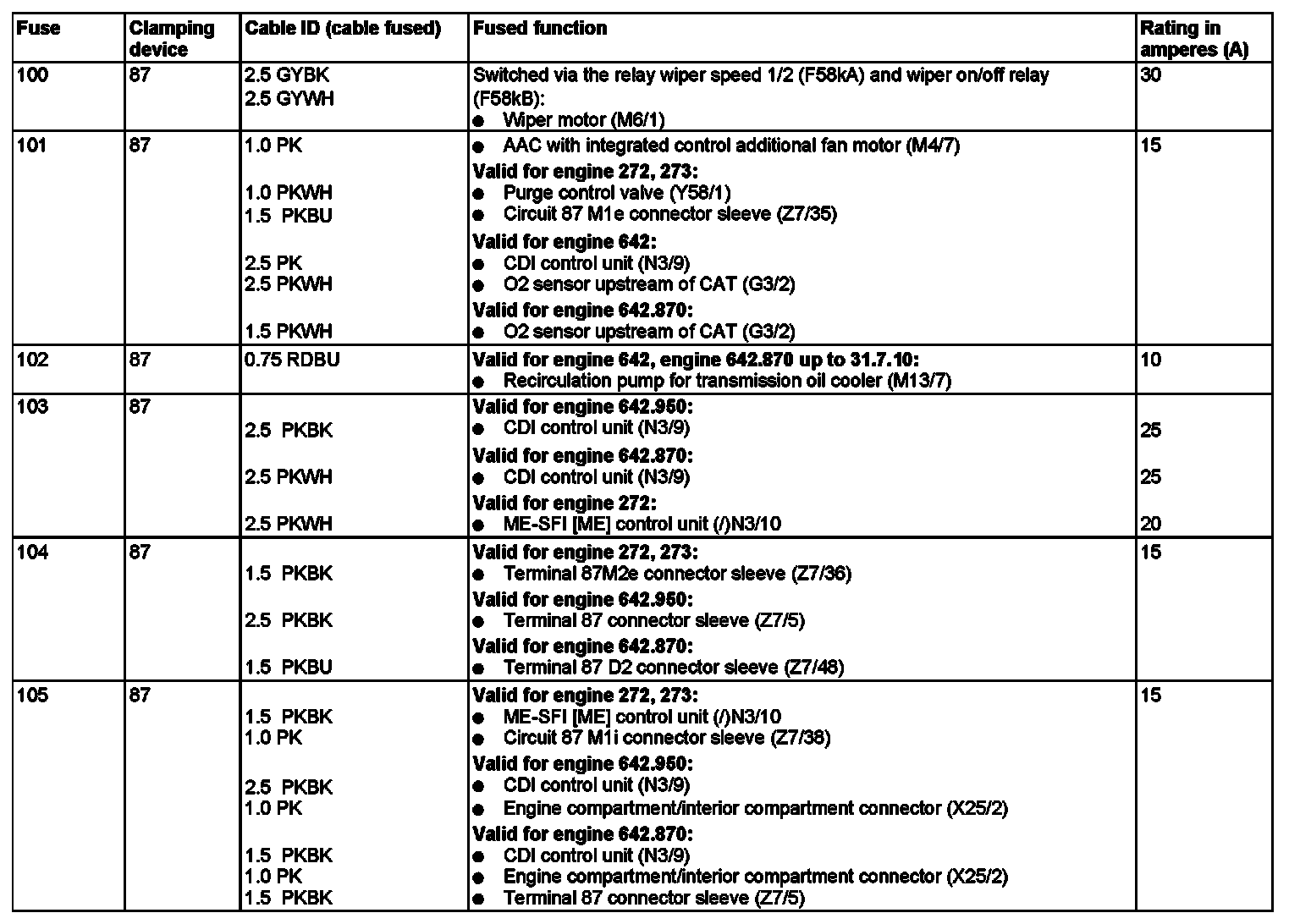

GF54.15-P-1256-02GV Fuse Assignment of Fuse and Relay Box In Right Engine Compartment




GF54.15-P-1256-02GV Fuse Assignment of Fuse and Relay Box In Right Engine Compartment
