Mercedes Benz Truck
>>
2012
>>
R 350 4MATIC (251.157) V6-3.5L (276.958)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

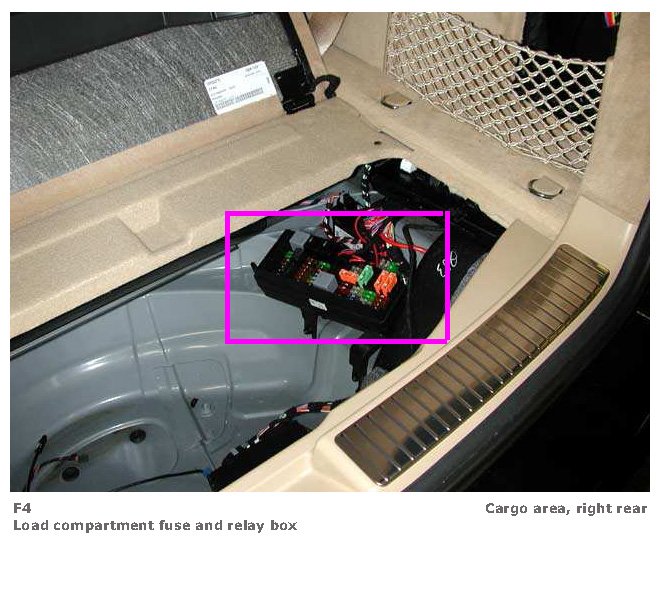

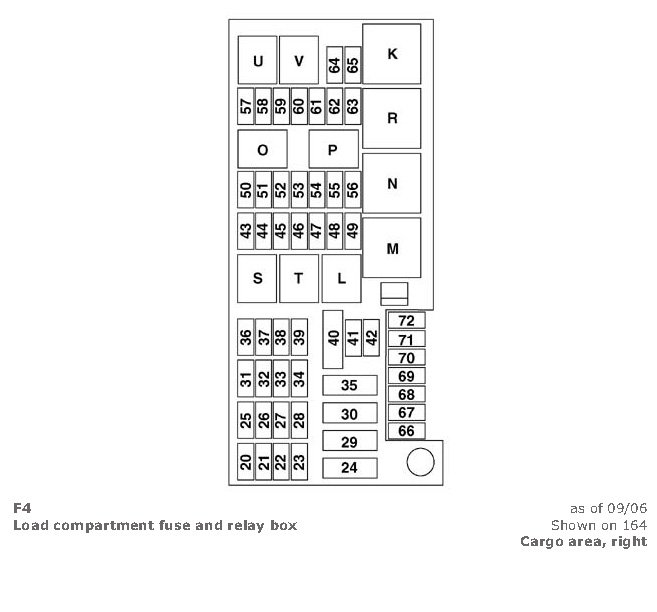

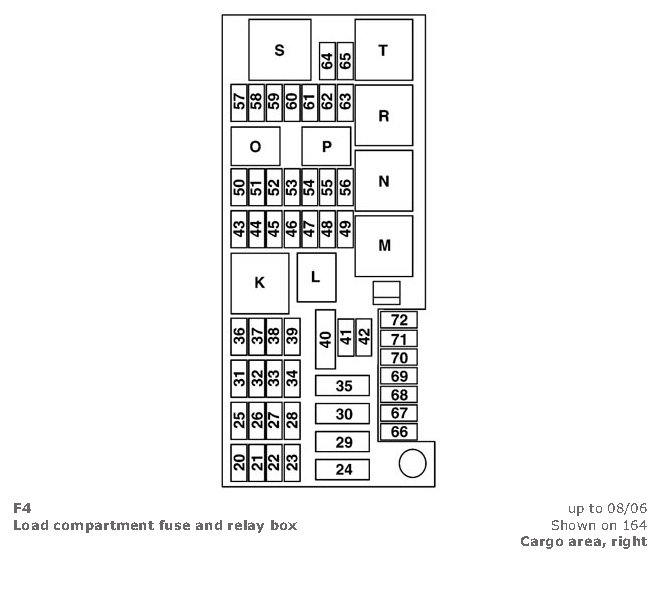

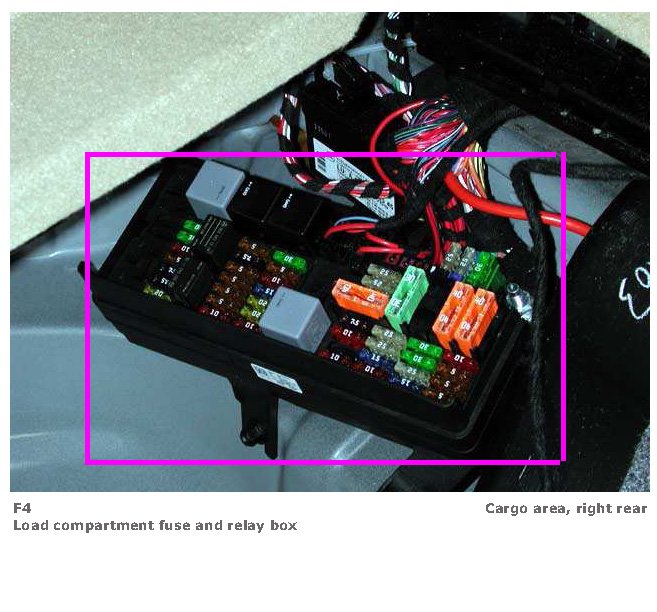

Load Compartment Fuse And Relay Box
Load Compartment Fuse And Relay Box
Load Compartment Fuse And Relay Box
