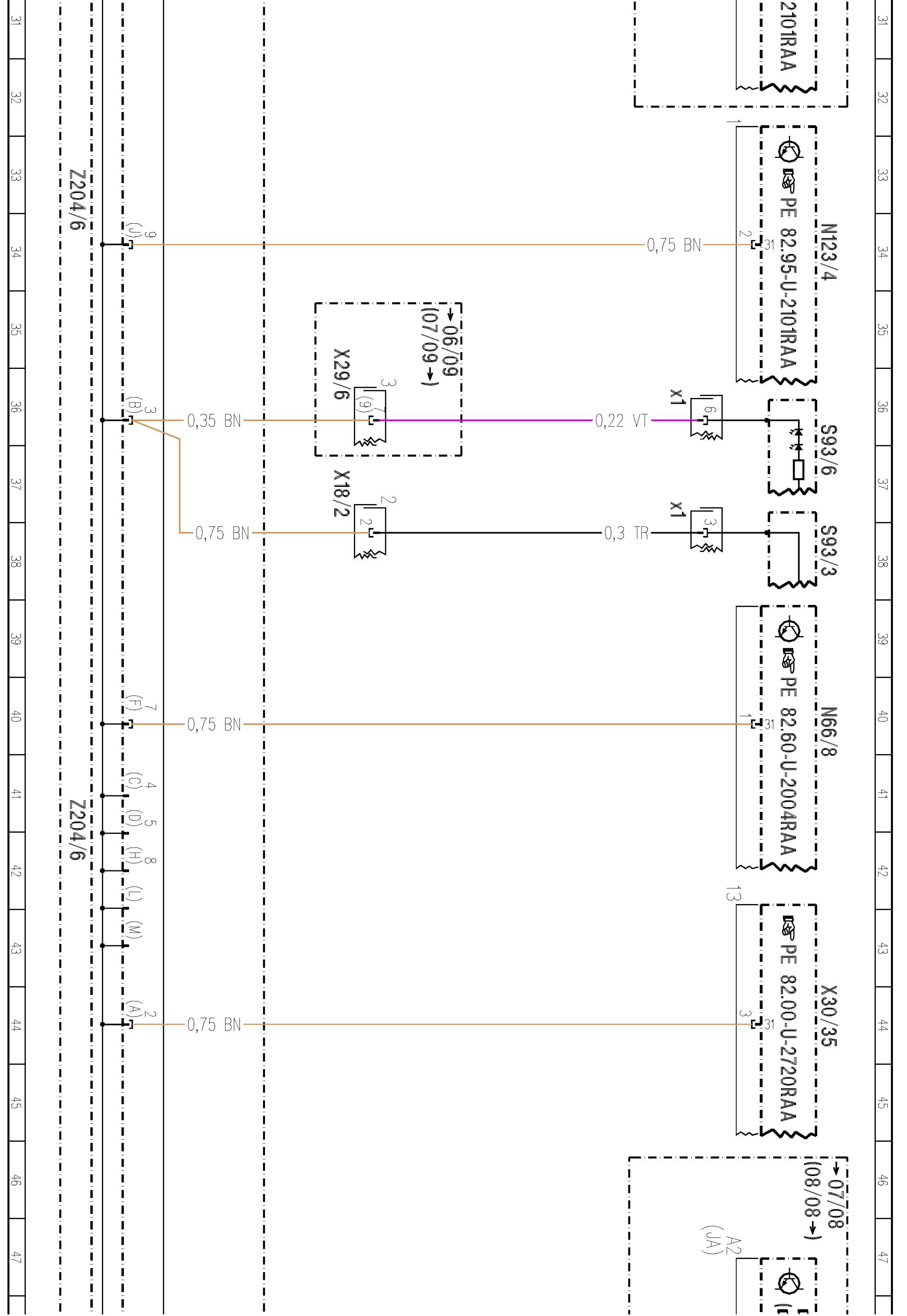

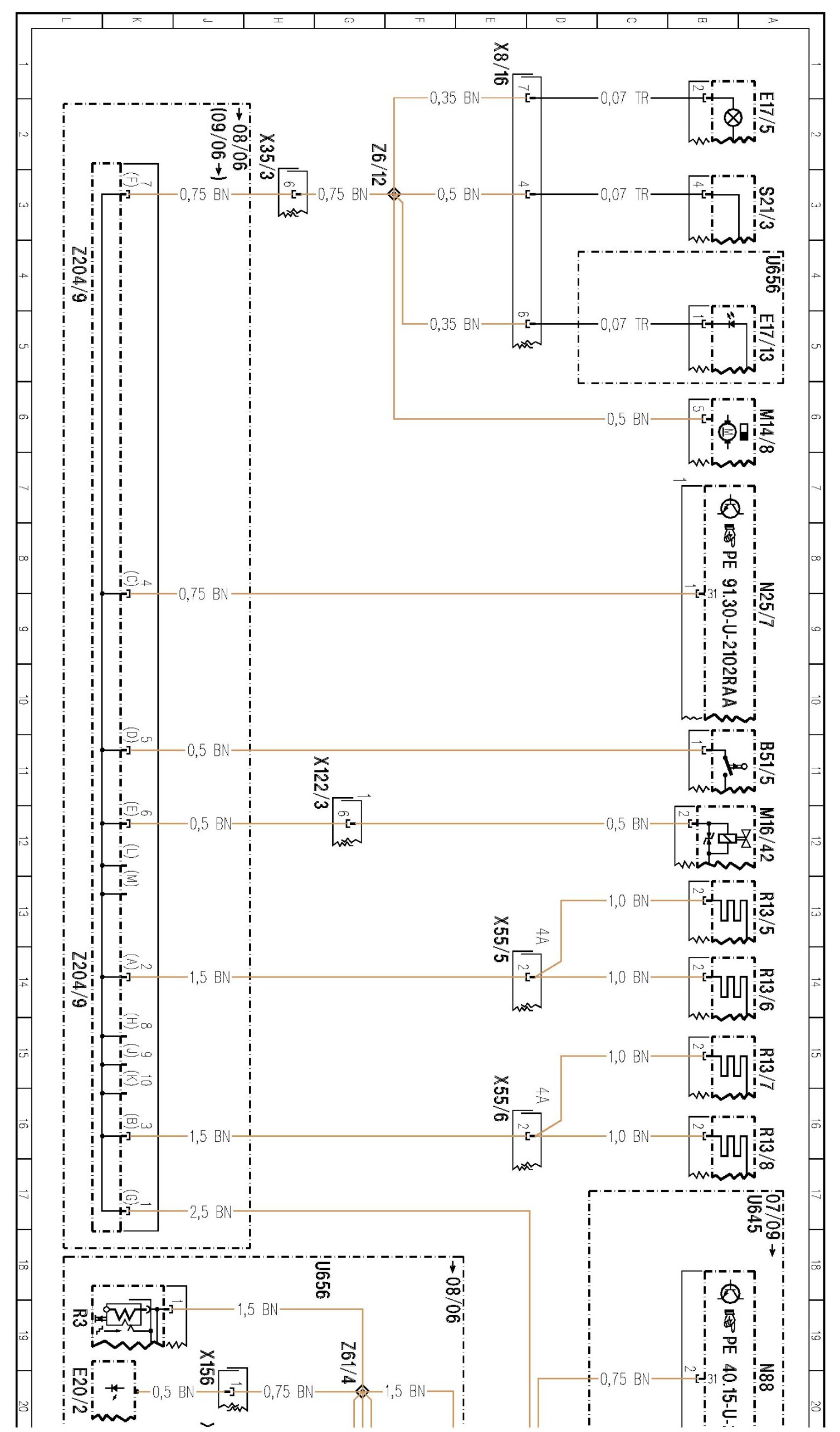

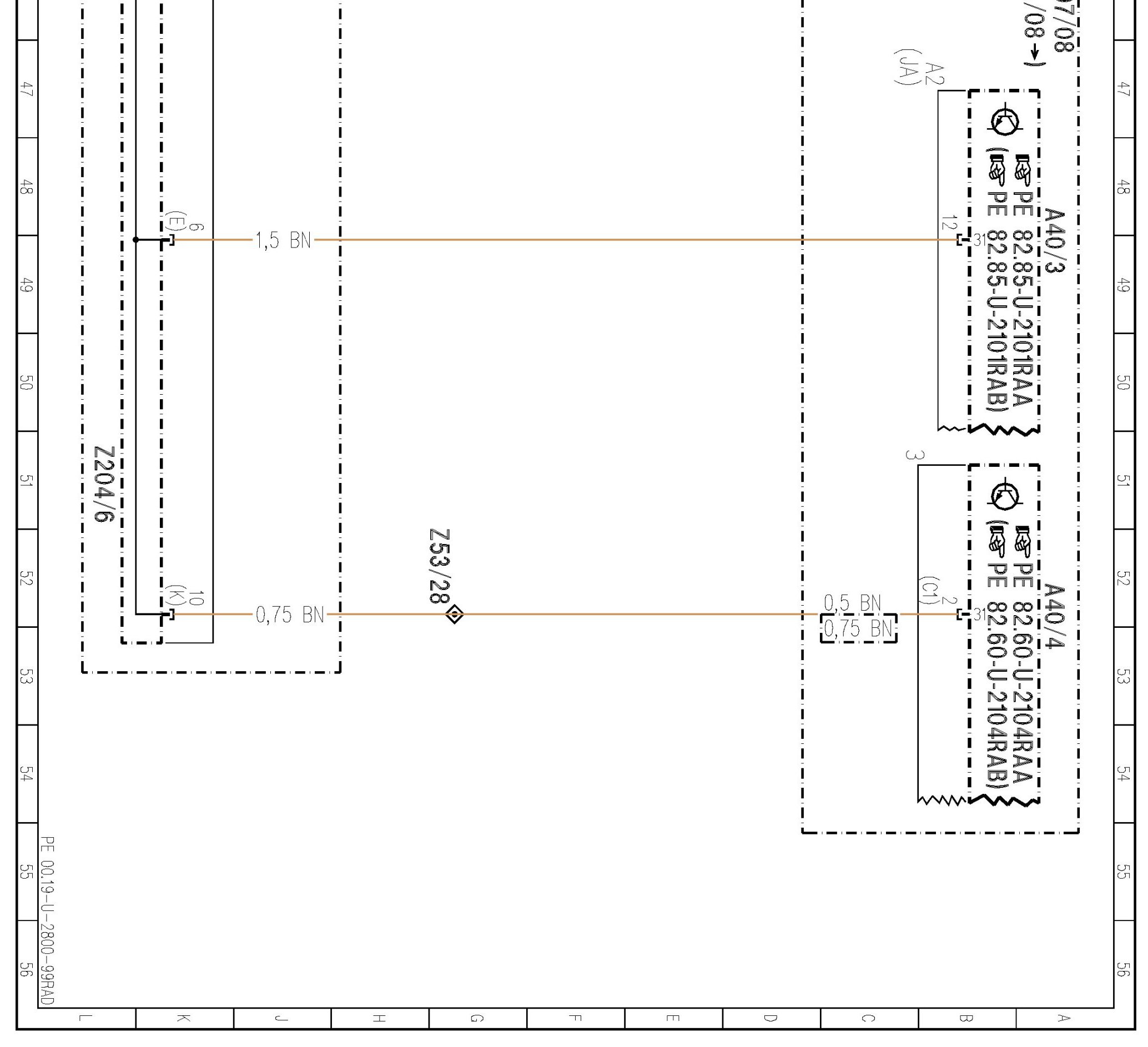

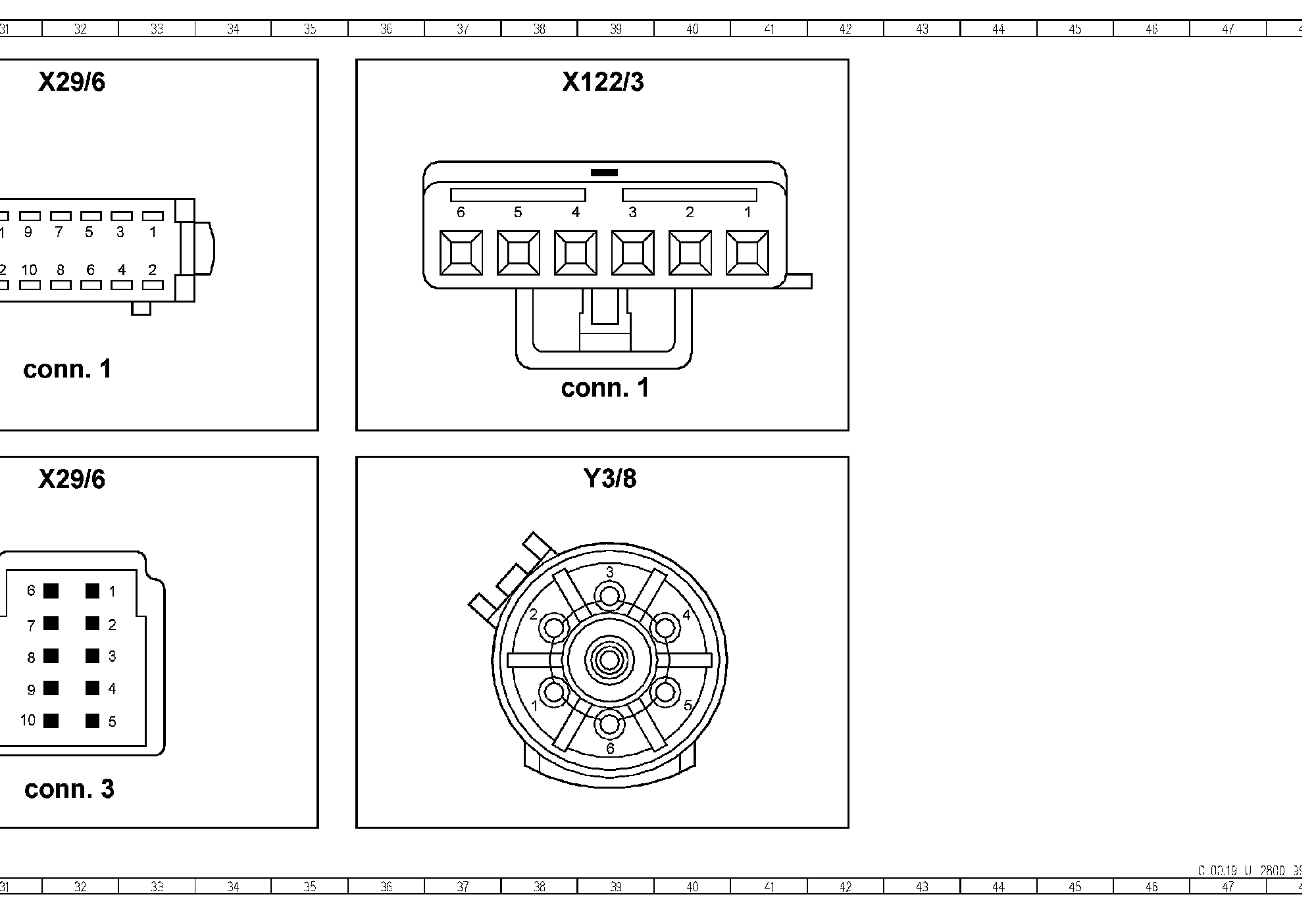

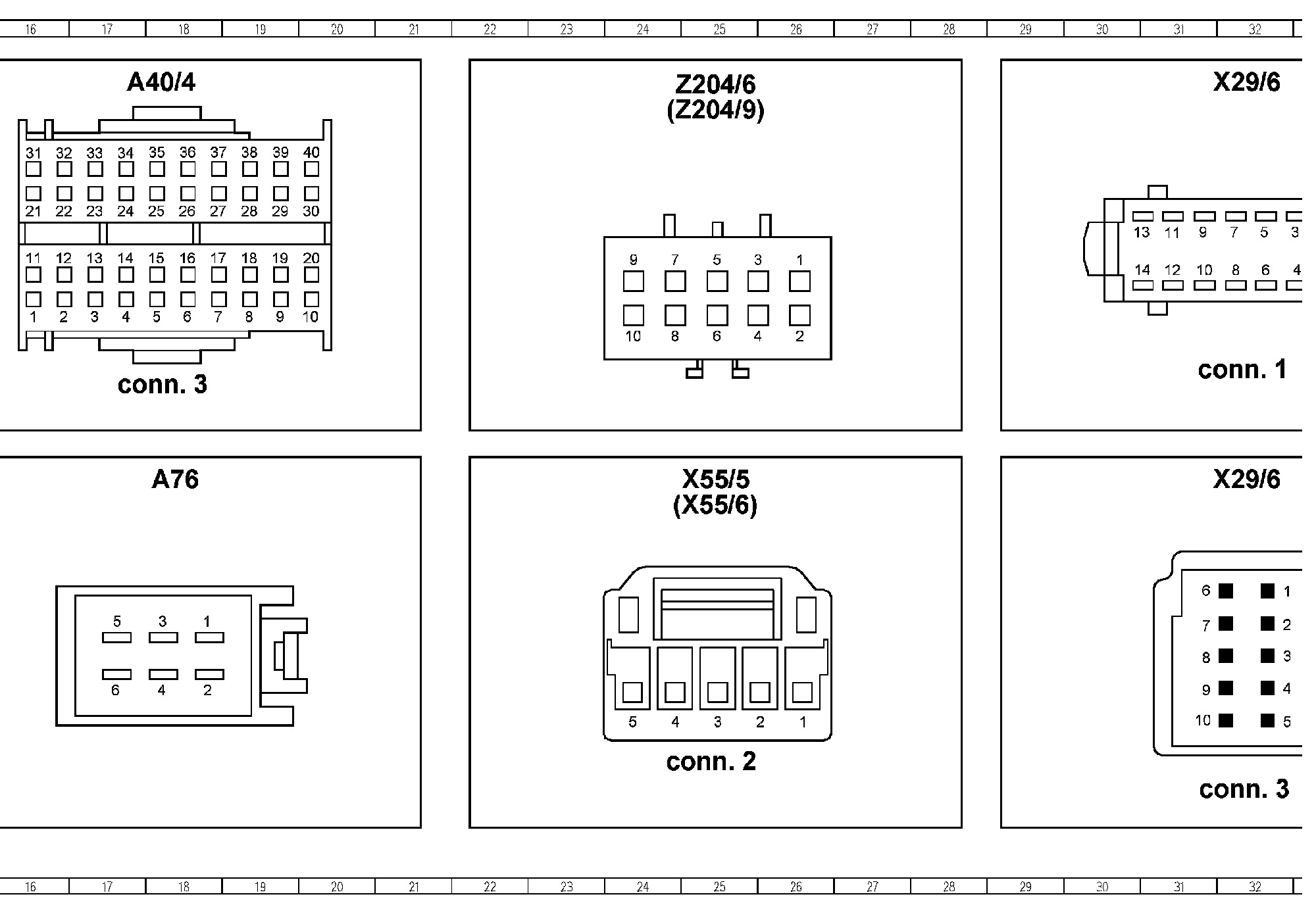

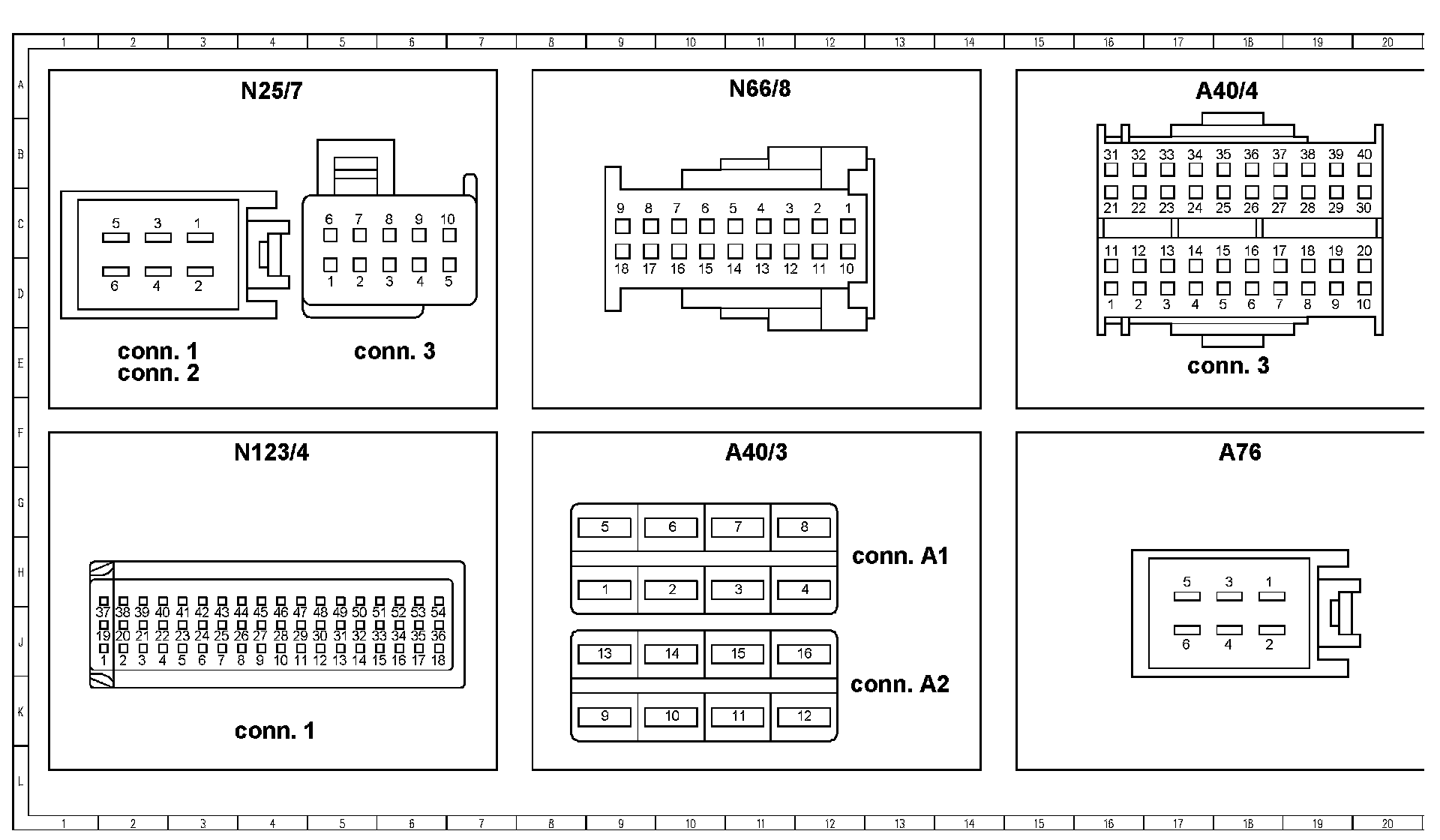

PE00.19-U-2800RAD Ground Wiring



PE00.19-U-2800RAD Ground Wiring

MODEL 251

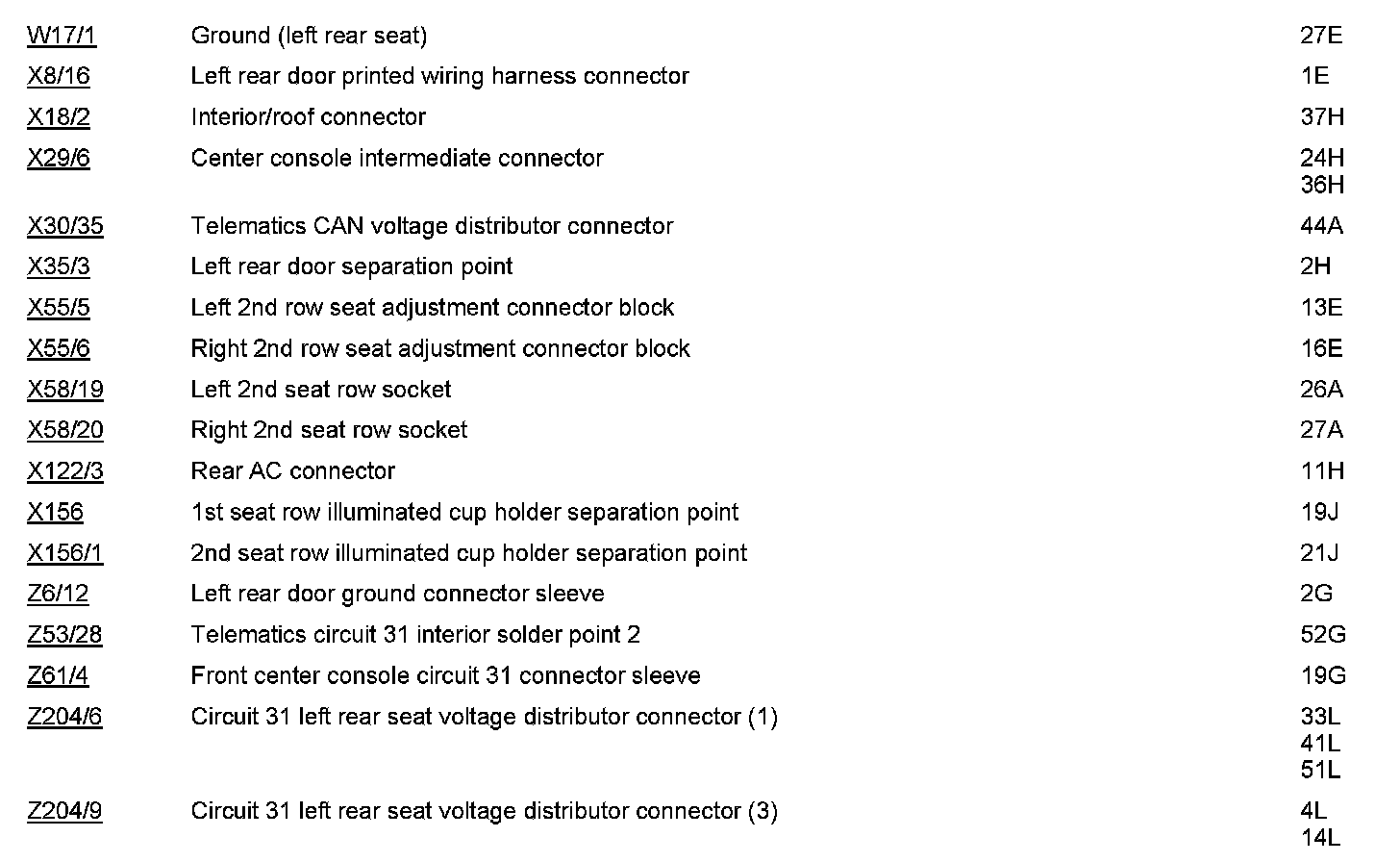

- W17/1 Z6/12, Z61/4 sheet 4










































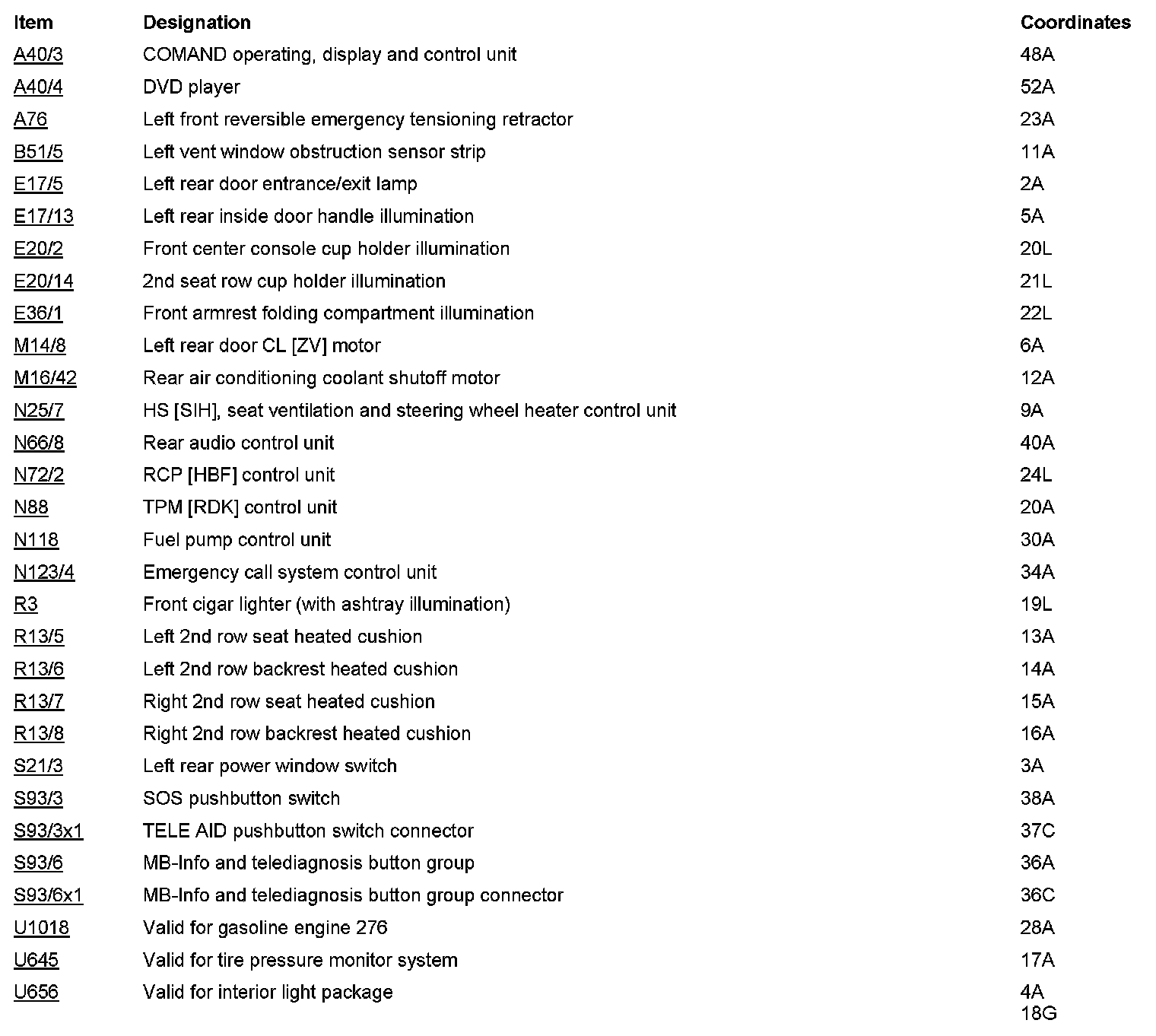

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
