Auxiliary Power Outlet: Service and Repair
AR54.10-P-1000RT Remove/Install 12 Volt Socket

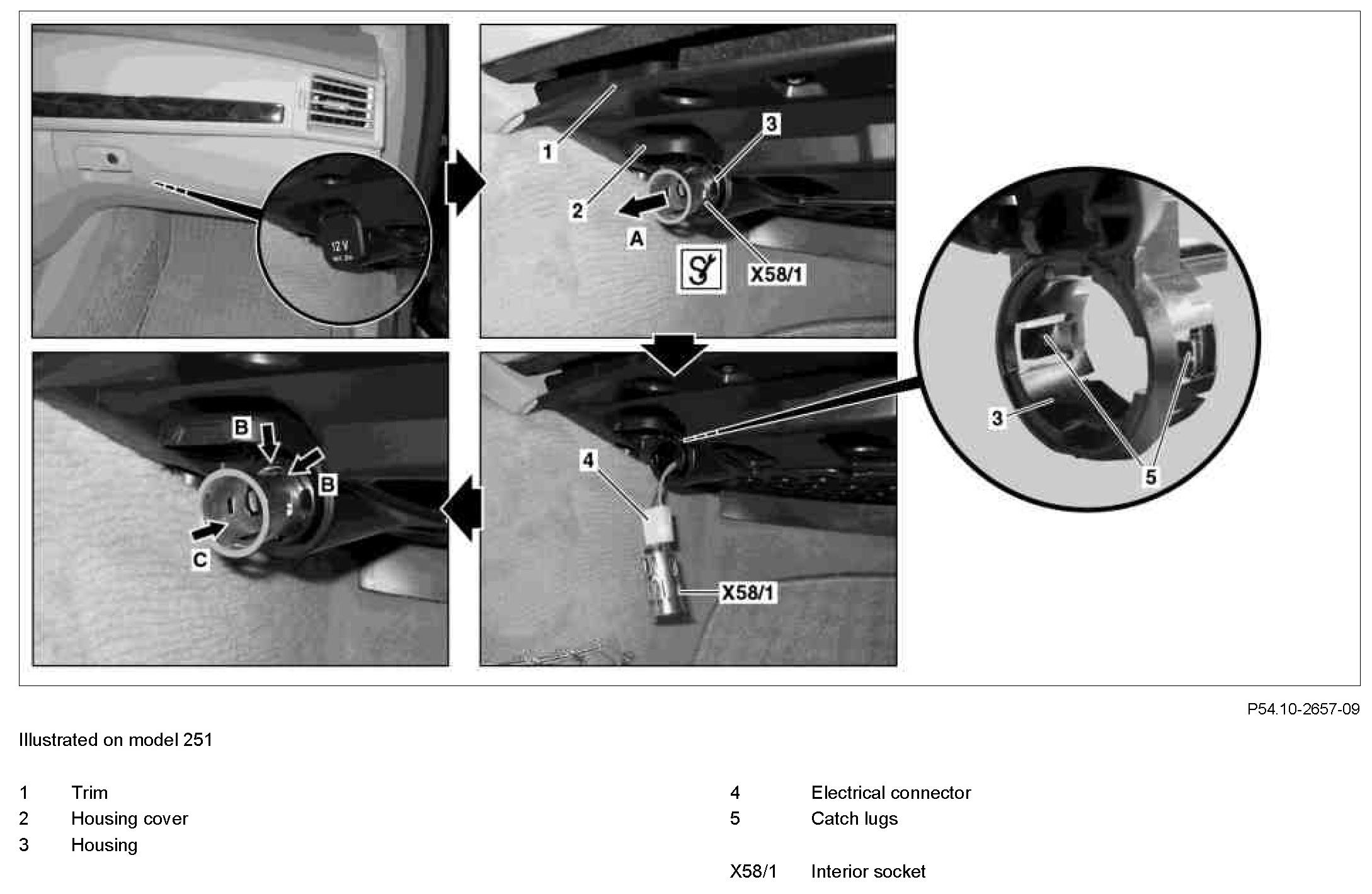

Component Identification:

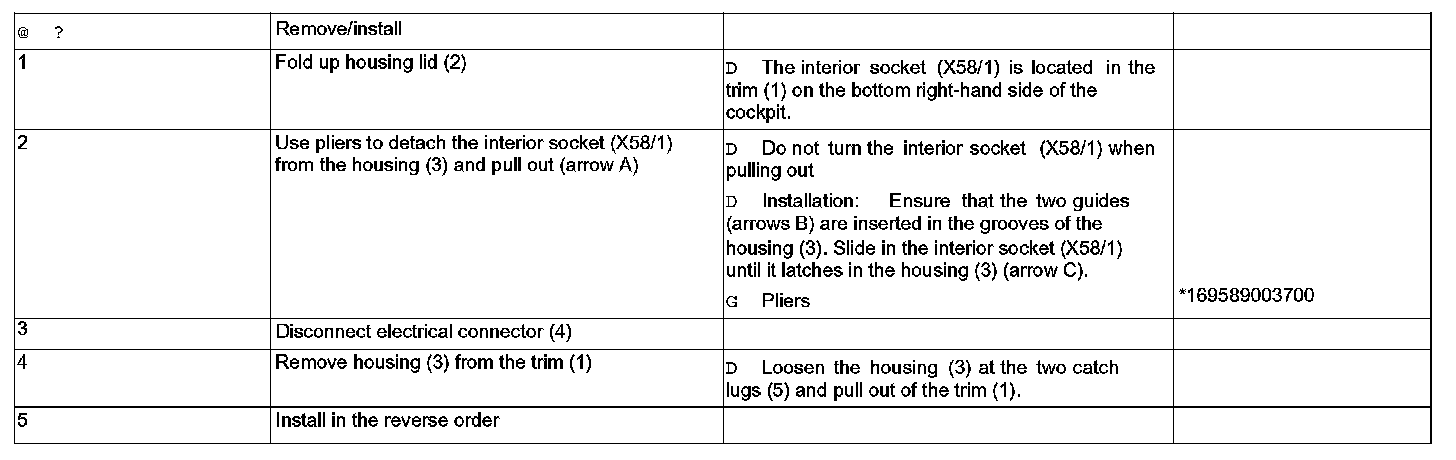

Steps 1 - 5:

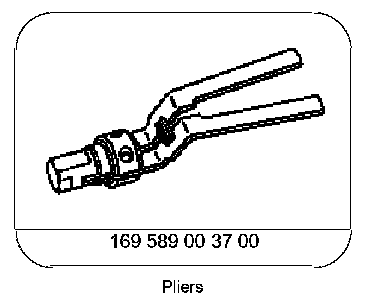

Special Tools:
