Alternator: Testing and Inspection

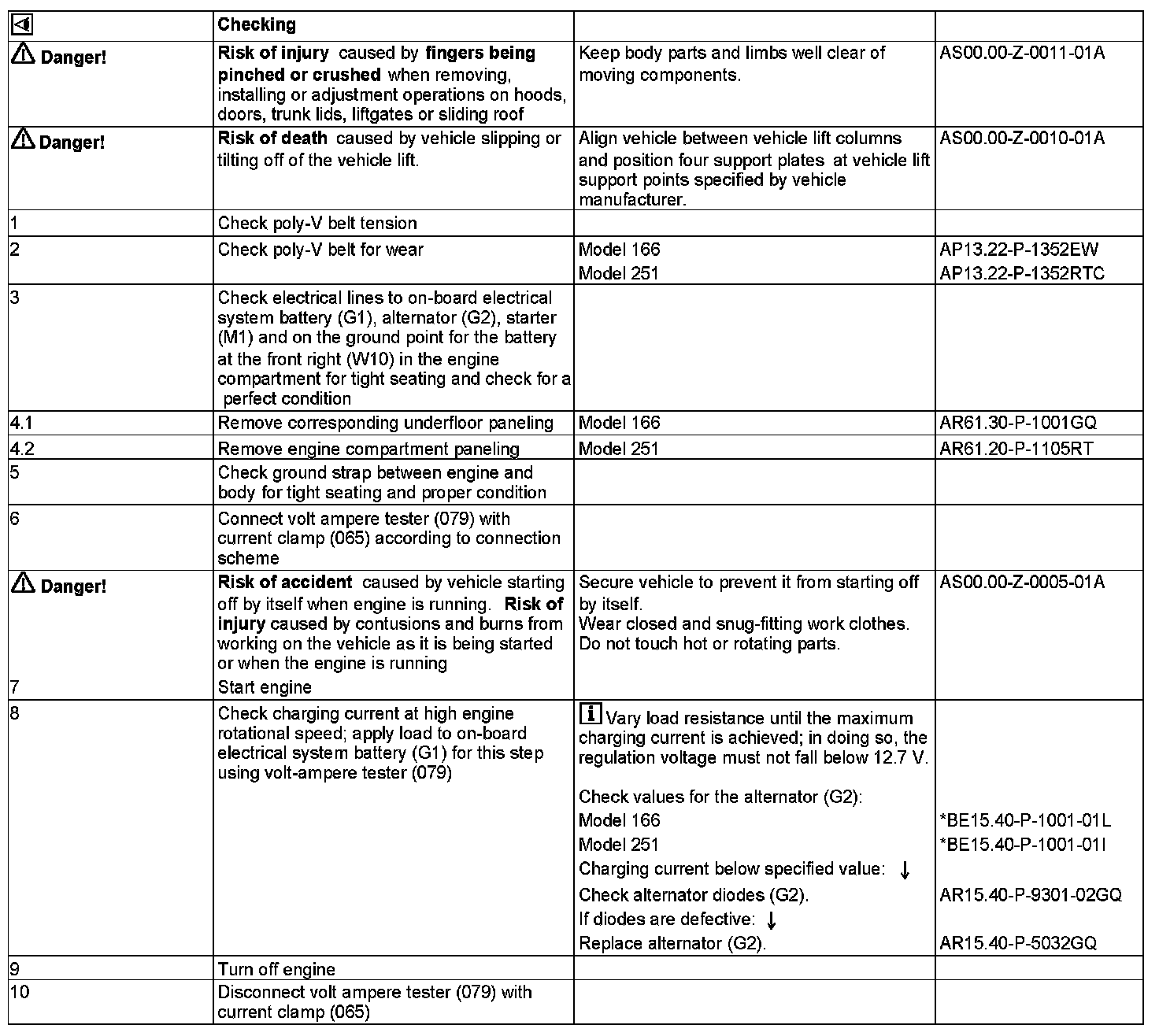

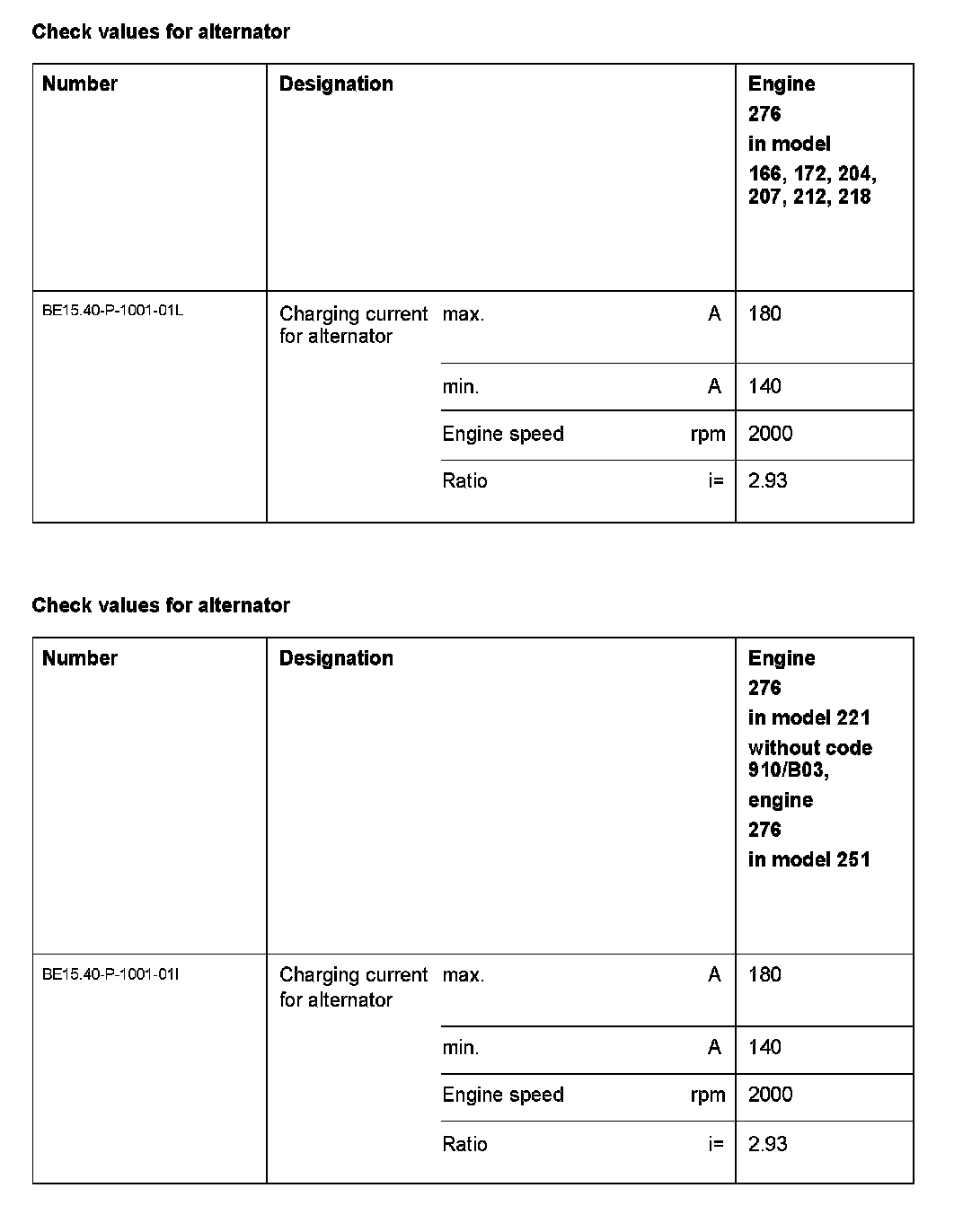

AR15.40-P-5011GQ Check Charging Current of Alternator
ENGINES 276 in MODEL 166.0, 251

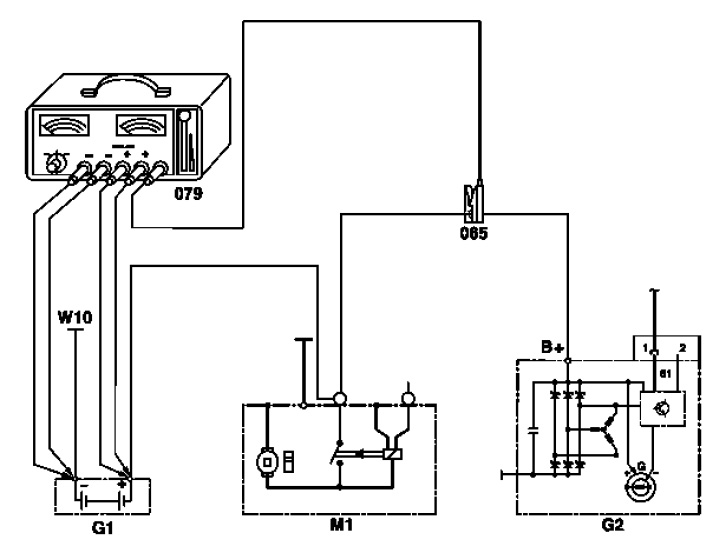

Connection scheme, shown on model 166.0

065 Current clamp
079 Volt/amp(s) tester
B+ Charging current connection

G1 On-board electrical system battery
G2 Alternator
M1 Starter
W10 Right front battery ground point
