Alternator: Service and Repair

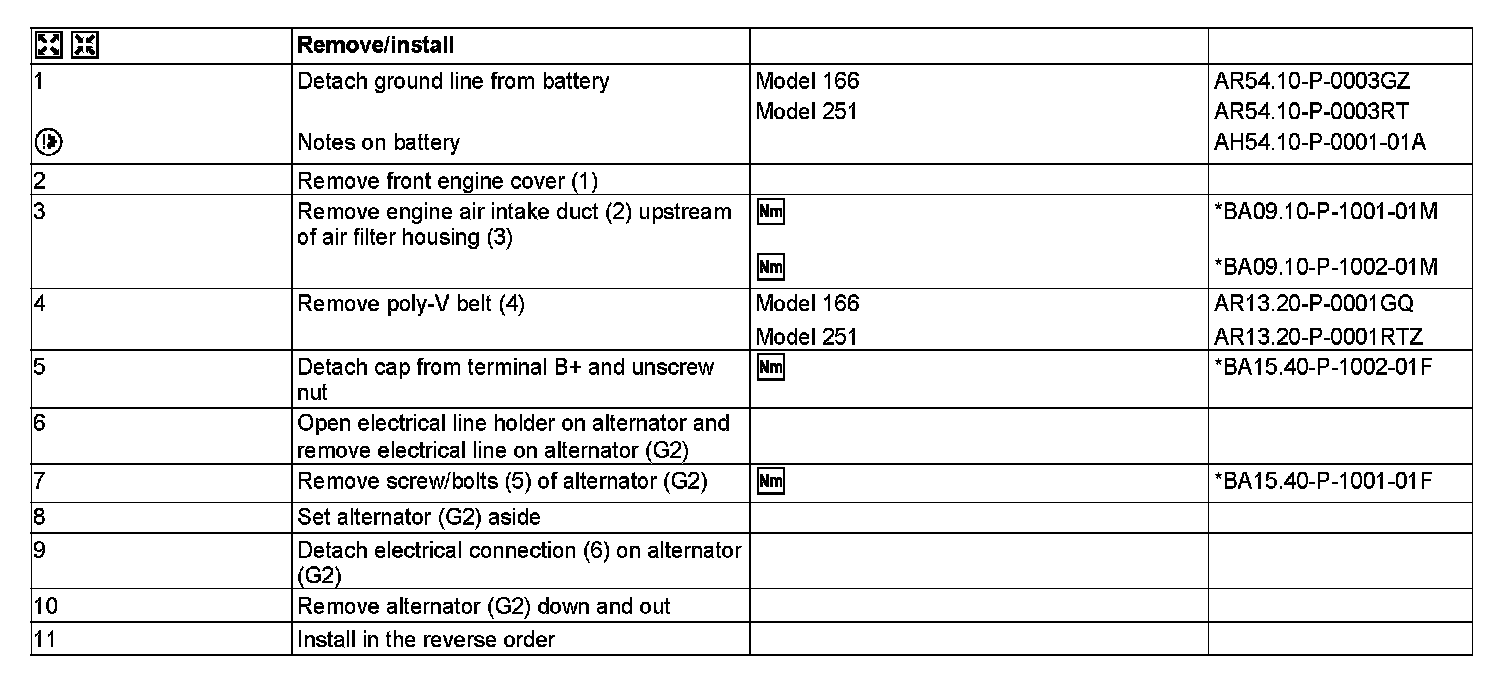

AR15.40-P-5032GQ Remove/Install Alternator
ENGINES 276 in MODEL 166.0, 251

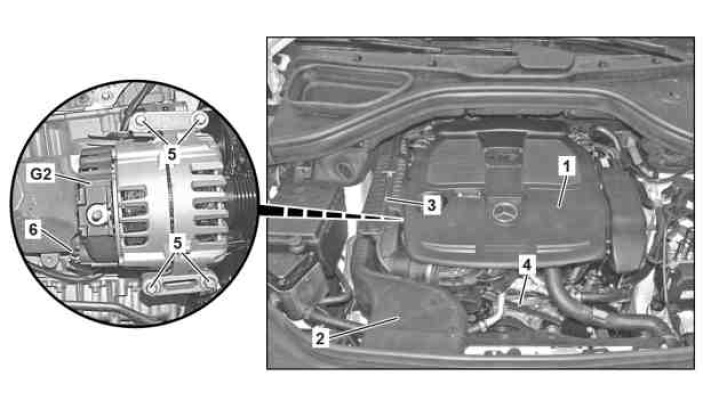

Shown on model 166.0

1 Front engine cover
2 Engine air intake duct
3 Air filter housing
4 Poly-V belt
5 Screw/bolt
6 Electrical connector

G2 Alternator
