Home
>>
Mercedes Benz Truck
>>
2012
>>
R 350 4MATIC (251.157) V6-3.5L (276.958)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
Rear Axle Toe-In
Rear Axle Toe-In
BE40.20-P-1000-10J Rear axle toe-in

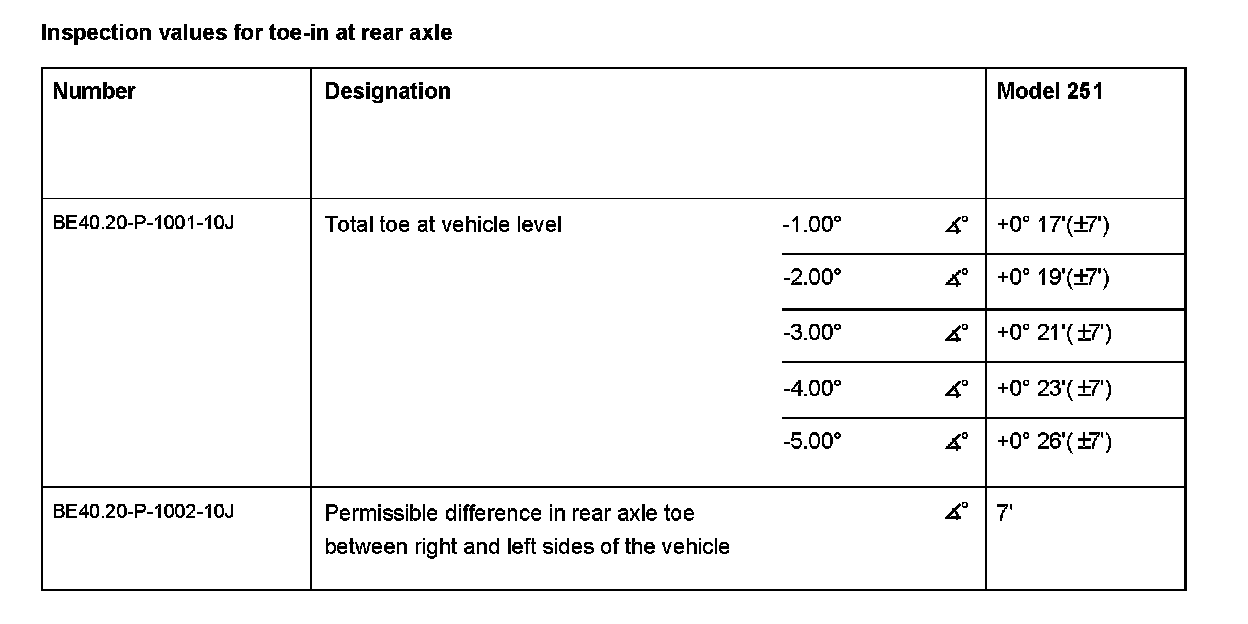

Inspection Values For Toe-in At Rear Axle:
