Tire Pressure Sensor: Service and Repair
AR40.15-P-0080RT Remove/install wheel sensor
- with CODE (475) Tire pressure monitor (Siemens)

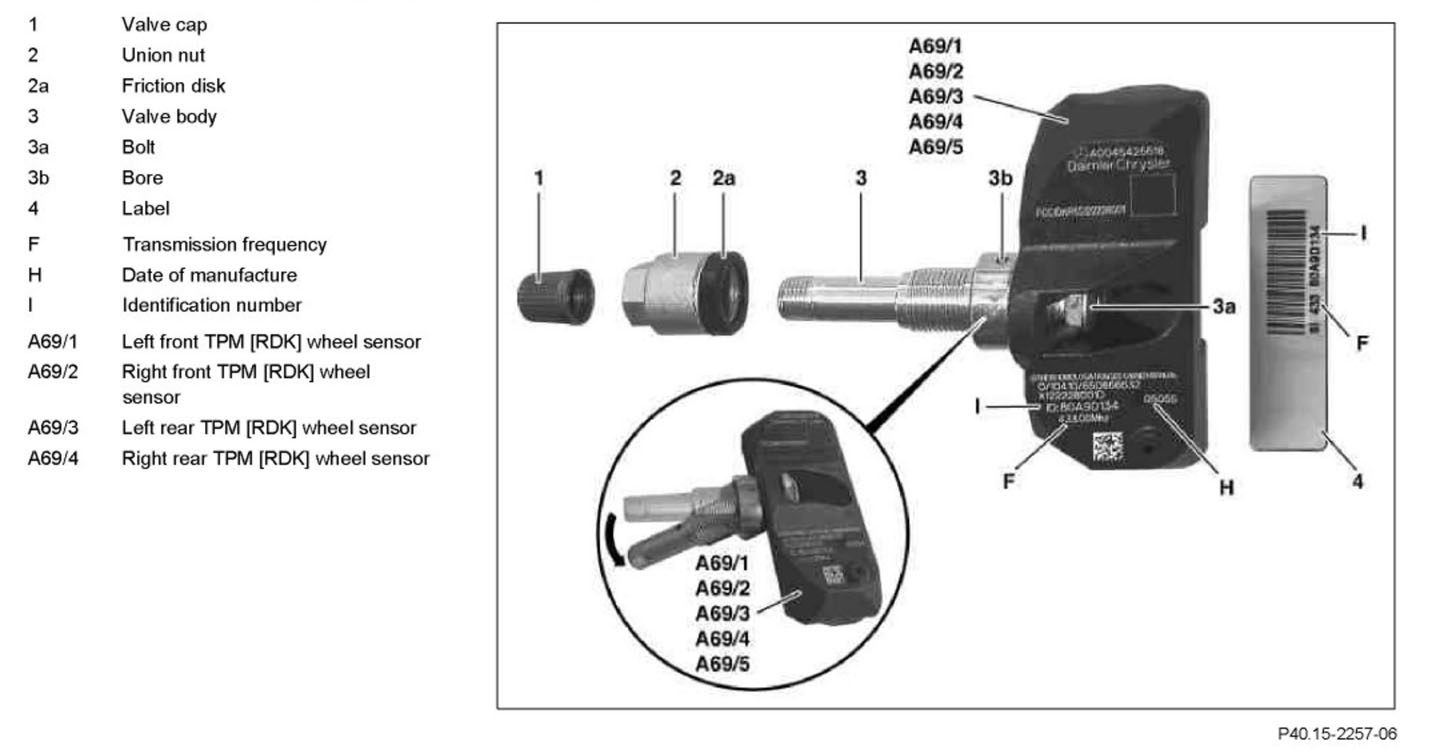

Component Identification:

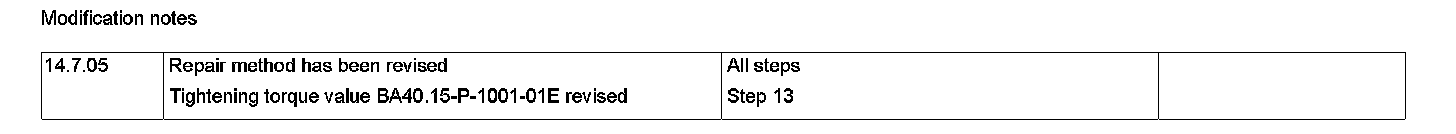

Modification notes:

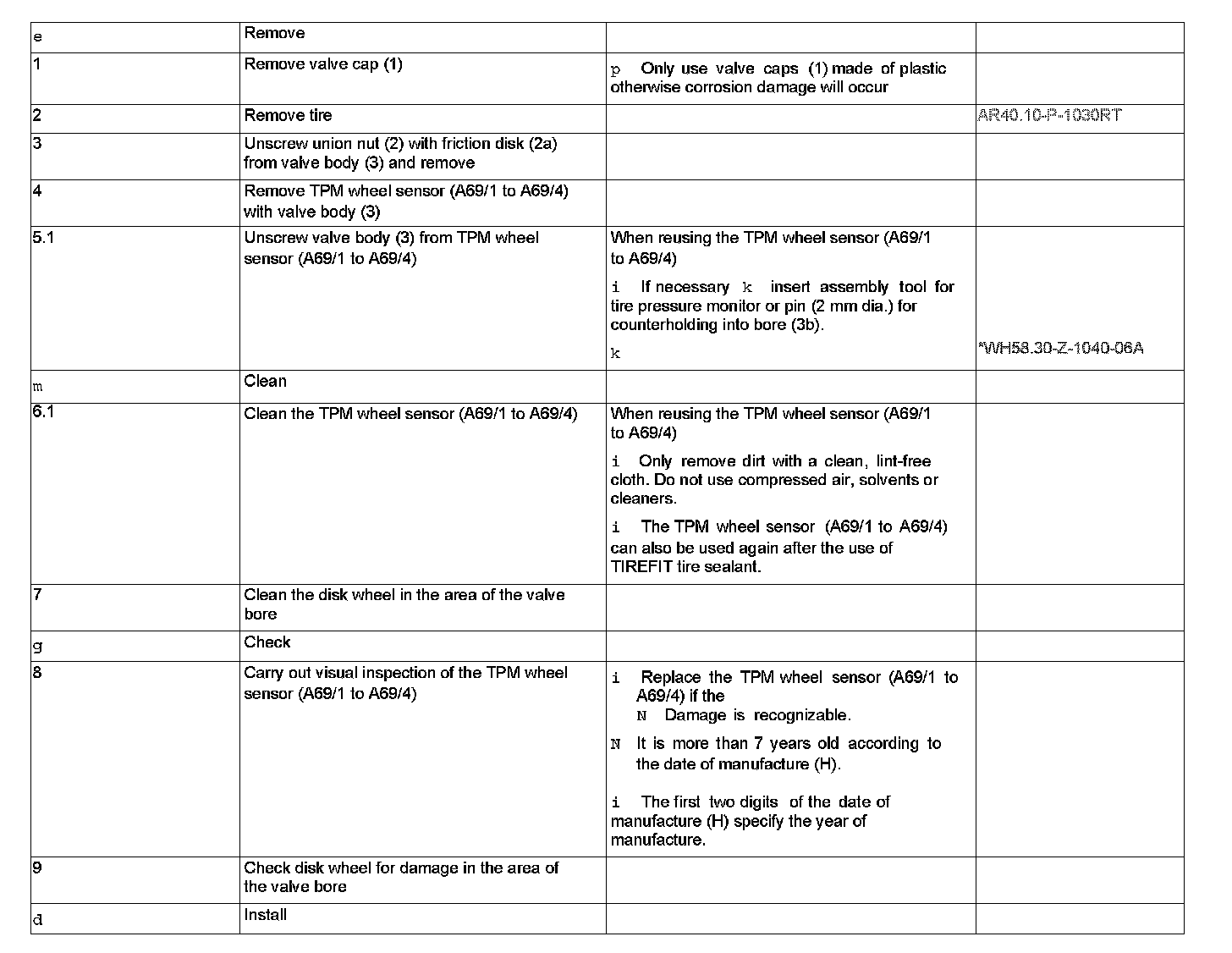

Steps 1-9:

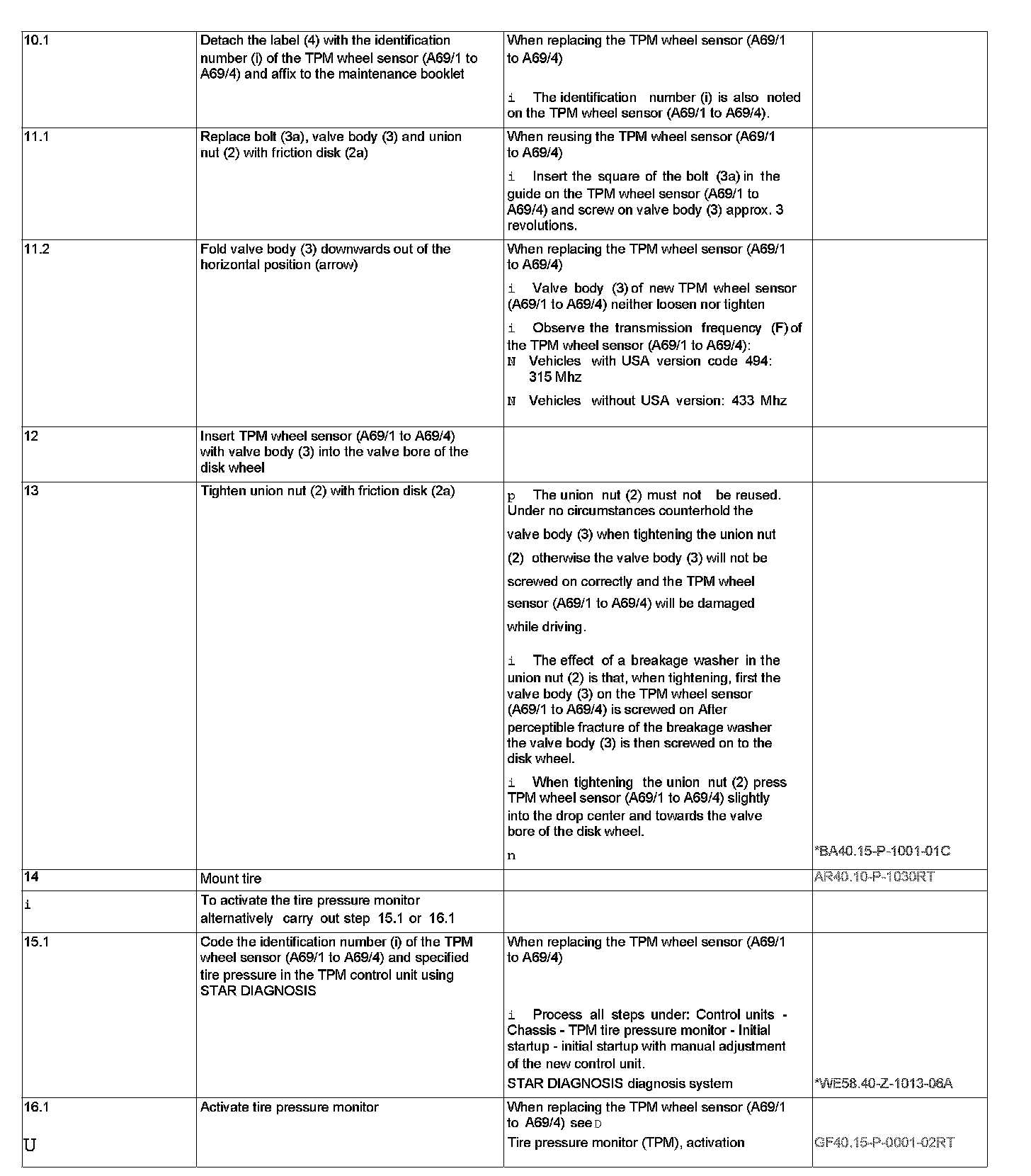

Remove/install Steps 10.1-16.1:

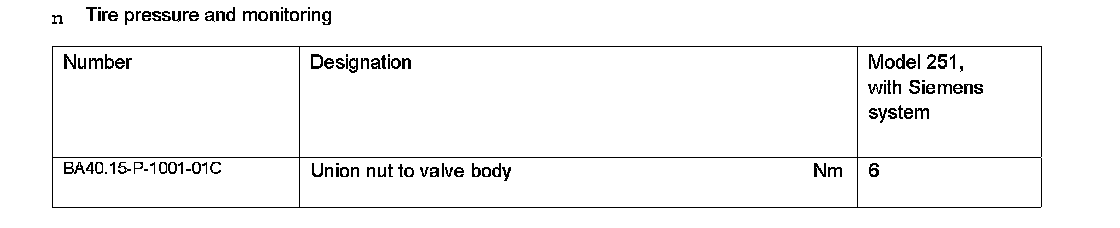

Tire pressure and monitoring:
Special Tools:

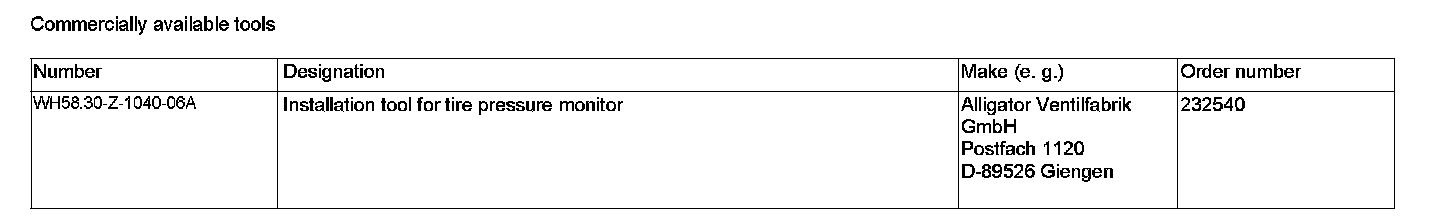

Commercially available tools:

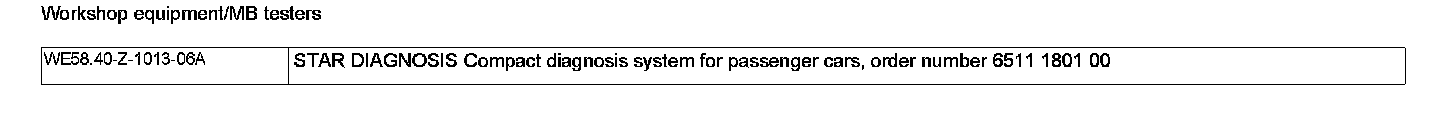

Workshop equipment/MB testers:
