Steering Angle Sensor: Service and Repair

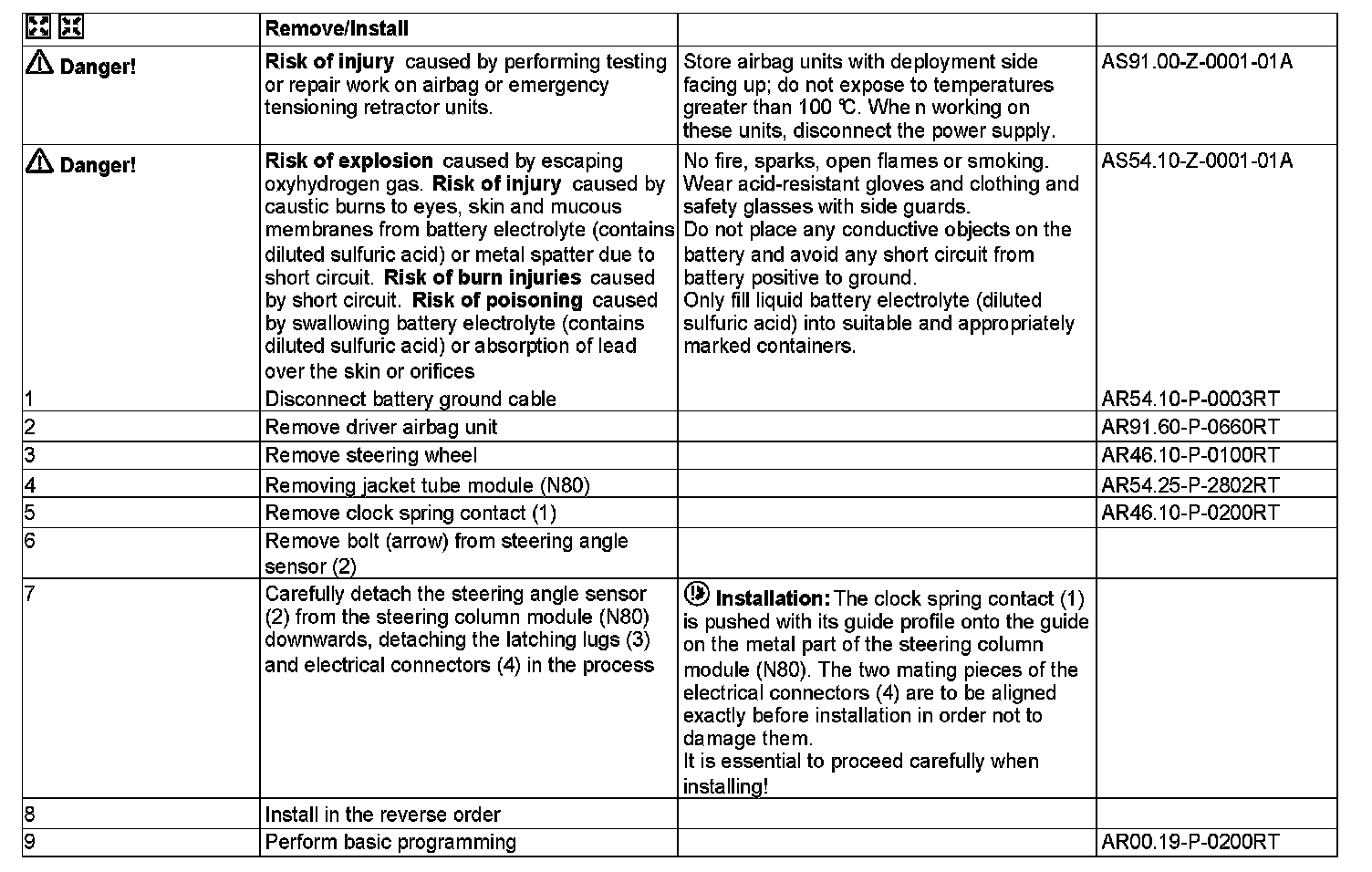

AR46.10-P-0300RT Remove/Install Steering Angle Sensor
MODEL 251

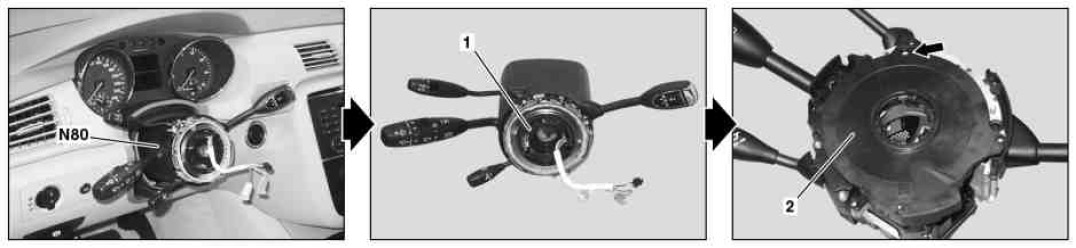

Shown on vehicle with electrically adjustable steering column, code 441

1 Clock spring contact
2 Steering angle sensor

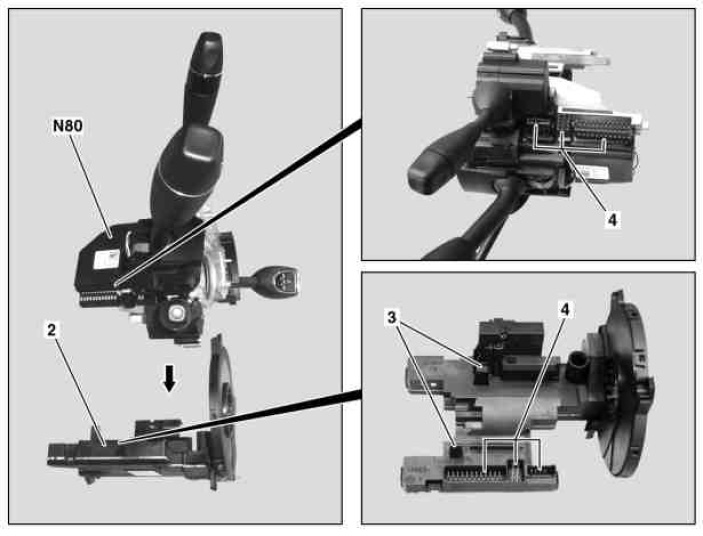

N80 Steering column module





2 Steering angle sensor
3 Catch lugs
4 Electrical connectors

N80 Steering column module
