Parking Brake Warning Switch: Service and Repair
AR42.20-P-0501RT Removing and Installing Park Brake Indicator Switch

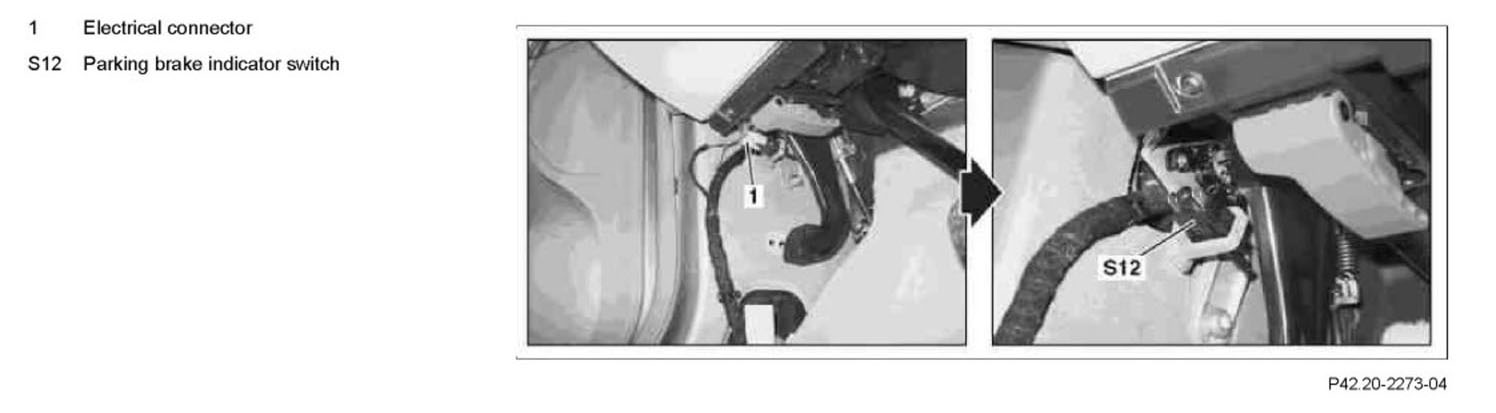

Component Identification:

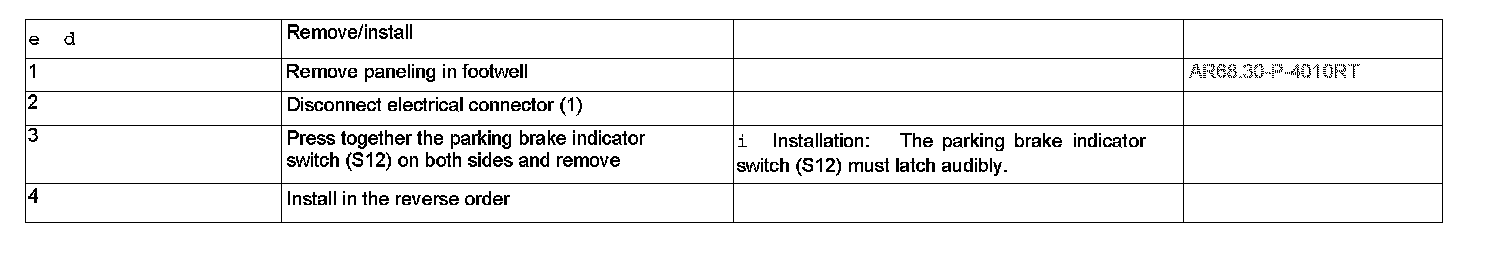

Steps 1 - 4:
