Steering/Electrical - Steering Wheel Buttons Inoperative

Steering wheel multifunction buttons nonfunctional

Topic number LI46.10-P-054715

Version 1

Design group 46.10 Steering wheel, casing tube, steering shaft, steering lock

Date 10-14-2012

Validity 164 up to 063689
251 up to 008834

Reason for change Content and part numbers - replaces T-B-46.10/48a from date 10-SEP-07

Complaint:
Multifunction buttons on steering wheel nonfunctional due to a short circuit on the horn plate.

Cause:
Short circuit on the horn plate of the steering wheel due to amine deposits from the steering wheel foam.

Remedy:
Replacement of the steering wheel.

Note:
Some parts may be non-stocking parts for MBUSA and possibly C66 and not immediately available from DAG. Please be aware and check availability prior to scheduling customer repairs.

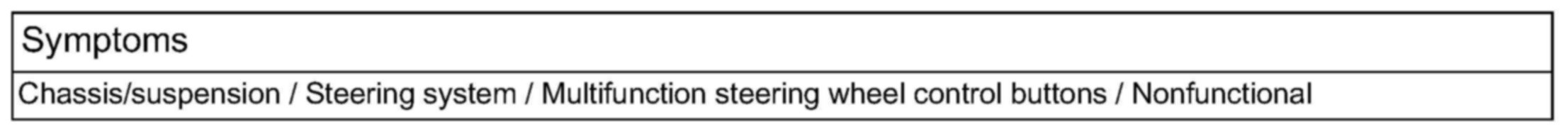

Symptoms

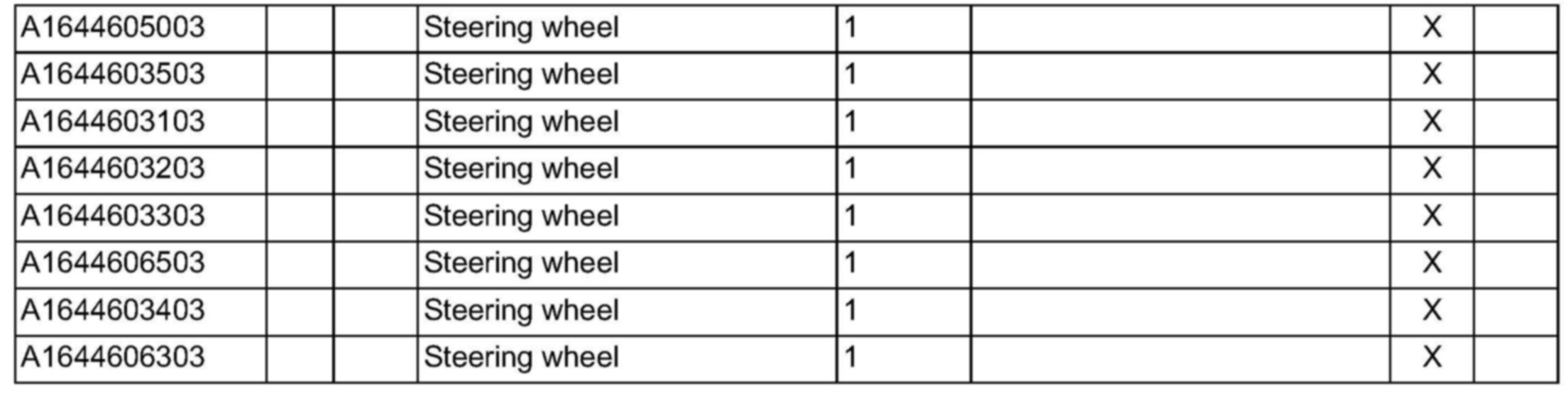

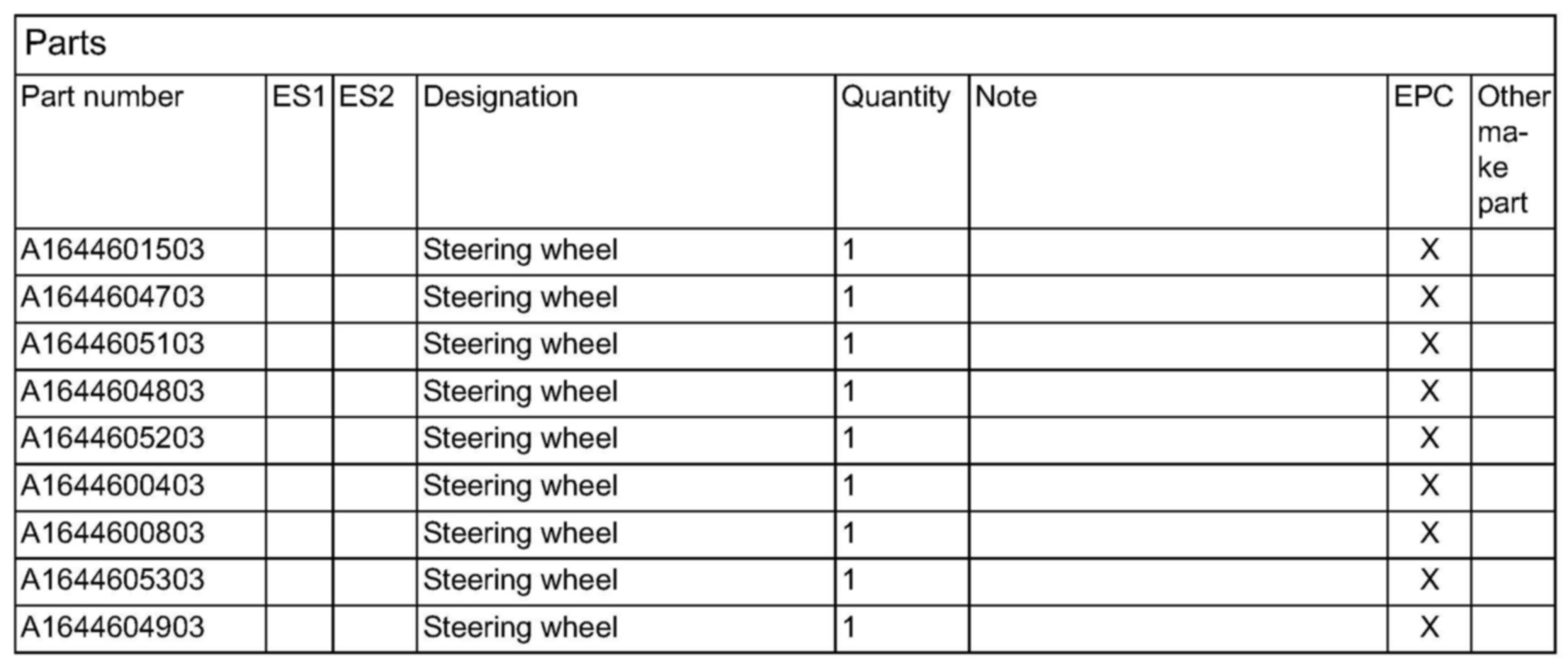

Parts





Work units
