AR32.32-P-0500RT Remove/Install Suspension (ADS) Control Unit



AR32.32-P-0500RT Remove/install suspension (ADS) control unit

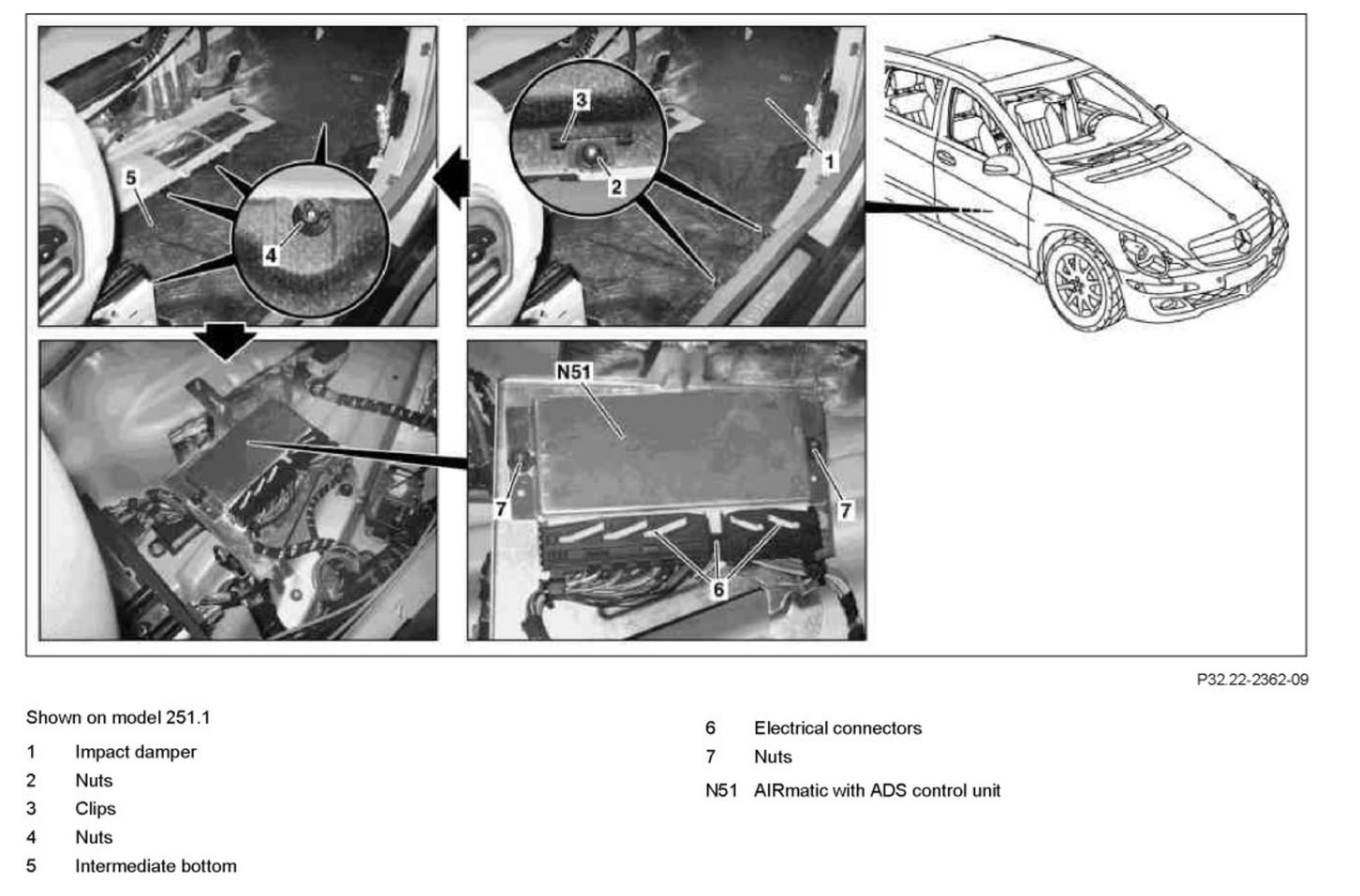

Component Identification:

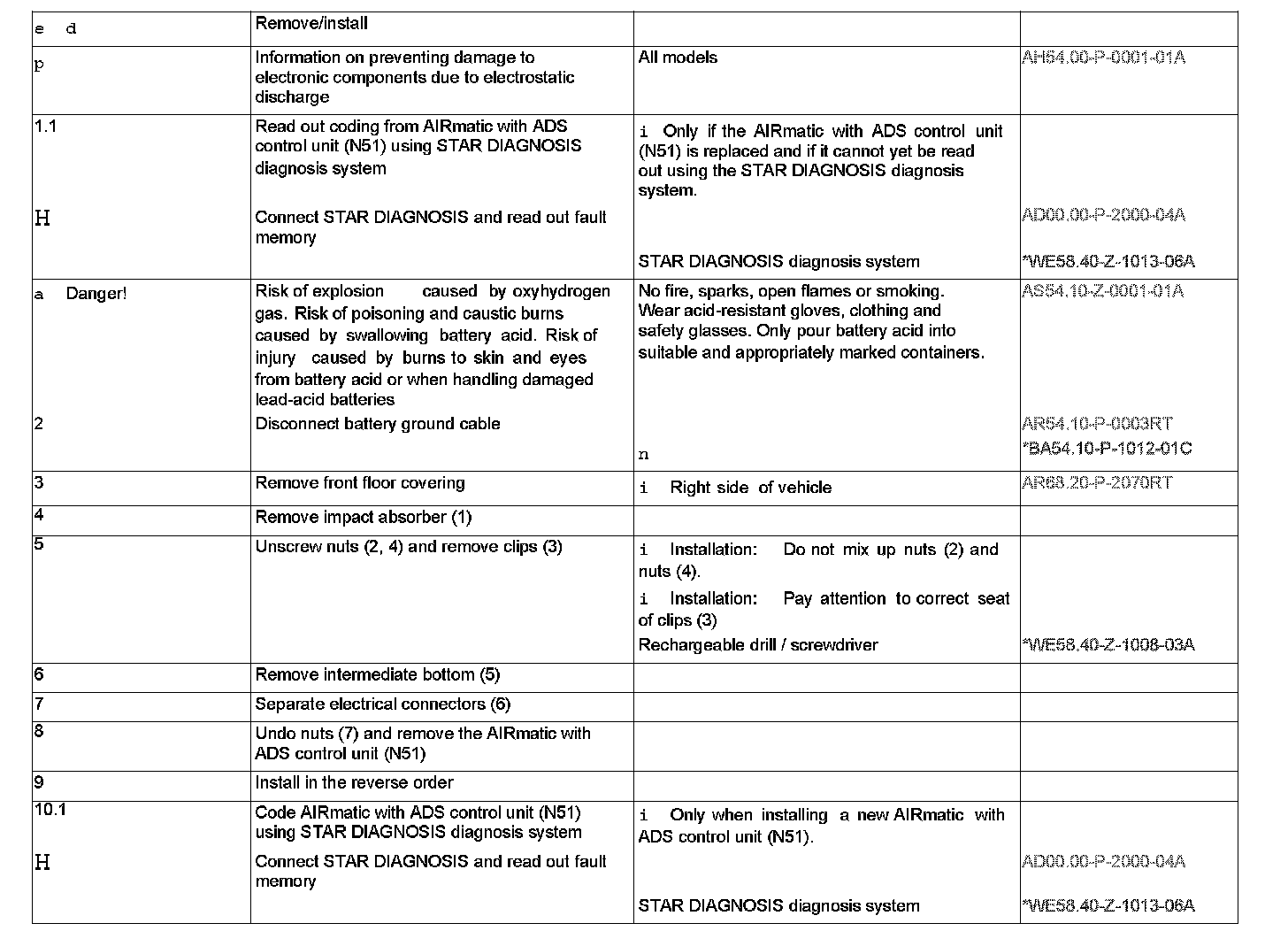

Steps 1.1-10.1:

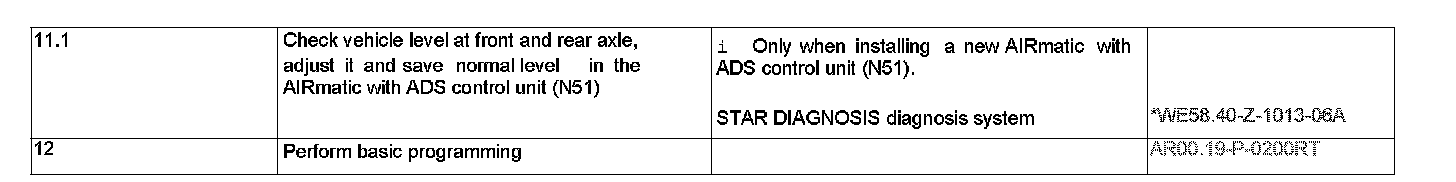

Remove/install Steps 11.1-12:

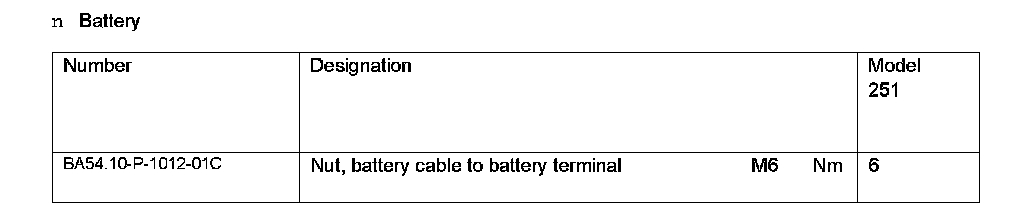

Battery:

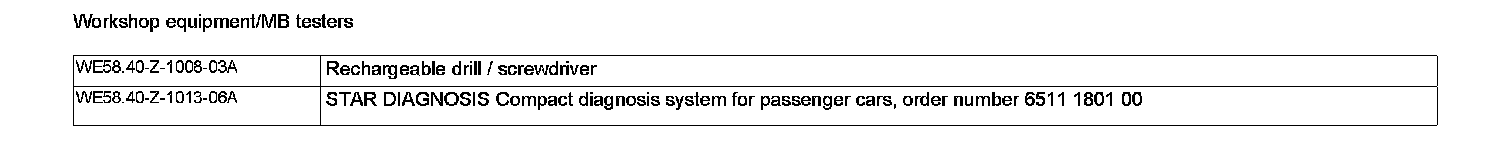

Workshop equipment/MB testers:
