AR32.22-P-6000RT Removing and Installing Air Suspension Control Unit

AR32.22-P-6000RT Removing and installing air suspension control unit
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)

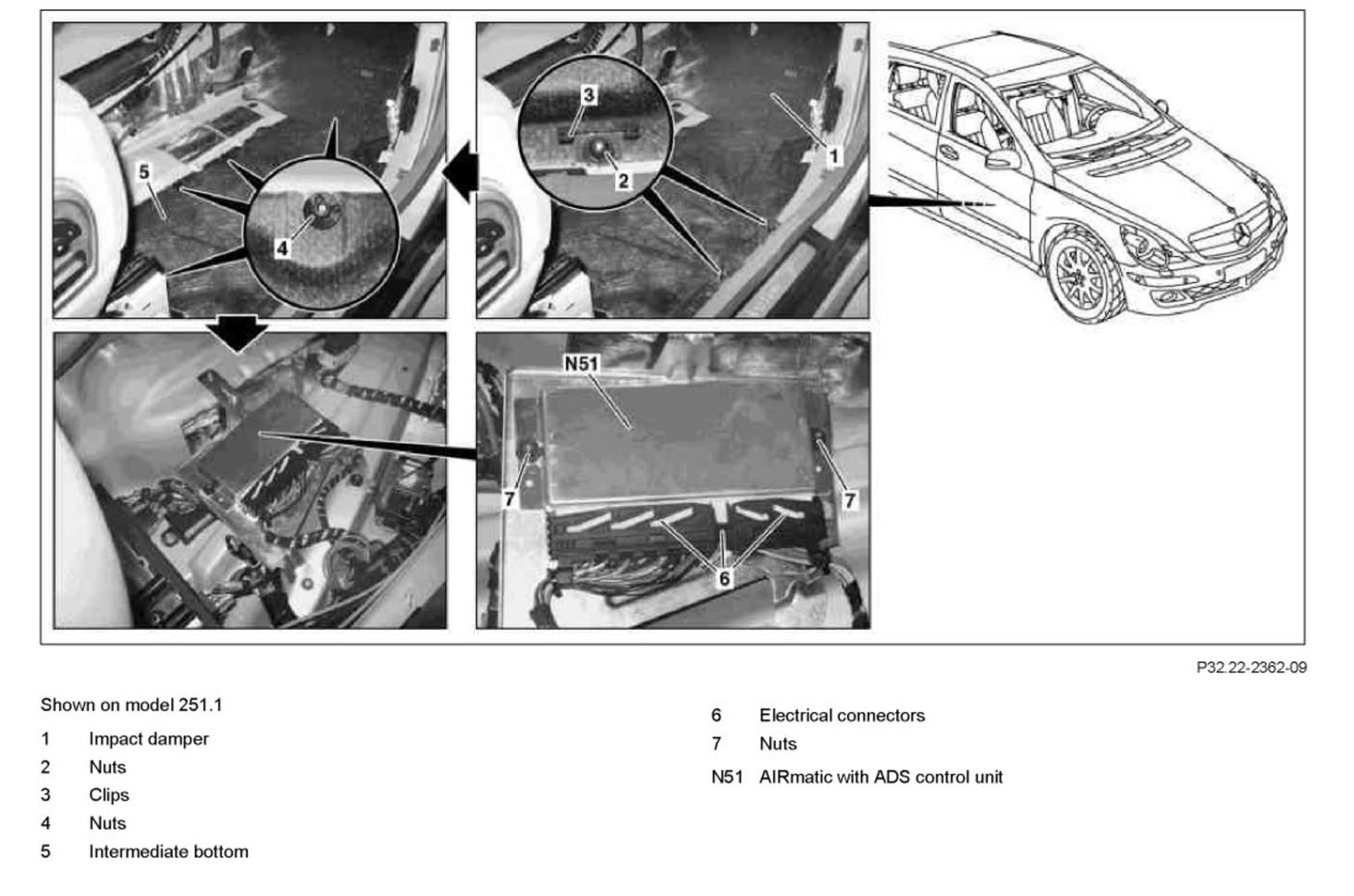

Component Identification:

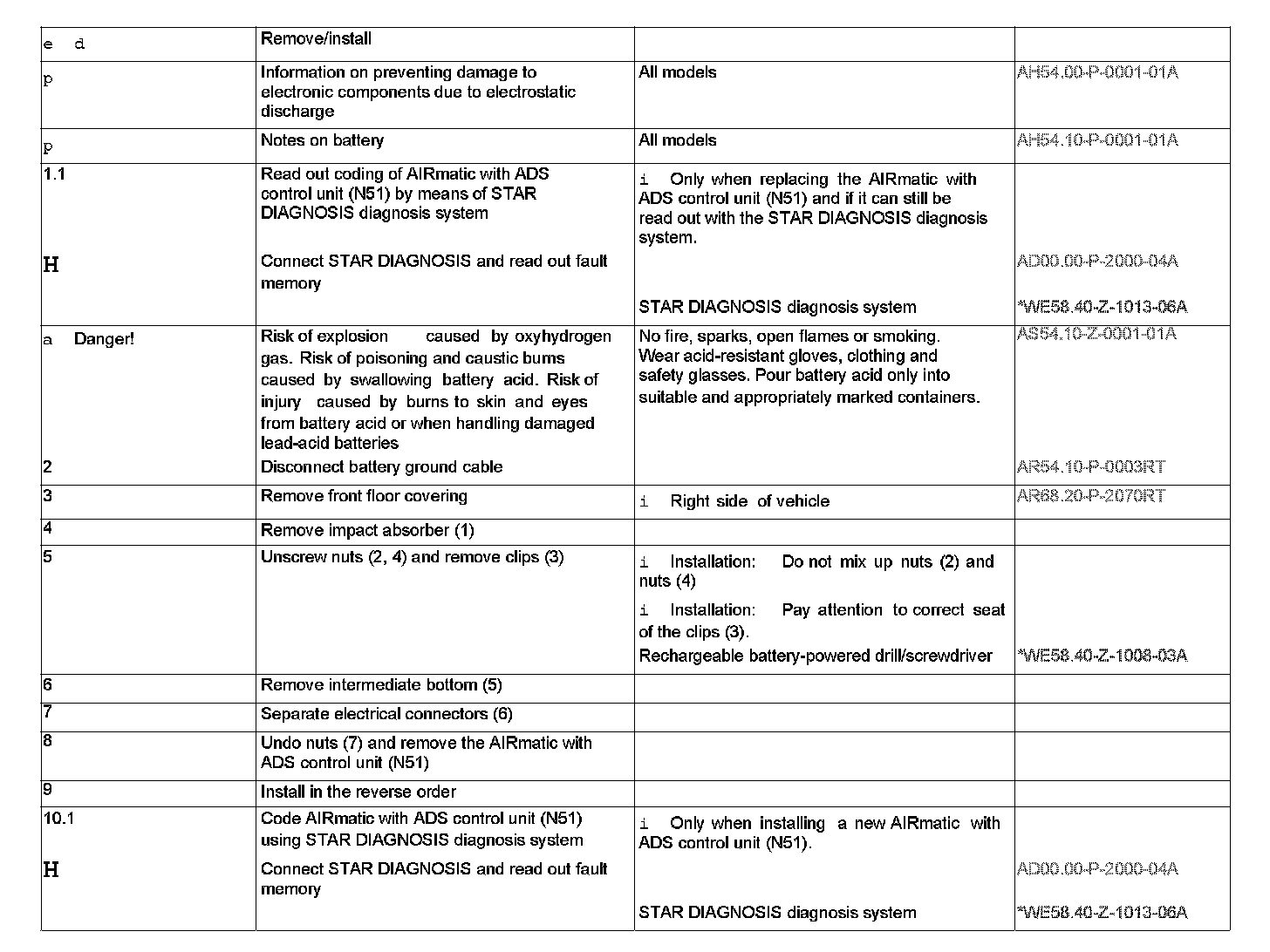

Steps 1.1-10.1:

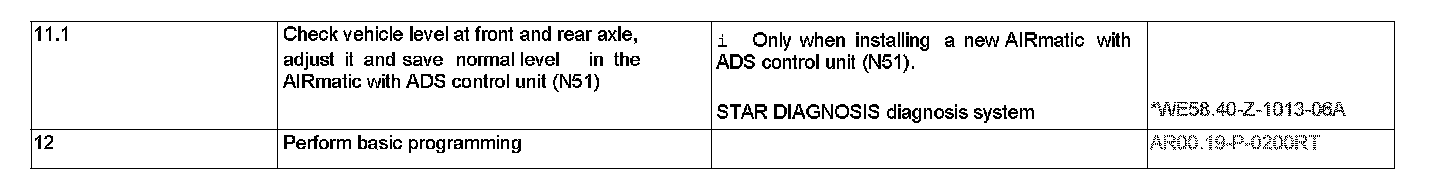

Remove/install Steps 11.1-12:

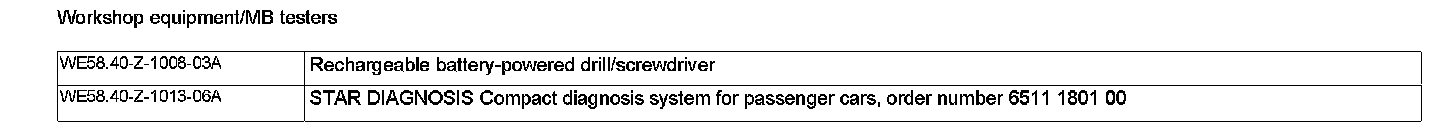

Workshop equipment/MB testers:
