Fuel Filter: Service and Repair
Replace
Fuel Filter
Component Identification:

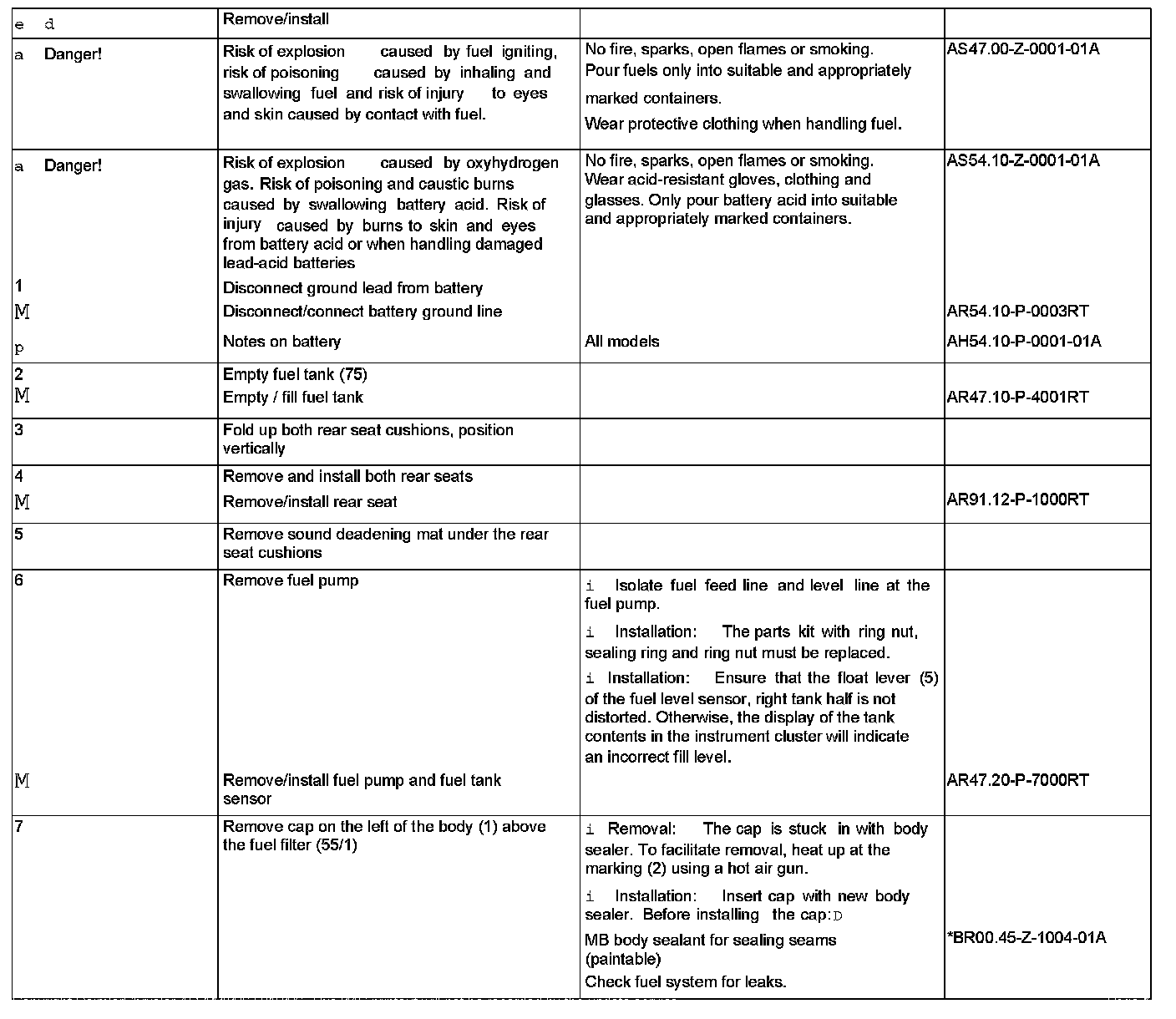

Steps 1 - 7:

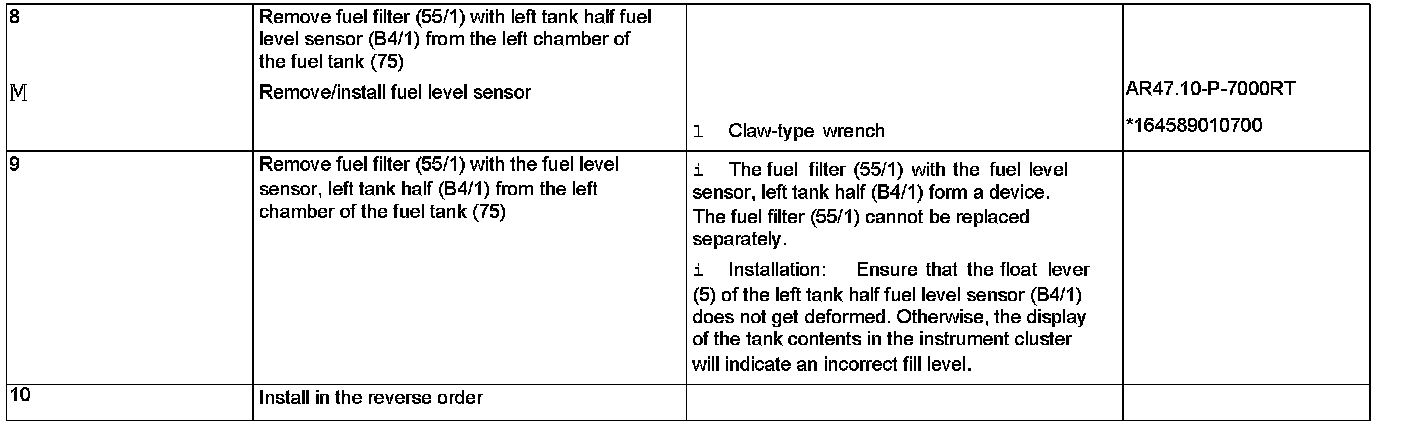

Steps 8 - 10:
Special Tools:

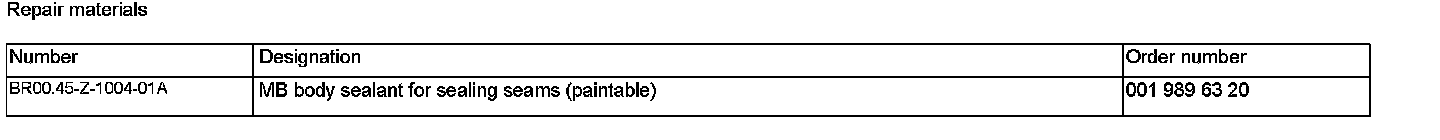

Repair Materials:
