Catalytic Converter: Service and Repair

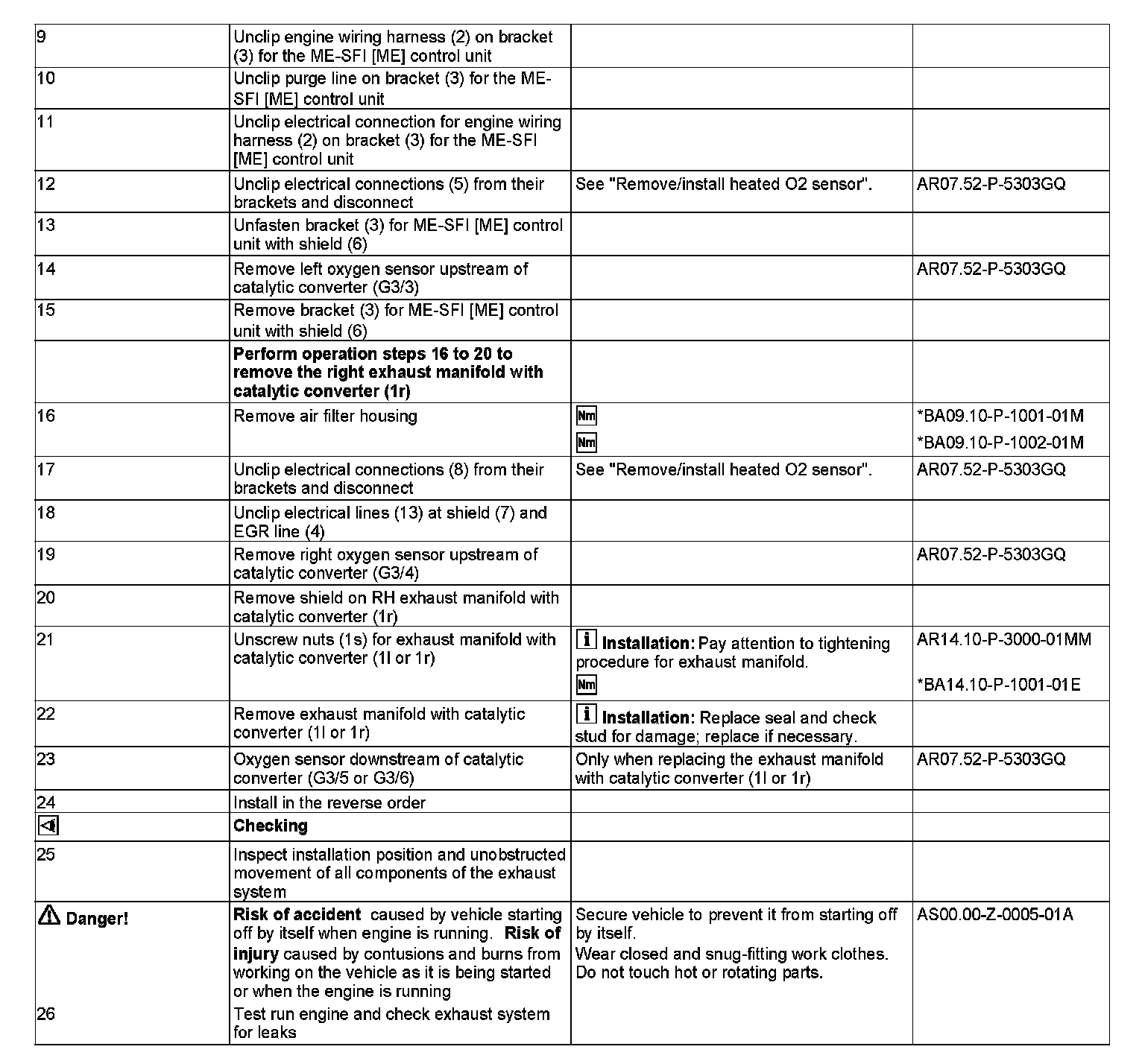

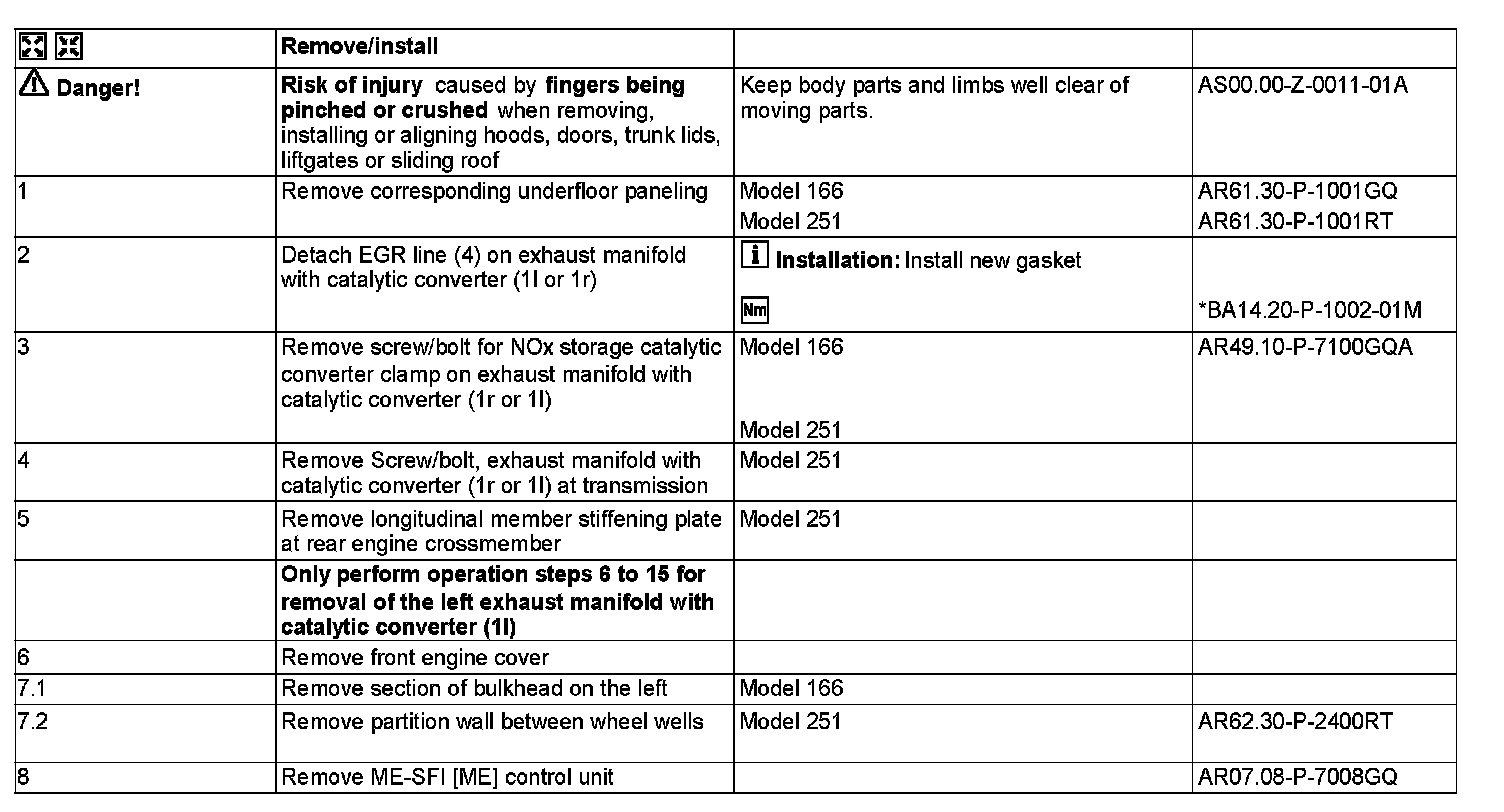

AR14.10-P-4095GQ Remove/Install Exhaust Manifold With Catalytic Converter
ENGINES 276 in MODEL 166.0, 251

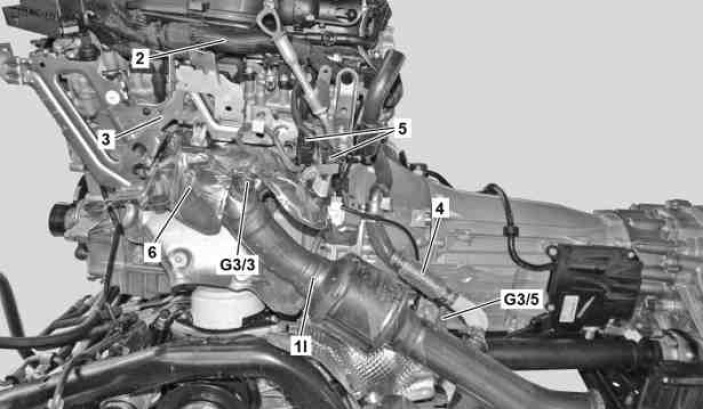

LH exhaust manifold with catalytic converter, shown on model 166

1l Left exhaust manifold with catalytic converter
2 Engine wiring harness
3 Bracket
4 Exhaust gas recirculation line
5 Electrical connector
6 Shield

G3/3 Left oxygen sensor upstream of catalytic converter
G3/5 Left oxygen sensor downstream of catalytic converter

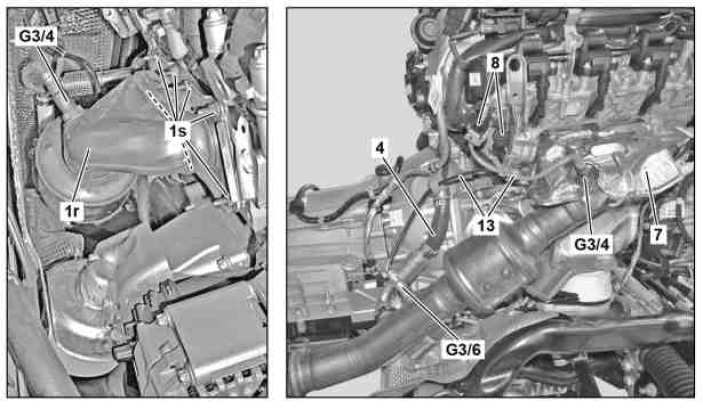

RH exhaust manifold with catalytic converter, shown on model 166

1r Right exhaust manifold with catalytic converter
1s Nuts
4 Exhaust gas recirculation line
7 Shield
8 Electrical connector
13 Electrical line

G3/4 Right oxygen sensor upstream of catalytic converter
G3/6 Right oxygen sensor downstream of catalytic converter
