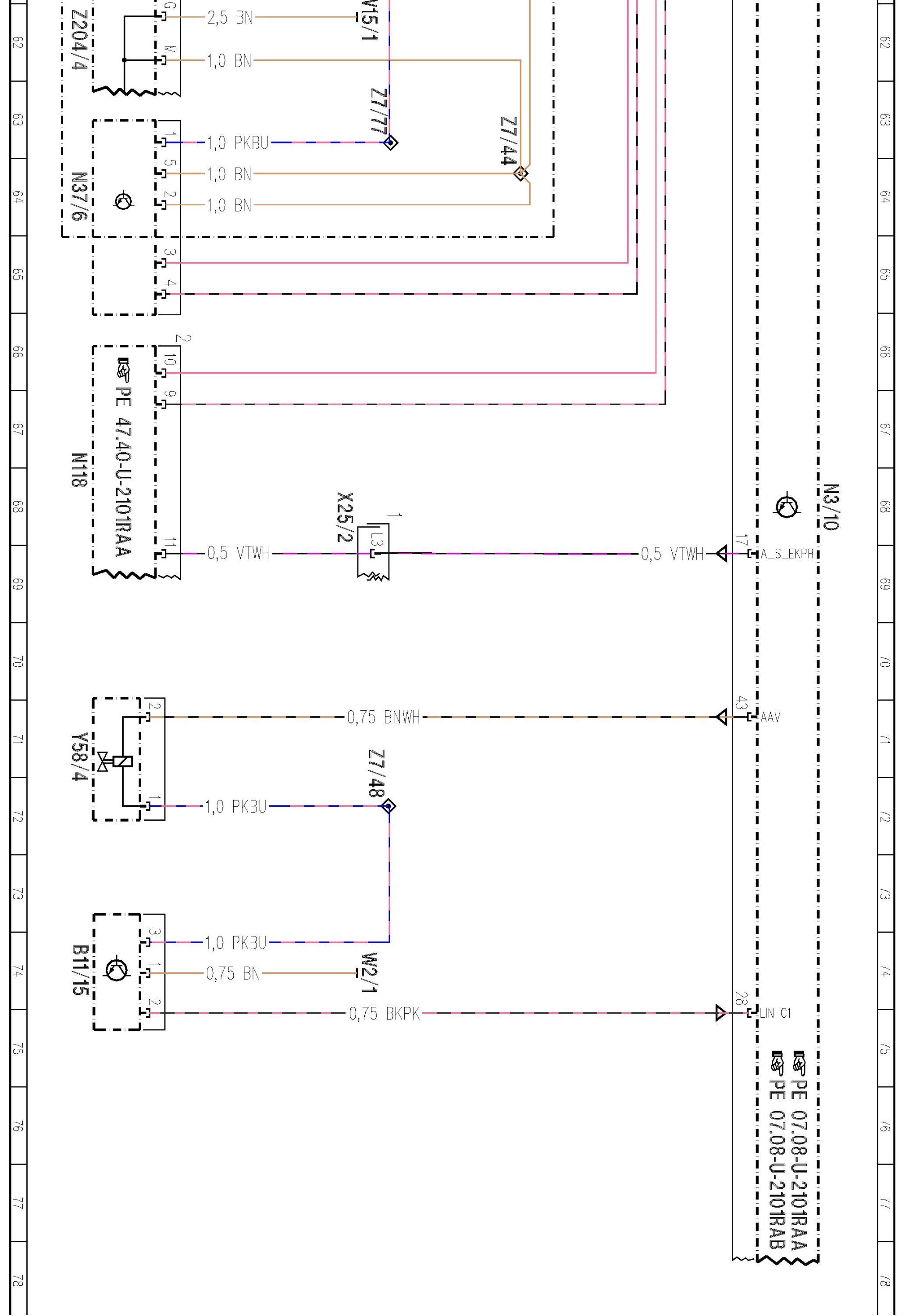

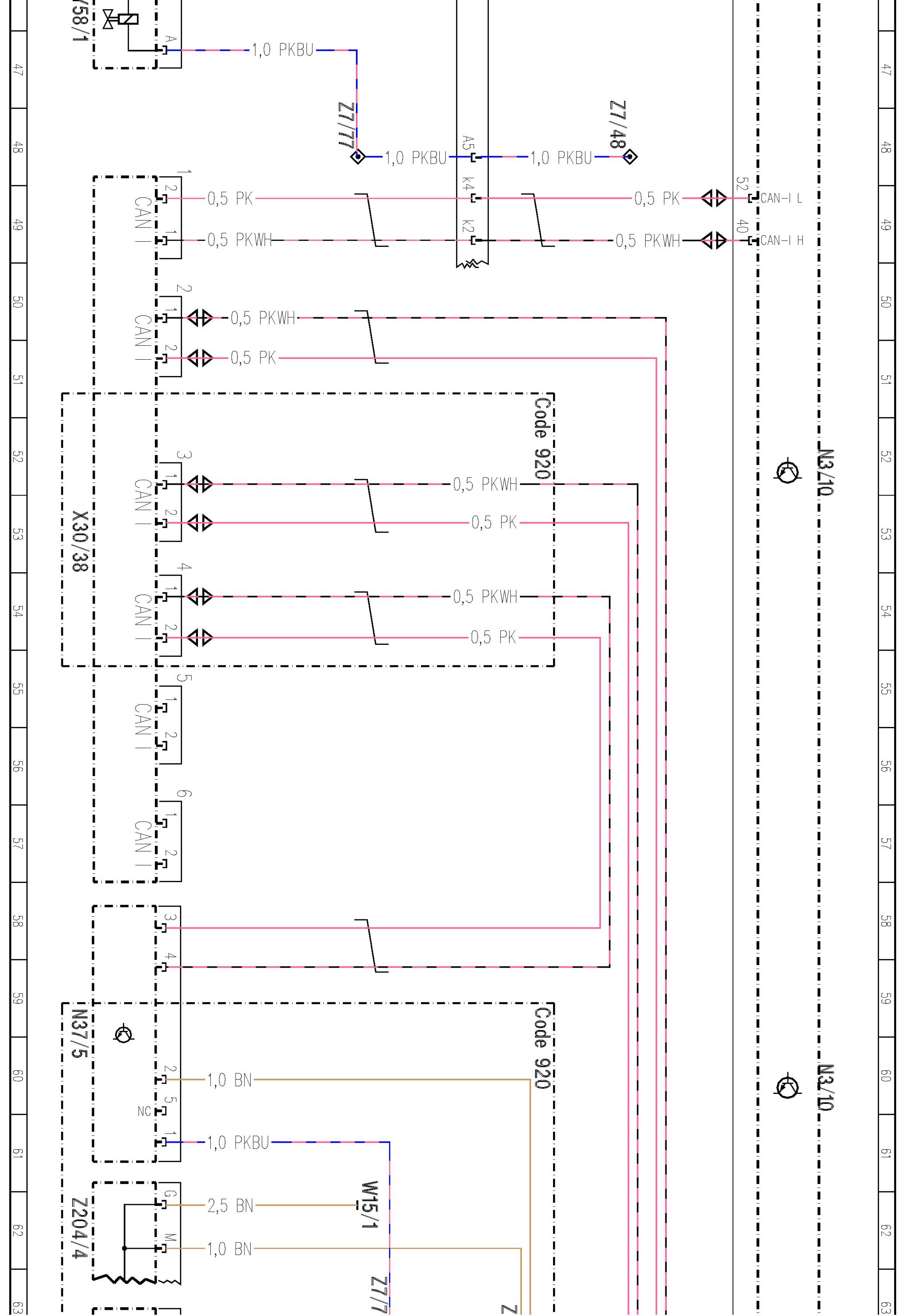

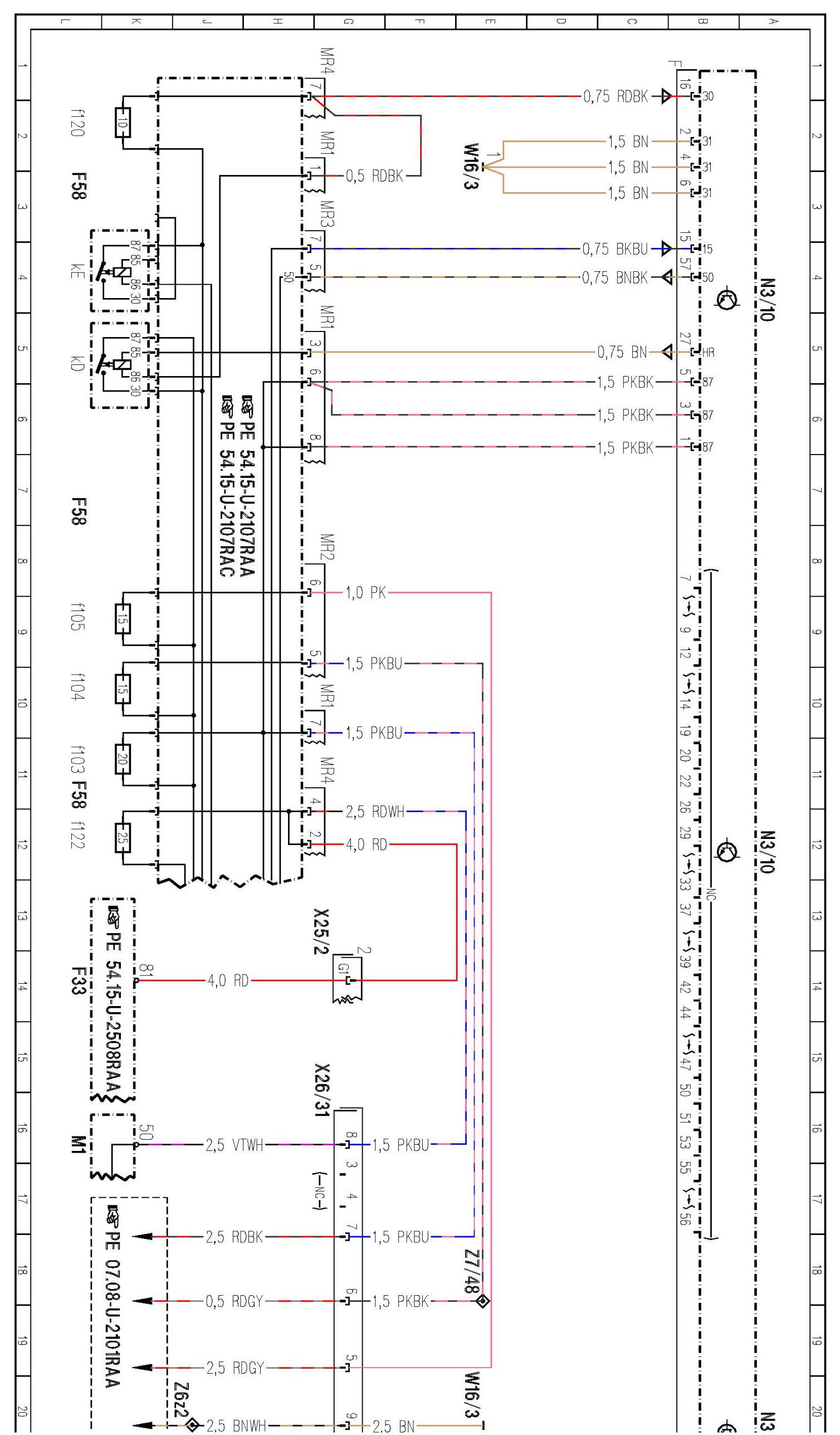

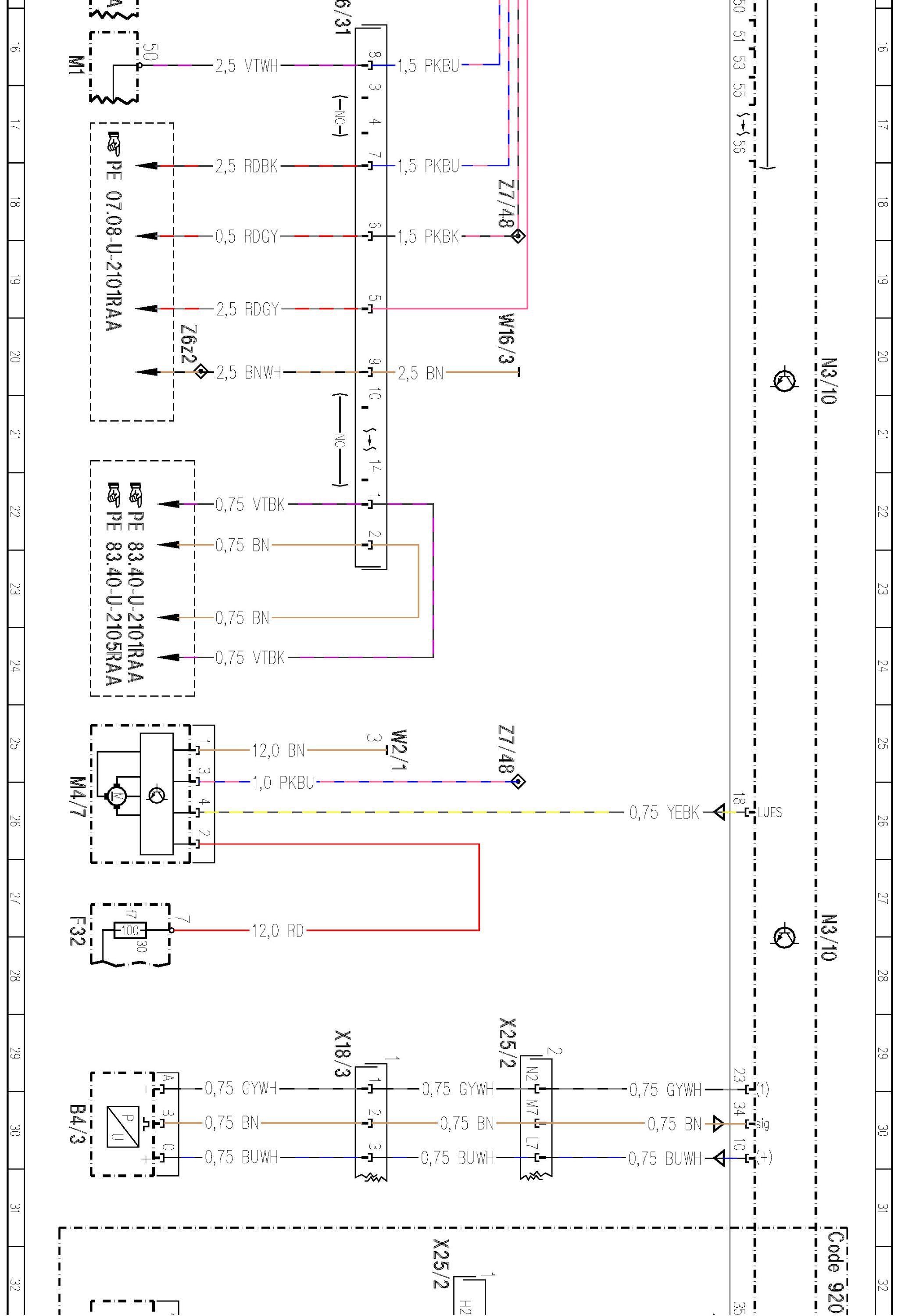

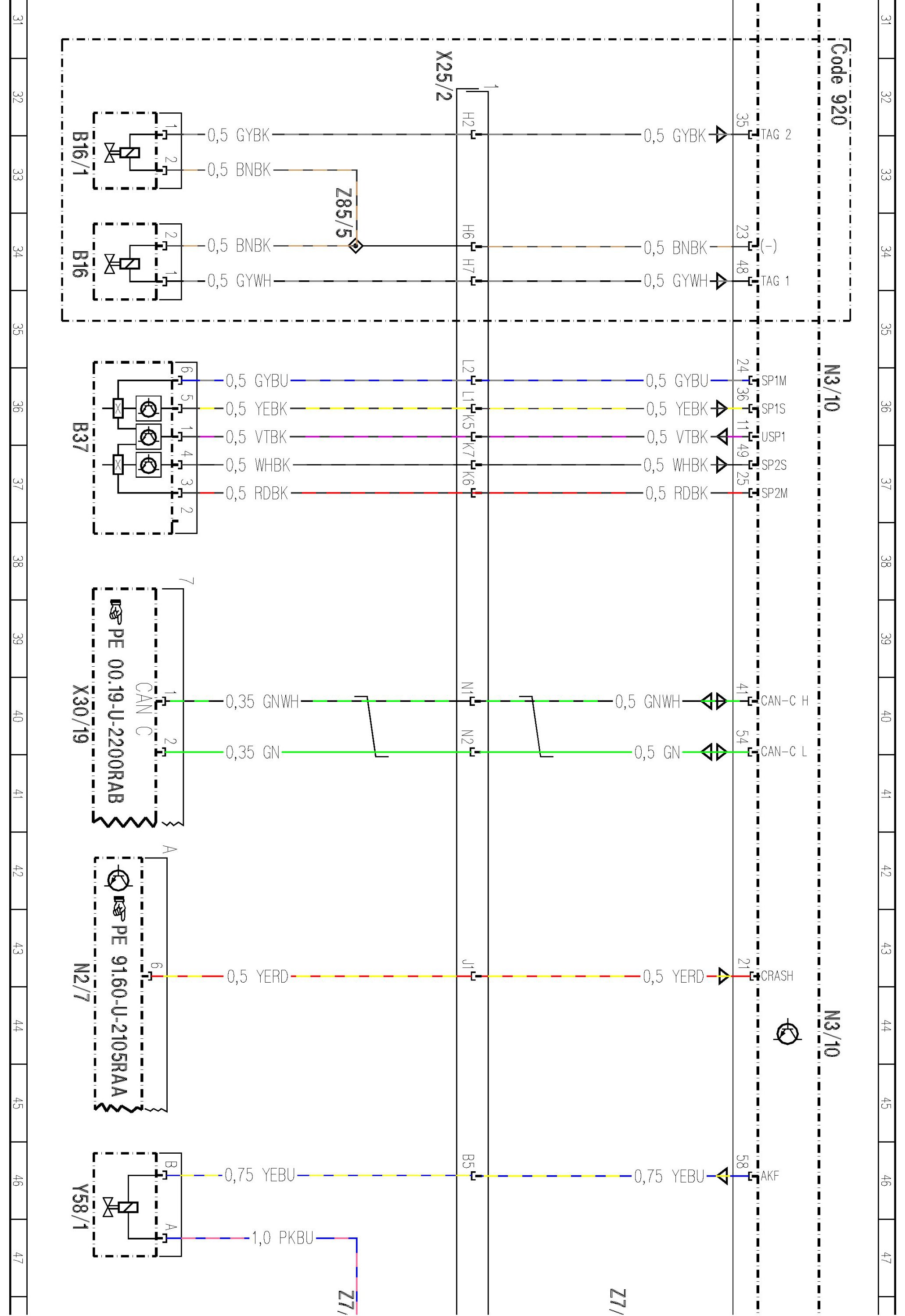

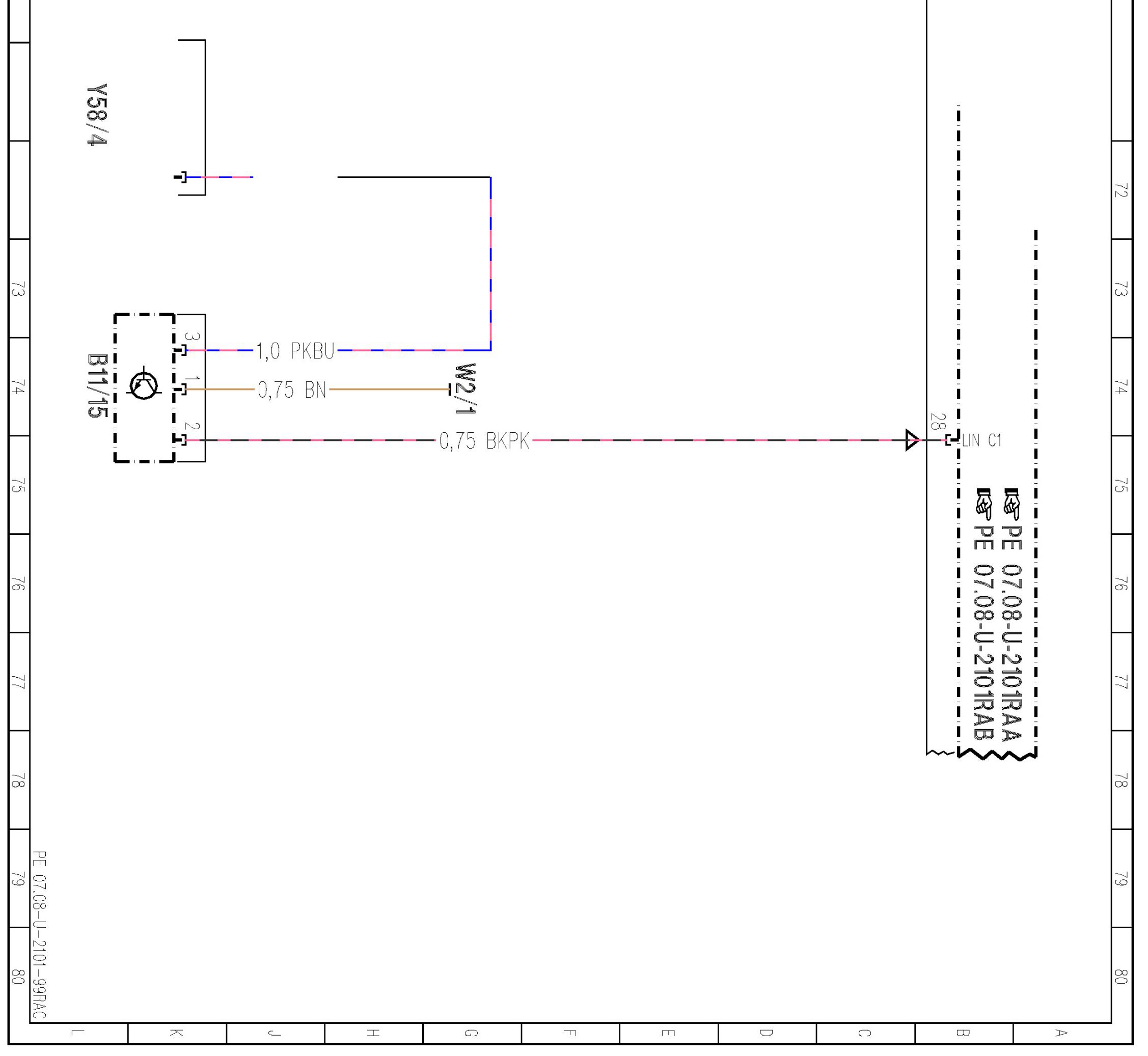

PE07.08-U-2101RAC Gasoline Direct Injection System Control Unit

PE07.08-U-2101RAC Gasoline Direct Injection System Control Unit

ENGINE 276.958 in MODEL 251
- as of Model Year 2012

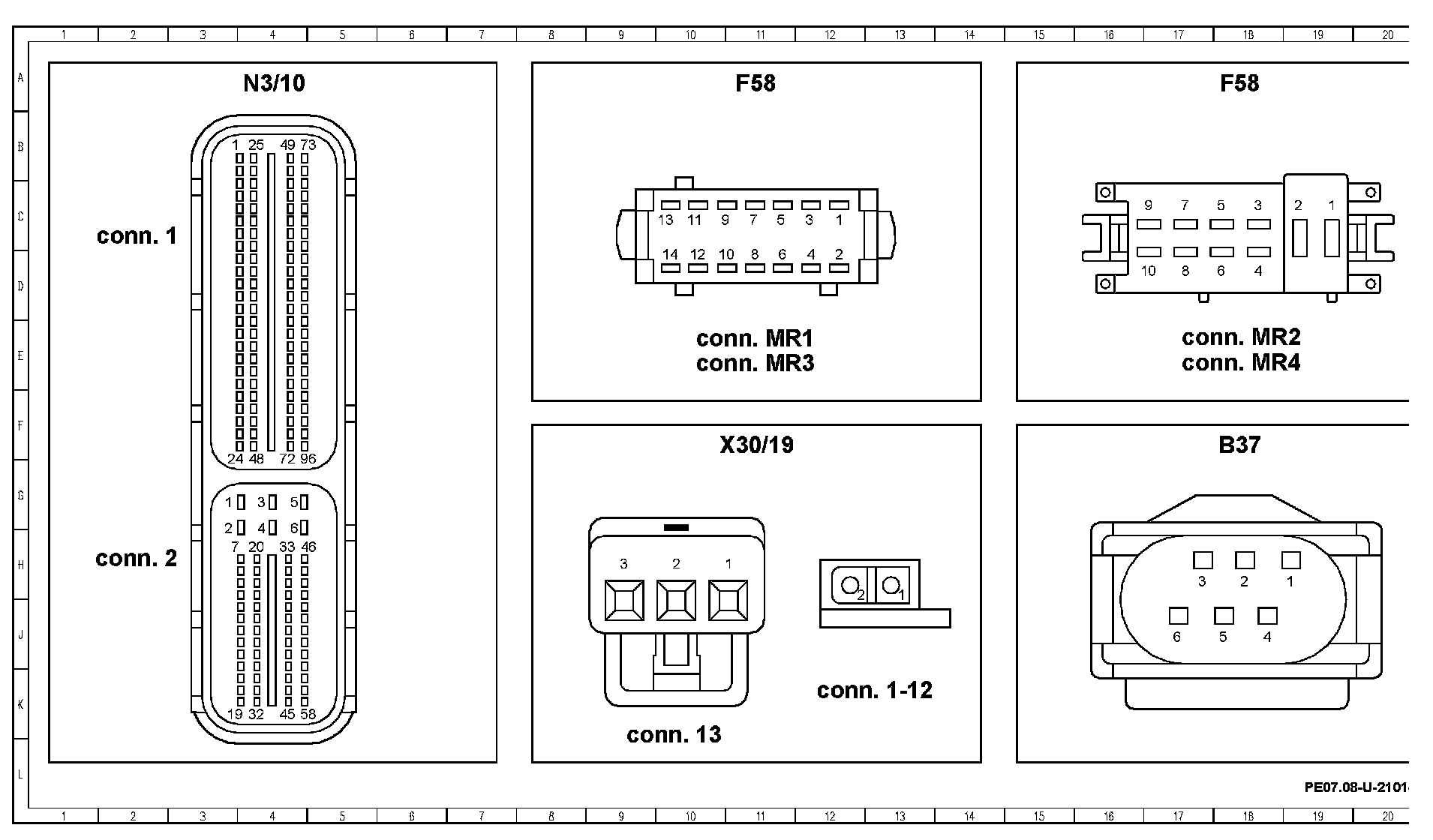

- Control unit N3/10, Vehicle connector

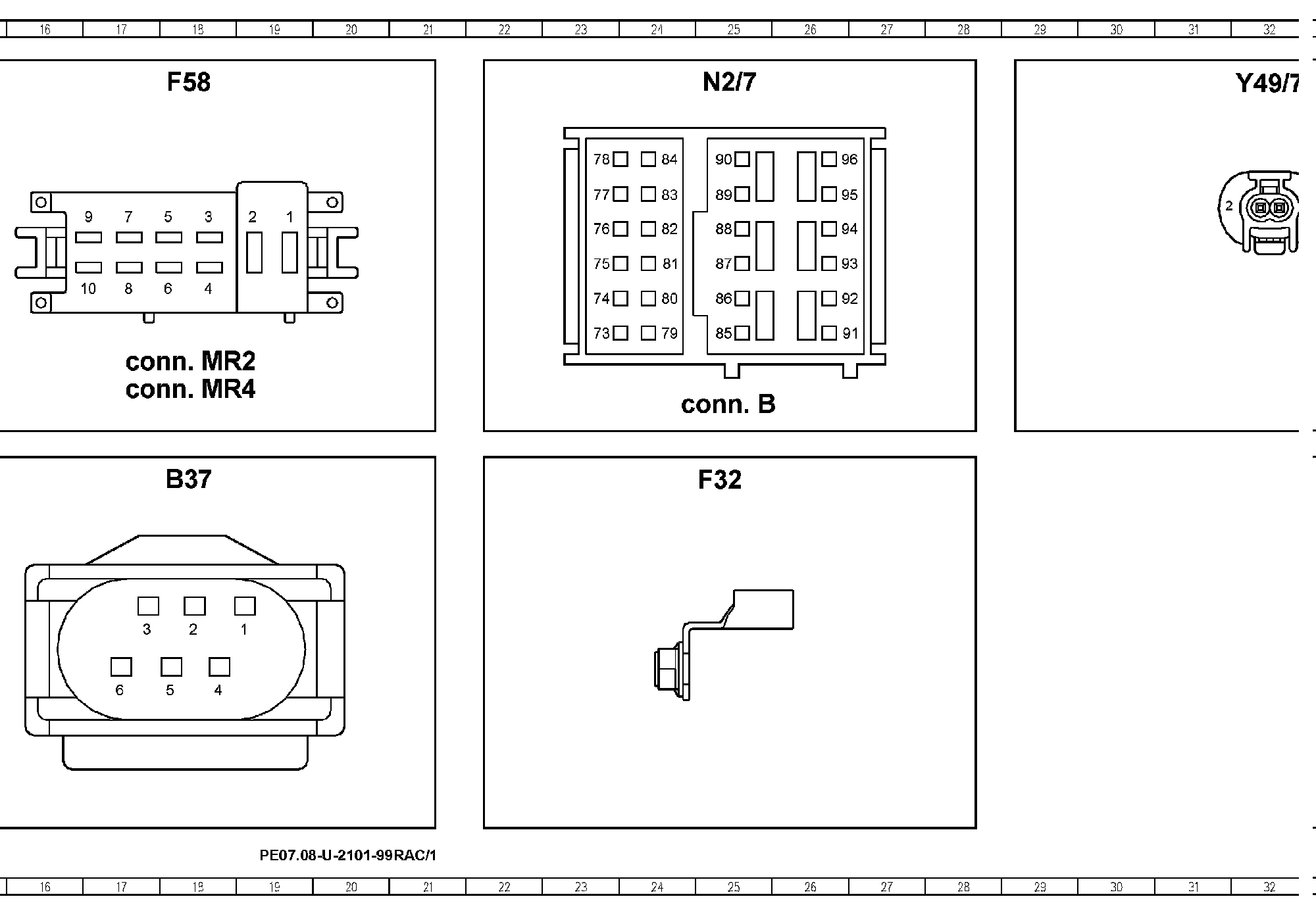

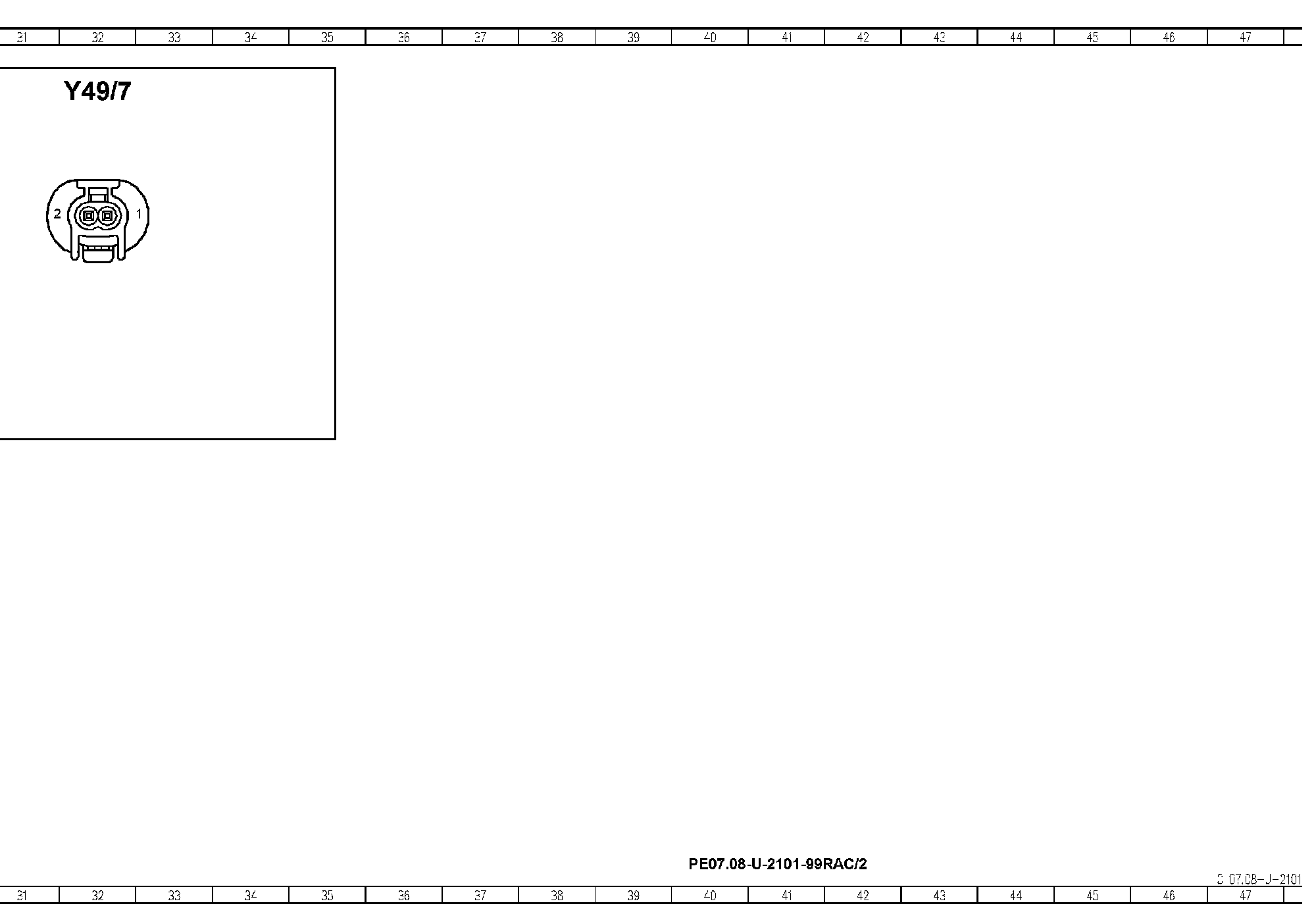

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
