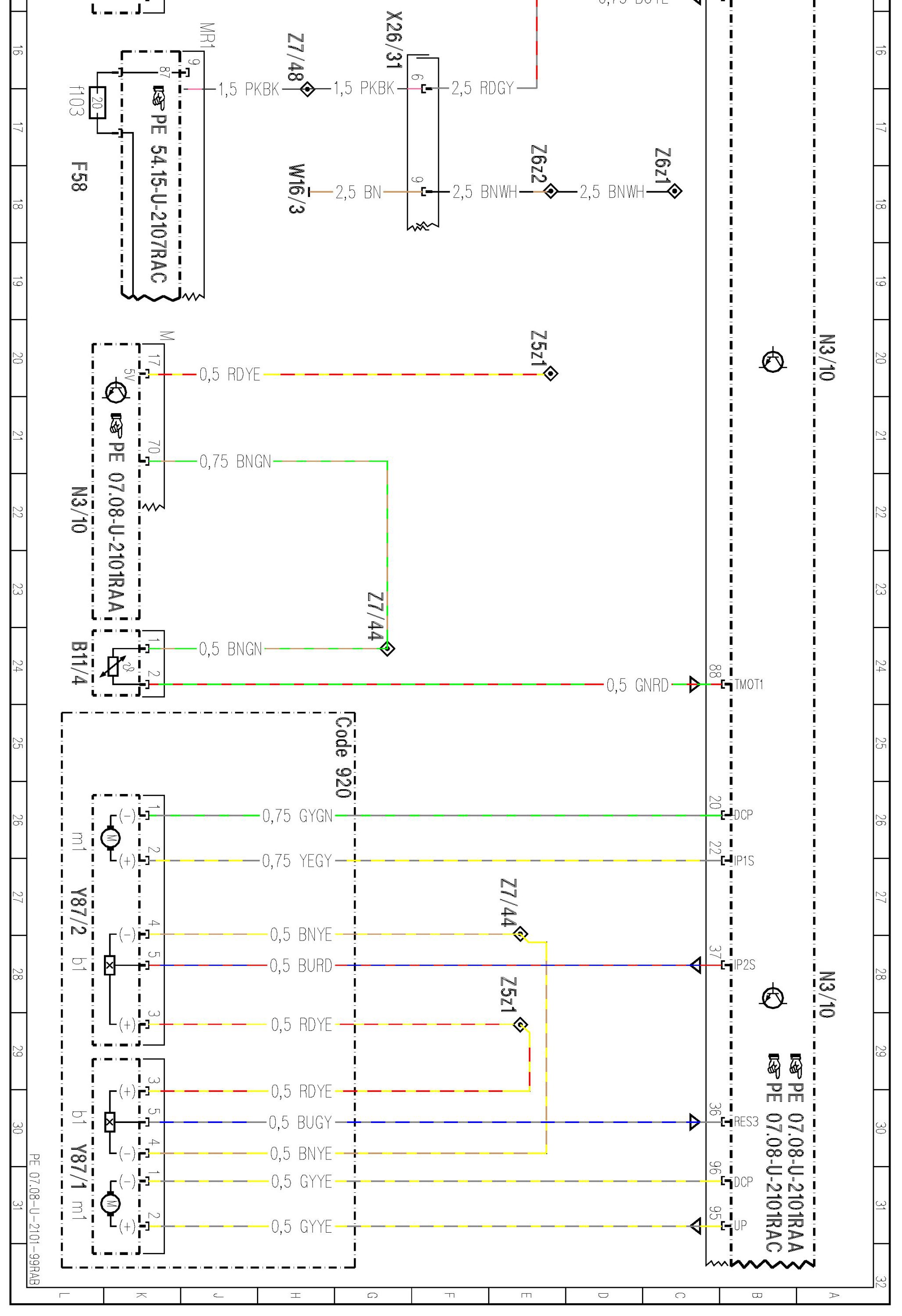

PE07.08-U-2101RAB Gasoline Direct Injection System Control Unit

PE07.08-U-2101RAB Gasoline Direct Injection System Control Unit

ENGINE 276.958 in MODEL 251
- as of Model Year 2012

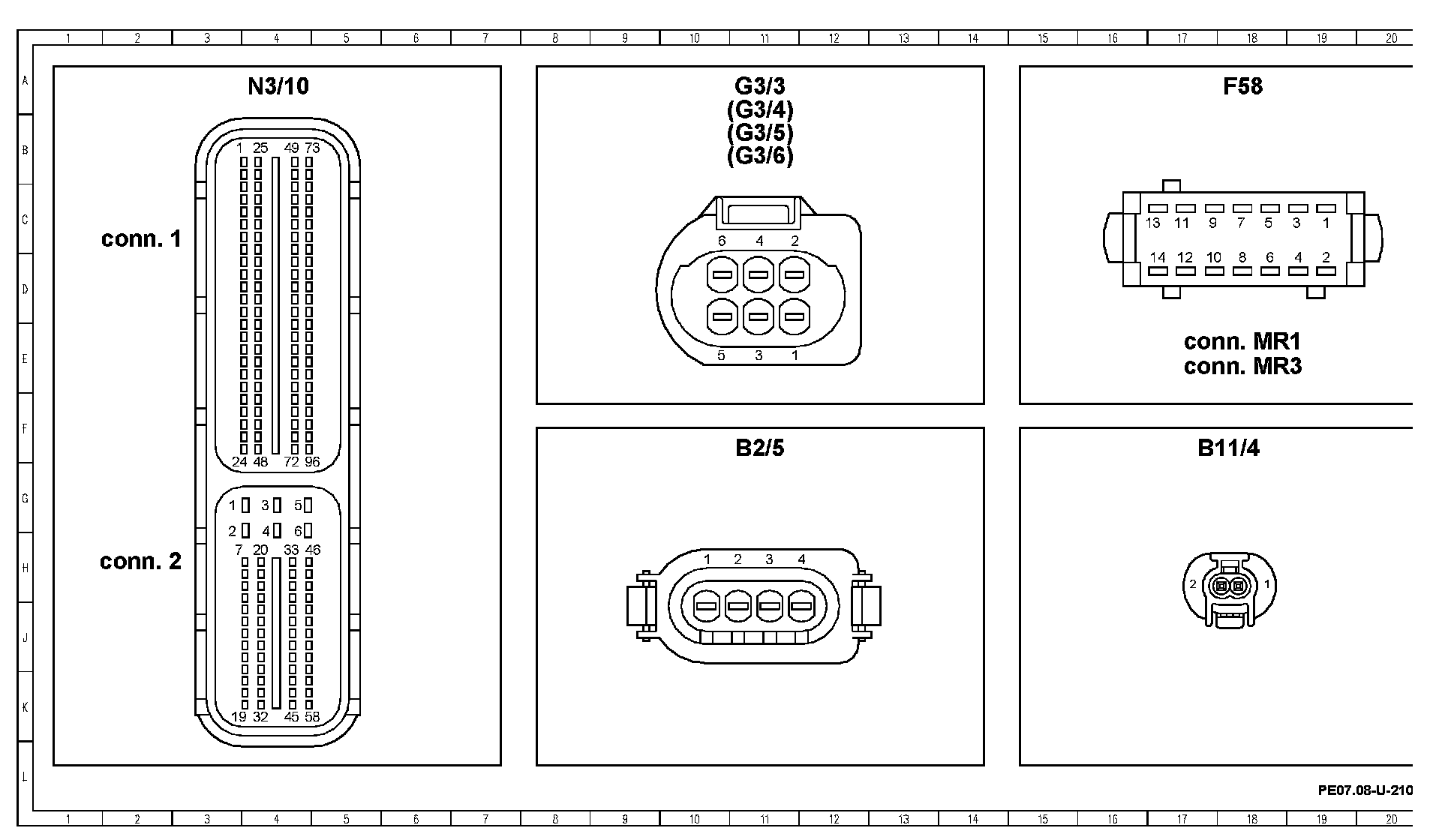

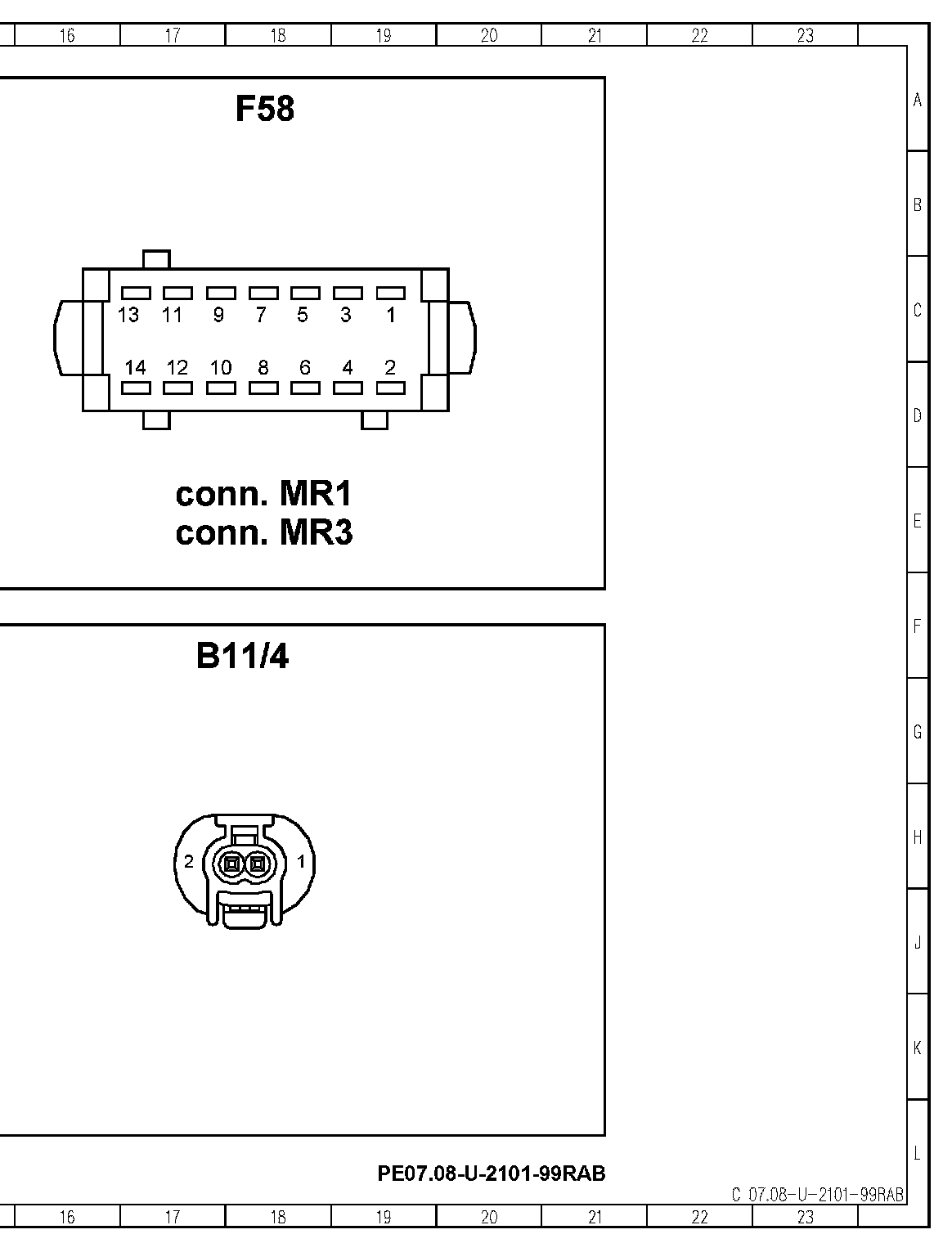

- Control unit N3/10, Engine connector, sheet 2






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
