Battery Temperature Sensor: Service and Repair

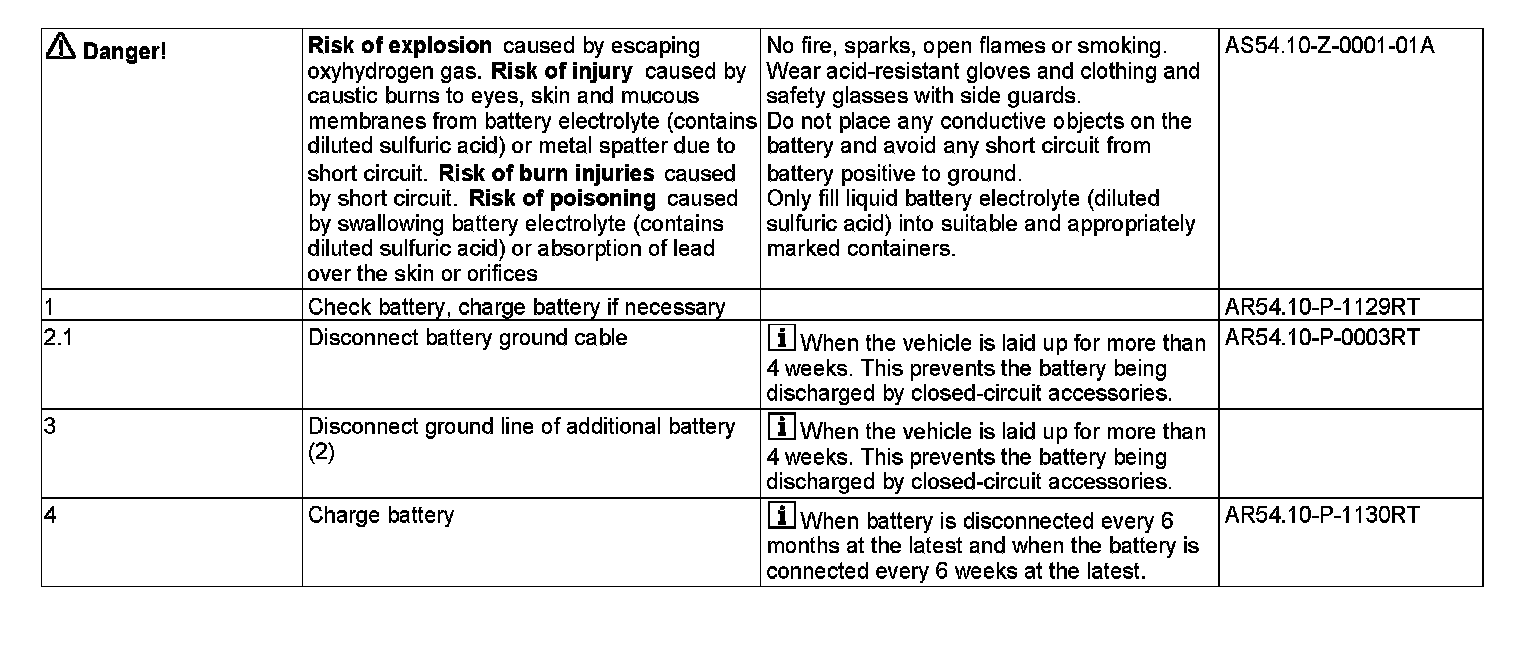

AR54.10-P-0006RT Treatment of Battery If Vehicle Taken Out of Service
MODEL 251

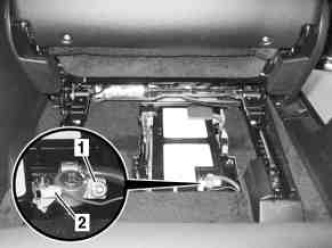

Shown on model 251
1 Battery ground cable
2 Ground line for auxiliary battery
