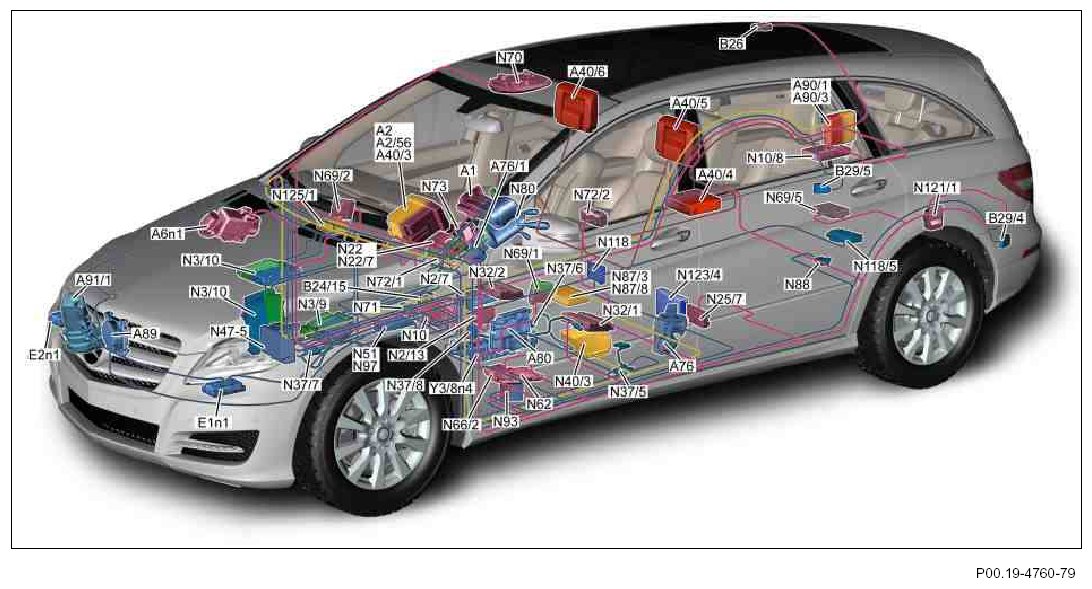

GF00.19-P-0001-01GVA Overall Network (GVN), Location of Components
GF00.19-P-0001-01GVA Overall Network (GVN), Location Of Components
Shown on model 251.1
A1 Instrument cluster
A2 Radio (with code (510) Audio 20 with CD changer or code (523) MB Audio 20 radio)
A2/56 Radio and navigation unit (with code (511) Audio 50 APS with DVD changer or with code (525) MB Audio 50 APS radio)
A6n1 STH control unit (with code (228) Stationary heater)
A40/3 COMAND operating, display and controller unit (with code (512) COMAND APS with DVD changer or code (527) COMAND APS (with navigation) or code (528) COMAND incl. DVD changer)
A40/4 DVD player (with code (864) Rear entertainment system)
A40/5 Left rear display (with code (864) Rear entertainment system)
A40/6 Right rear display (with code (864) Rear entertainment system)
A76 Left front reversible emergency tensioning retractor
A76/1 Right front reversible emergency tensioning retractor
A80 Intelligent servo module for DIRECT SELECT
A89 DTR controller unit (with code (219) Distronic (DTR))
A90/1 TV combination tuner (analog/ digital) (with code (863) Digital/analog TV tuner)
A90/3 TV digital tuner (with code (865) TV tuner)
A91/1 Electrohydraulic power steering (model 251.020/022/ 026/122/125/126 as of 1.6.09, model 251.023/025/121/123/124)
B24/15 Micromechanical yaw rate sensor AY pickup
B26 Electronic compass (with code (245) Electronic compass
B29/4 Left rear bumper radar sensor (with code (234) Blind Spot Assist)
B29/5 Right rear bumper radar sensor (with code (234) Blind Spot Assist)
E1n1 Xenon headlamp control unit (as of 1.8.10 with code (614) Bi-xenon headlamp unit or code (618) Bi-Xenon headlamp)
E2n1 Xenon headlamp control unit (as of 1.8.10 with code (614) Bi-xenon headlamp unit or code (618) Bi- xenon headlamp)
N2/7 Restraint systems control unit
N2/13 Weight Sensing System (WSS) control unit (with code (494) USA version)
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (gasoline engine, with engine 273 located horizontally in the center, with engine 276 located vertically in the center)
N10 Front SAM control unit
N10/8 Rear SAM control unit
N22 AAC control and operating unit (without code (581) Comfort automatic air conditioning)
N22/7 Comfort AC control and operating unit (with code (581) Comfort automatic air conditioning)
N25/7 SIH control unit, seat ventilation and steering wheel heater (with code (872) Left and right rear seat heaters, code (401) Front comfort seats, incl. seat heating and seat ventilation or code (443) Steering wheel heater)
N32/1 Driver front seat adjustment control unit with memory (with code (275) Memory package (driver seat, steering column, mirrors))
N32/2 Passenger-side front seat adjustment control unit with memory (with code (242) Electrically adjustable front passenger seat with memory)
N37/5 Left NOx sensor control unit (with engine 276 with stratified operation)
N37/6 Right NOx sensor control unit (with engine 276 with stratified operation)
N37/7 NOX control unit downstream of diesel particulate filter (with code (U42) BlueTec (SCR) diesel exhaust treatment
N37/8 NOX control unit downstream of SCR catalytic converter (with code (U42) BlueTec (SCR) diesel exhaust treatment
N40/3 Amplifier for sound system (with code (810) Sound system)
N47-5 ESP control unit
N51 AIRMATIC with ADS control unit (with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS))
N62 PTS control unit (with code (220) PARKTRONIC)
N66/2 Reversing camera control unit (with code (218) Reversing camera and code (498) Japan version)
N69/1 Door control module front left
N69/2 Door control module front right
N69/5 KEYLESS-GO control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N71 Headlamp range adjustment control unit (up to 31.7.10 with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination)
N72/1 Upper control panel control unit
N72/2 RCP [HBF] control unit
N73 EIS [EZS] control unit
N80 Steering column module
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/8 High definition tuner control unit (with code (517) HD radio)
N88 TPM [RDK] control unit (with code (470) Tire pressure monitor (standard) or with code (475) Tire pressure monitor (Premium))
N93 Central gateway control unit
N97 Rear axle level control system control unit (with code (488) Steel/air suspension)
N118 Fuel system control unit (with engine 272, 273, 276)
N118/5 AdBlue� control unit (with code (U42) BlueTEC (SCR) diesel exhaust treatment)
N121/1 Rear-end door closing system control unit (with code (890) EASY PACK tailgate)
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
Y3/8n4 Fully integrated transmission control (VGS) control unit
